1-22 (No.MB519)

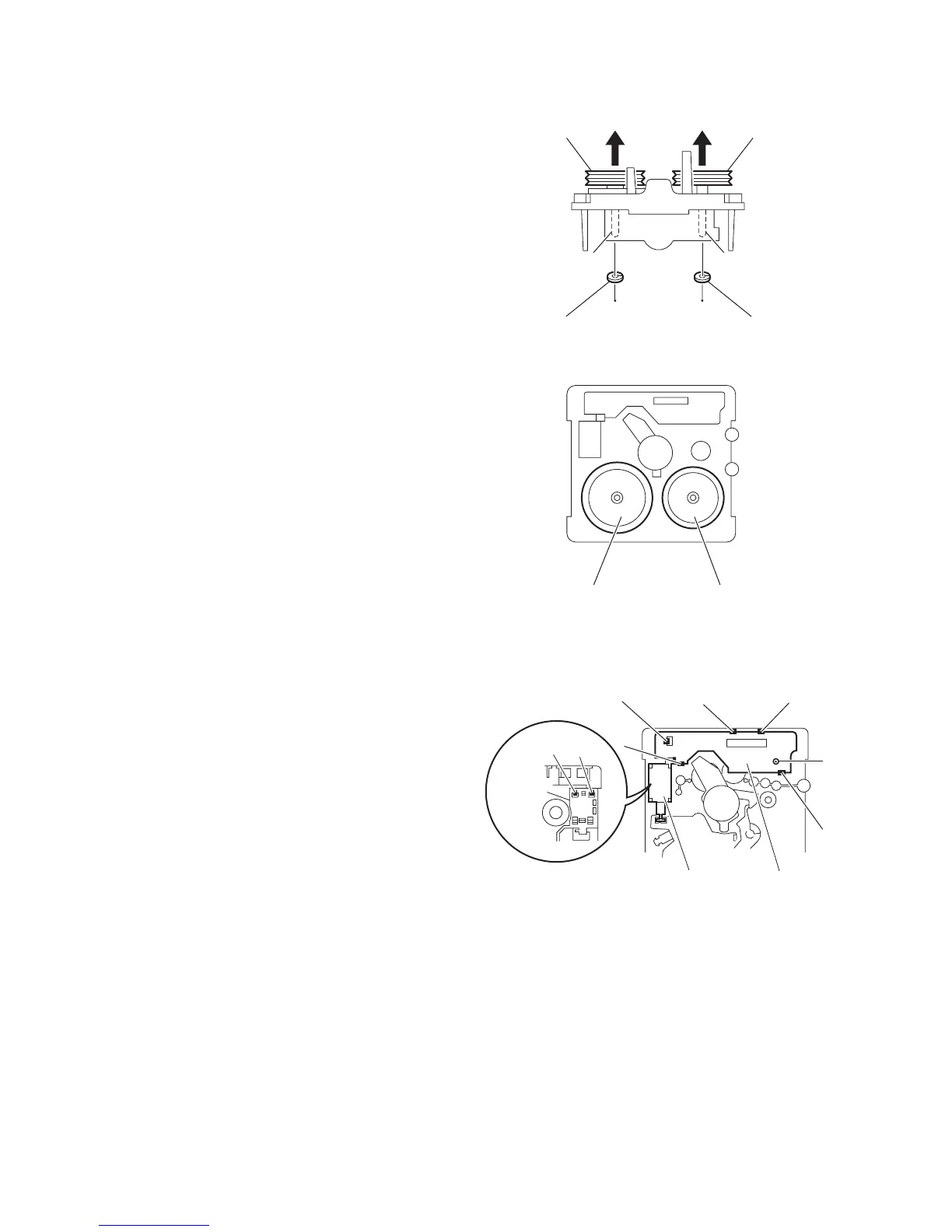

3.3.3 Removing the flywheels
(See Figs.5 and 6)
• Remove the head amplifier & mechanism control board and
D.C. motor.
(1) After turning over the cassette mechanism assembly, re-
move the slit washers (b, c) fixing the capstan shafts R and
L.
(2) Pull out the flywheel(R) and flywheel(L) respectively from
the bottom side of the cassette mechanism assembly.
Fig.5
Fig.6
3.3.4 Removing the DC solenoid and switch board
(See Fig.7)
• Remove the head amplifier & mechanism control board and
D.C. motor.
(1) Remove the screw C attaching the switch board.
(2) Remove the pawls (d, e, f, g and h) attaching the switch
board.
(3) From the top side of the cassette mechanism assembly, re-
move the pawls (i, j) attaching the DC solenoid.
Fig.7
Flywheel (L)
Slit
washer b
Slit
washer c
Capstan shaft L Capstan shaft R
Flywheel (R)
Flywheel (L) Flywheel (R)
e
d
f
g
h
Switch boardDC solenoid
j
i
DC
solenoid
C
To Next Page
