1-20 (No.YD091)
4.5 Disassembly/assembly

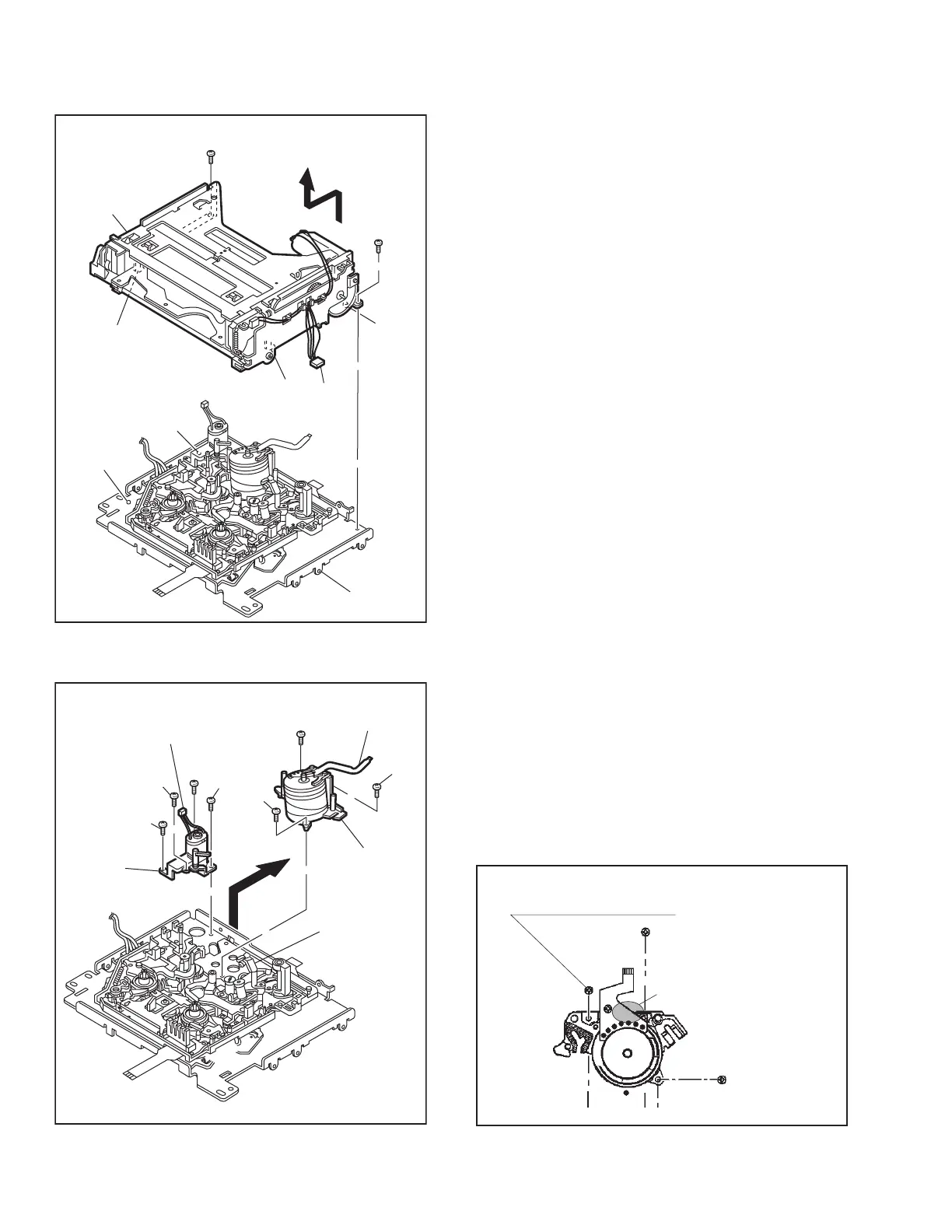

1. [A] Cassette housing assembly/ [B] Mechanism assembly
Fig.4-5-1
Note 1a:
If the wires for the cassette housing motor are connect-
ed to the circuit board, remove them before disassem-
bly.
2. [1] Drum assembly / [2] Motor bracket assembly
Fig.4-5-2
Note 2a:
If wires are connected to the circuit board, remove them
before disassembly.
Note 2b:
Be careful not to damage the drum assembly when re-
moving it.
Note 2c:
The bracket (DV) may come in the way of removal of
screw (7). Be sure to remove the bracket before pro-
ceeding to the screw removal.
Fig.4-5-2a
1
(
S1
)
2
(
S1
)
(
L2
)
(
L4
)
(
L5
)
(
L1
)
(
L3
)
<Note1a>
[
A
]
[
B
]
5
(
S2
)
3
(
S2
)
4
(
S2
)
7
(
S2
)
6
(
S2
)
9
(
S2
)
8
(
S2
)
<Note2a>
<Note2a>
<Note2c>
<Note2b>
[
2
]
[1]
[a]
[
b
]
[c]
When Handling hold this part.
Note:Fasten screw in order
of [a] [b] [c] .
