1-42 (No.YD091)
5.4 Display function of DVD section
5.4.1 Displaying SYSTEM INFO
SYSTEM INFO contains information on firmware version of the unit and the mechanism drive, and an initialize execution menu.
(1) Set the unit to the Jig RCU mode.
(2) Press DV/HDD/DVD SELECT button on the unit repeatedly so that the HDD lamp lights up on the unit.
(3) Transmit "43-8b" from the Jig RCU.
(4) SYSTEM INFORMATION menu is displayed in the screen.
(5) To move cursor in SYSTEM INFO, use the " ", " ", " ", and " " buttons of a remote control unit attached to product.
(6) To quit the SYSTEM INFO menu, transmit "43-8b" from the Jig RCU..
(7) Cancel Jig RCU mode.
NOTE:
Items other than the ones described above are not used in service work.
5.4.2 Displaying the firmware version of the main body in the user mode
The version information of the main body firmware can be displayed in the normal mode (user mode) without using the Jig mode.
The version can be checked by the user operation when it is required to check the version when there are failure inquiries from the
users.
(1) Turn the power of the main body ON.
(2) Press the “SET UP” button of the supplied remote control unit to display the setting menu screen.
(3) Move the arrow to the “INITIAL SET UP” tab, keep pressing the “STOP” button of the main body for 10 seconds in that condition.
(4) The screen changes to the display shown in the below diagram, and the firmware version of the main body is indicated.
System Info
Version Info 1
Version Info 2 NAVI Info Initialize
Application Software Version
0.12
Boot Loader Software Version
1.2/276
DVD Drive Firmware Version
J014
Region
2
CPRM Key DownLoad
Done
OK
SELECT
SELECT WITH [ ] THEN PRESS [ENTER]
PRESS [ "8b" ] TO EXIT
EXIT

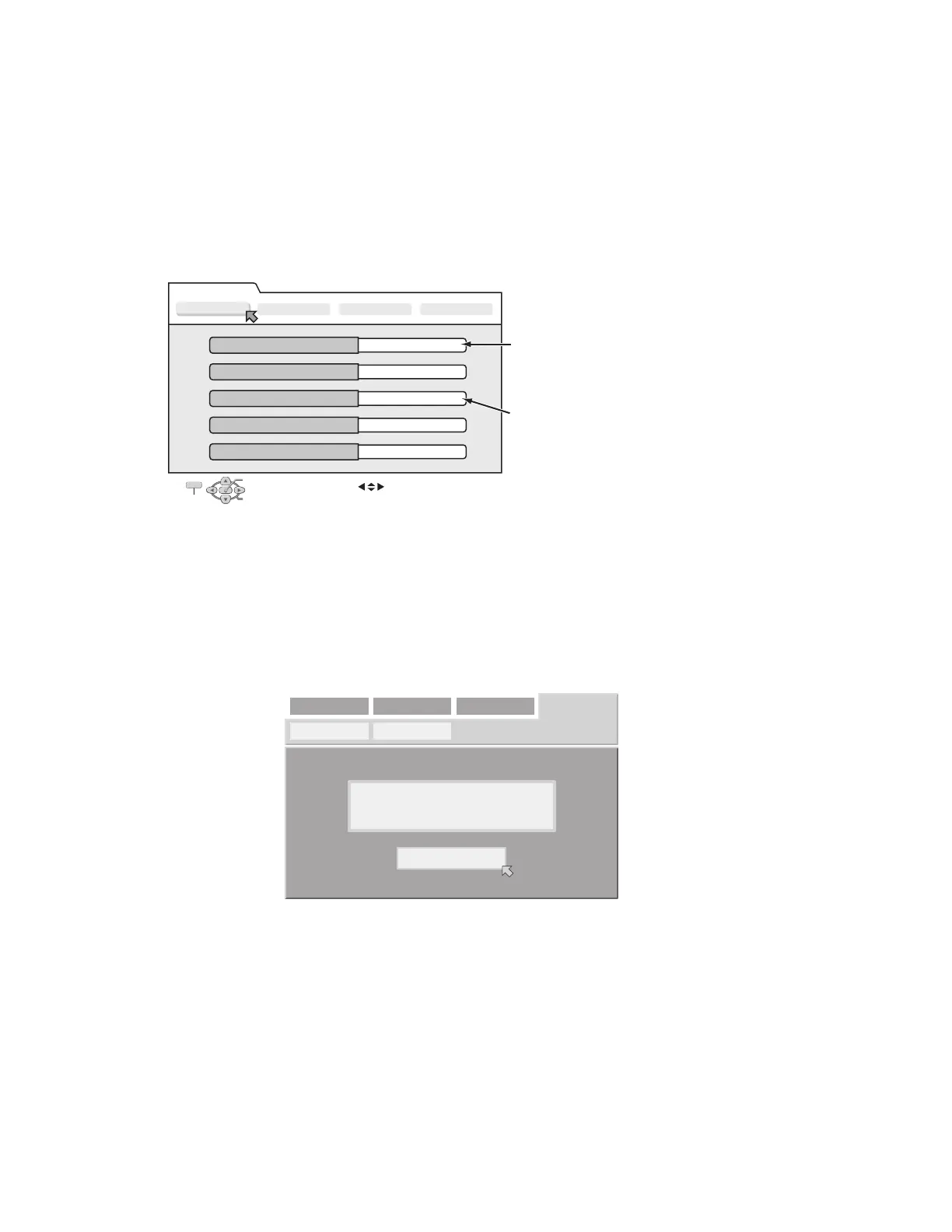

The example of a display < Version Info 1 >
Firmware version of the main body.
When the firmware of the main body is updated,
this part is changed.
Firmware version of the drive unit.
When the firmware of the main body is updated,
this part is changed.
INITIAL SET UP
VERSION : 0.11
O K
MENU BACKGROUND
CLOCK SET
DVD VIDEO SET UP
HDD/DVD SET UP
FUNCTION SET UP
To Next Page
