HOW TO REMOVE THE MAJOR PARTS <DV section>
1.6.1 Disassembly flow chart
This flowchart shows the disassembly procedure for the ex-
terior parts and electrical parts.
Basically, reverse this procedure when assembling them.
However, it is required to remove the common section parts
as far as [1] “Top cover, Bracket” and [2] “Front panel as-
sembly” in advance. (See section 1.5.)
1.6.2 Disassembly/assembly method <DV section>
<Note 1a>
With due regard to operational considerations, remove the
parts located on the Base(DV) (i.e. DV Mechanism assem-
bly, DV MDA board assembly etc.) together before remov-
ing the major parts.
<Note 2a>
Take care not to scratch or damage the drum assembly
by the cleaner assembly when performing work.
<Note 2b>
Take care not to damage the board assembly when de-
taching parts.
<Note 2c>
• When attaching the FPC, be sure to connect it in the cor-
rect orientation.
• When removing or attaching the WIRE/FPC, refer to "1.7
CONNECTION"(page 1-8) at same time.

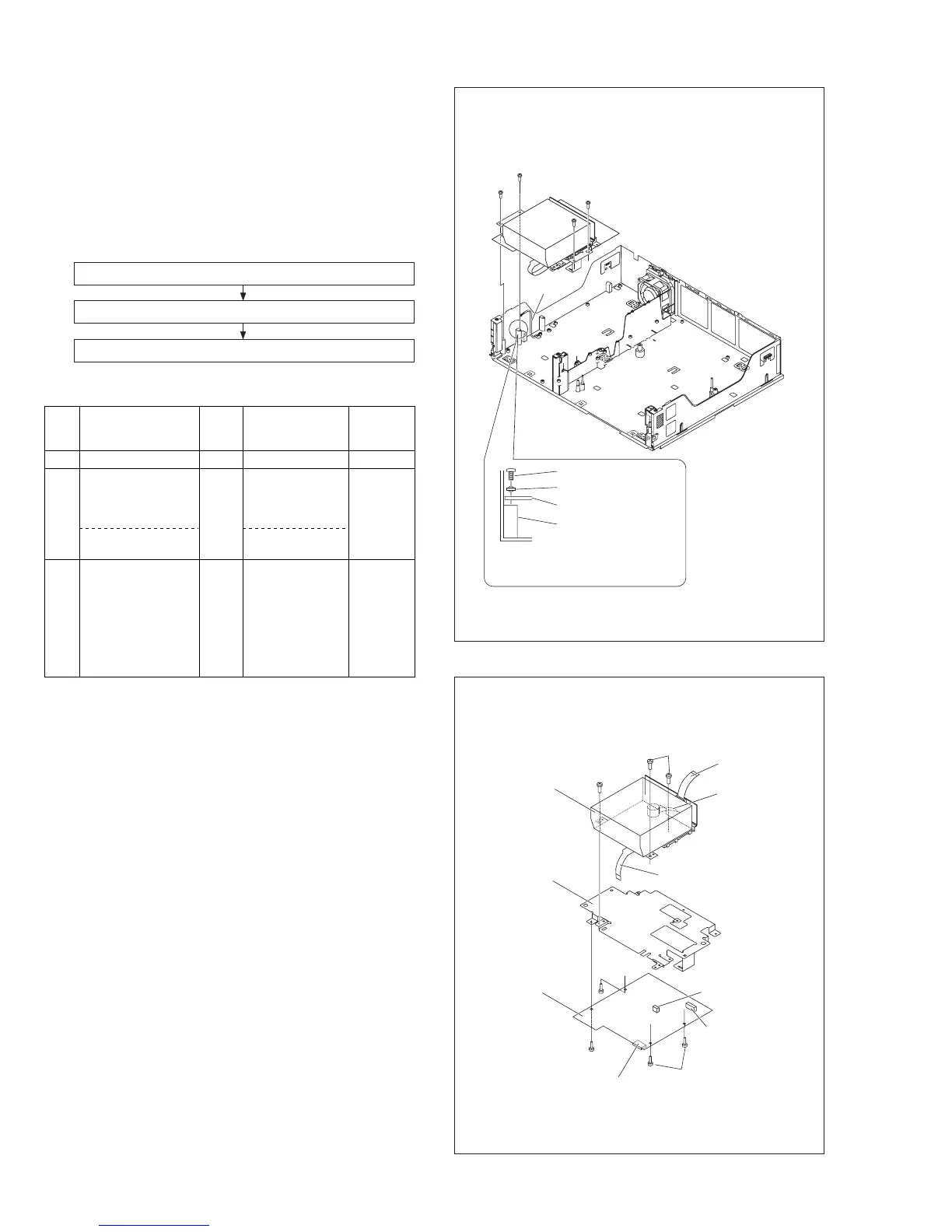

Fig. D1
Fig. D2
Step/
Loc No.
Fig. No.
Point NotePart name
Base(DV)
D1 3(S9a), (S9b)
[1]
<Note 2a,
2b, 2c>
<Note 2c>
<Note 1a>
DV MDA board
assembly
D3 2(S11a), 2(S11b),
2(L11a),
CN5503(WR11a),
CN5504(WR11b),
CN5502(WR11c),
CN5505(WR11d),
CN5507(WR11e),
Bracket(MDA)
[3]
DV Mechanism
assembly
DV Main board
assembly
D2 3(S10a),
CN1502(WR10a),
CN4001(WR10b)
CN1501(WR10c)
4(S10b)
[2]
[1] Base(DV)
[2] DV Mechanisam assembly, DV Main board assembly
[3] DV MDA board assembly
(S9b)
Lug wire
Base(DV)
Bottom chassis
When reattaching (S9b), attach
in the order of the above figure.
(S9a)
(S9a)
(S9b)
(S9a)
Lug wire
CN4001
CN1502
[2] DV Main
board assembly
<Note 2b>
[1] Base(DV)
[2] Mechanism
assembly(DV)
<Note 2a>
(S10a)
(S10a)
(S10b)
(S10b)
(S10b)
(WR10a)
<Note 2c>
(WR10b)
<Note 2c>
(WR10c)
<Note 2c>
CN4001
CN1501
CN1502
To Next Page
