Getting Started

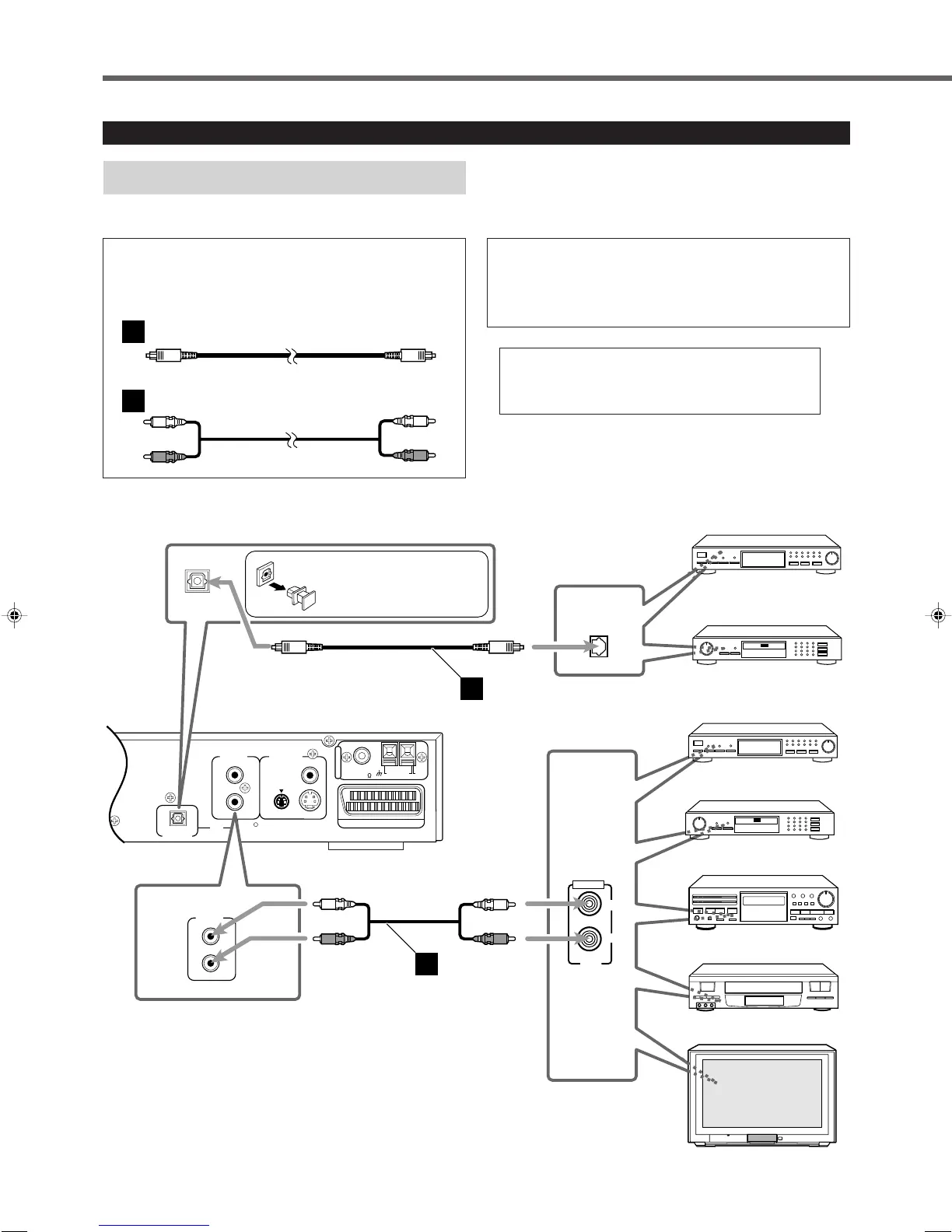

Connecting Audio/Video Component
Turn the power off to all components before connections.
ANALOG VIDEO OUT
COAXIAL
FM 75
AV
AM LOOP
AM
EXT
VIDEO
S-VIDEO
IN
L
R
OPTICAL
DIGITAL IN
AUX
A
N
T
E
N
N
A
DBS Tuner
Center unit
MD Recorder
Cassette Deck
OUT
LEFT
RIGHT
AUDIO
VCR
TV
MD Recorder
DIGITAL
OPTICAL OUT
A
B
OPTICAL
DIGITAL IN
ANALOG
IN
L
R
DBS Tuner
Before connecting an
optical digital cord, unplug
the protective plug.
Illustrations of the input/output terminals below are typical
examples.
When you connect the other component, refer also to its
manuals since the terminal name actually printed on the rear
vary among the components.
If you connect a sound-enhancing device such as a graphic
equalizer between the source component and the center
unit, the sound output through this system may be
distorted.
Connect the other component to the center unit with the
audio cord.
Use the cords supplied with the other component or
purchase them at an electric appliance store.
Optical digital cord (not supplied)
Audio cord (not supplied)
Audio Component connection
A
B
EN01-09TH-A35[B].pm6 03.1.20, 11:25 AM8

JVC TH-A35 Specifications

Amplifier Section

power per channel	45 watts
impedance	6 ohms
frequency	1 kHz

Subwoofer

woofer size	16 cm
sustained power capacity	100 W
impedance	10 Ω

Audio Section

weight	4.8 kg
frequency range	25 Hz to 200 Hz
dimensions	202 mm × 330 mm × 341 mm

Video Section

dimensions	92 mm × 97.5 mm × 92 mm
weight	650 g
frequency range	90 Hz to 20 kHz

Tuner Section

FM tuning range	87.50 MHz – 108.00 MHz
AM tuning range	522 kHz – 1 629 kHz
power supply	230 V, 50 Hz
