5
AC IN
SUBWOOFER
CENTER
SPEAKER
REAR
SPEAKERS
RIGHT LEFT
FRONT
SPEAKERS
RIGHT LEFT
ANALOG VIDEO OUT
COAXIAL
FM 75
AV
AM LOOP
AM
EXT
VIDEO
S-VIDEO
IN
L
R
OPTICAL
DIGITAL IN
AUX
A
N
T
E
N
N
A
COAXIAL
FM 75
AM LOOP
AM
EXT
A
N
T
E
N
N
A
132

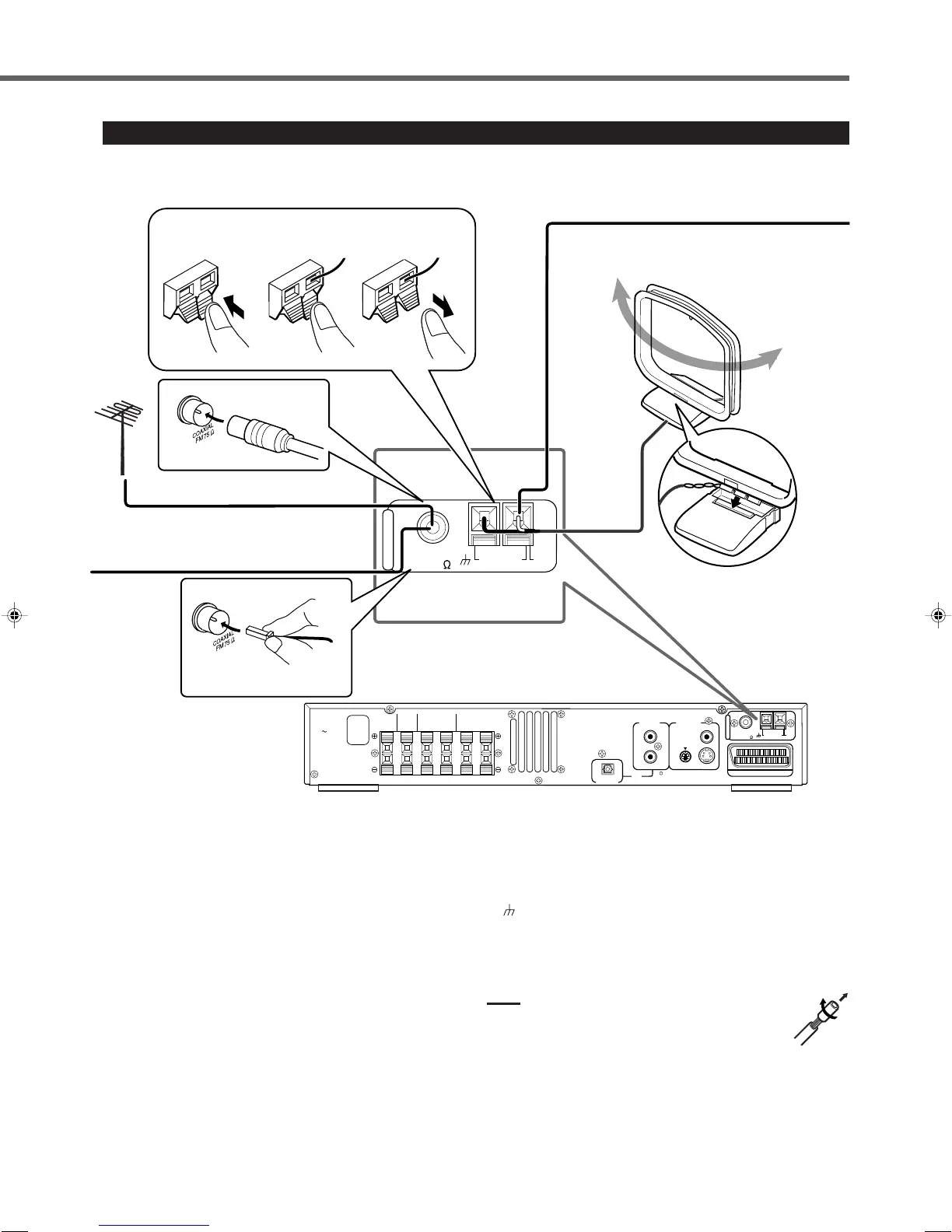

Connecting the FM and AM Antennas
FM Antenna (supplied)
If FM reception is poor, connect
outdoor FM antenna (not supplied).
AM antenna connection
Connect the supplied AM loop antenna to the AM LOOP terminals.
Connect the white cord to the AM EXT terminal, and the black cord
to terminal.
Turn the loop until you have the best reception.
• If reception is poor, connect an outdoor single vinyl-covered wire
to the AM EXT terminal. (Keep the AM loop antenna connected.)
Note:
If the AM loop antenna wire is covered with vinyl, remove
the vinyl by twisting it as shown in the diagram.
Snap the tabs on the loop into
the slots of the base to
assemble the AM loop antenna.
If AM reception is poor, connect single vinyl-covered
wire (not supplied).
AM Loop Antenna
(supplied)
FM antenna connection
Connect the supplied FM antenna to the COAXIAL FM 75 Ω
terminal as temporary measure.
Extend the supplied FM antenna horizontally.
• If reception is poor, connect an outdoor antenna (IEC or
DIN45325.) Before attaching a 75 Ω coaxial cable (with a
standard type connector), disconnect the supplied FM antenna.
Center unit
EN01-09TH-A35[B].pm6 03.1.20, 11:25 AM5

JVC TH-A35 Specifications

Amplifier Section

power per channel	45 watts
impedance	6 ohms
frequency	1 kHz

Subwoofer

woofer size	16 cm
sustained power capacity	100 W
impedance	10 Ω

Audio Section

weight	4.8 kg
frequency range	25 Hz to 200 Hz
dimensions	202 mm × 330 mm × 341 mm

Video Section

dimensions	92 mm × 97.5 mm × 92 mm
weight	650 g
frequency range	90 Hz to 20 kHz

Tuner Section

FM tuning range	87.50 MHz – 108.00 MHz
AM tuning range	522 kHz – 1 629 kHz
power supply	230 V, 50 Hz
