Detailed setting
When automatic adjustment of the white balance results in a “reddish screen”,
adjust the white balance manually.
1. Set the W.BALANCE item on the TITLE/VIDEO screen to AAWCB and
press the SET button.
The W.BALANCE ADJUST screen is displayed.

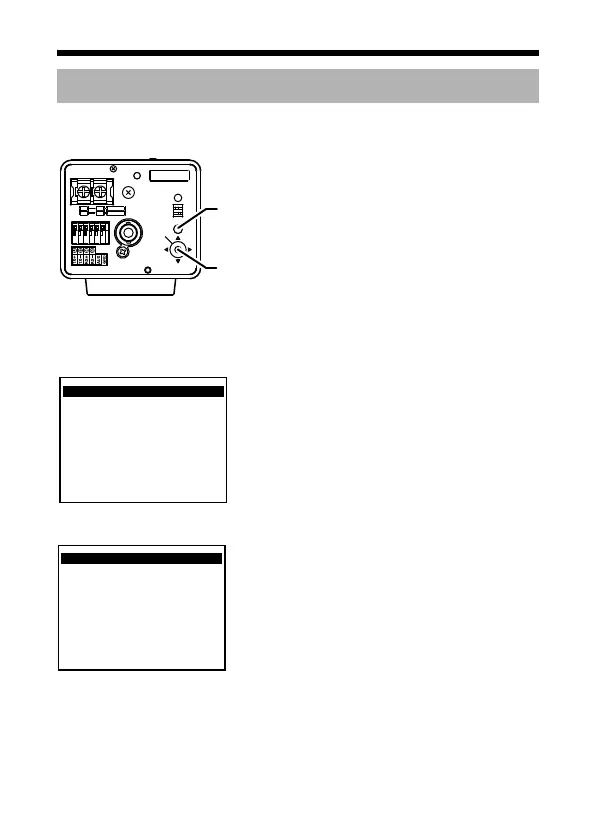

Manual adjustment of white balance
CLASS 2 ONLY(U TYPE)
ISOLATED POWER ONLY(E TYPE)
SEE INSTRUCTION
MANUAL
POWER
VIDEO OUT
SELECTOR
SET
MENU
INT LL
ONRX TERM-OFF
+
‑
1
2
DC12V d
AC24V H
MENU button
SET button and SELECTOR switch
TITLE/VIDEO SCENE Z
CAMERA TITLE EDIT..
E W. BALANCE.. AWC
SHUTTER..
GAIN..
B&W/COLOR..
BLC MODE OFF
IRIS MODE AUTO
S.E.C. OFF
<MENU>RETURN <SET>SUB MENU
W. BALANCE ADJUST SCENE Z
AWC SET..
E RGAIN 81
BGAIN 47
<MENU>RETURN
TITLE/VIDEO screen
W.BALANCE ADJUST screen
