JVC XV-SA600BK Service Manual

XV-SA600BK/XV-SA602SL
16

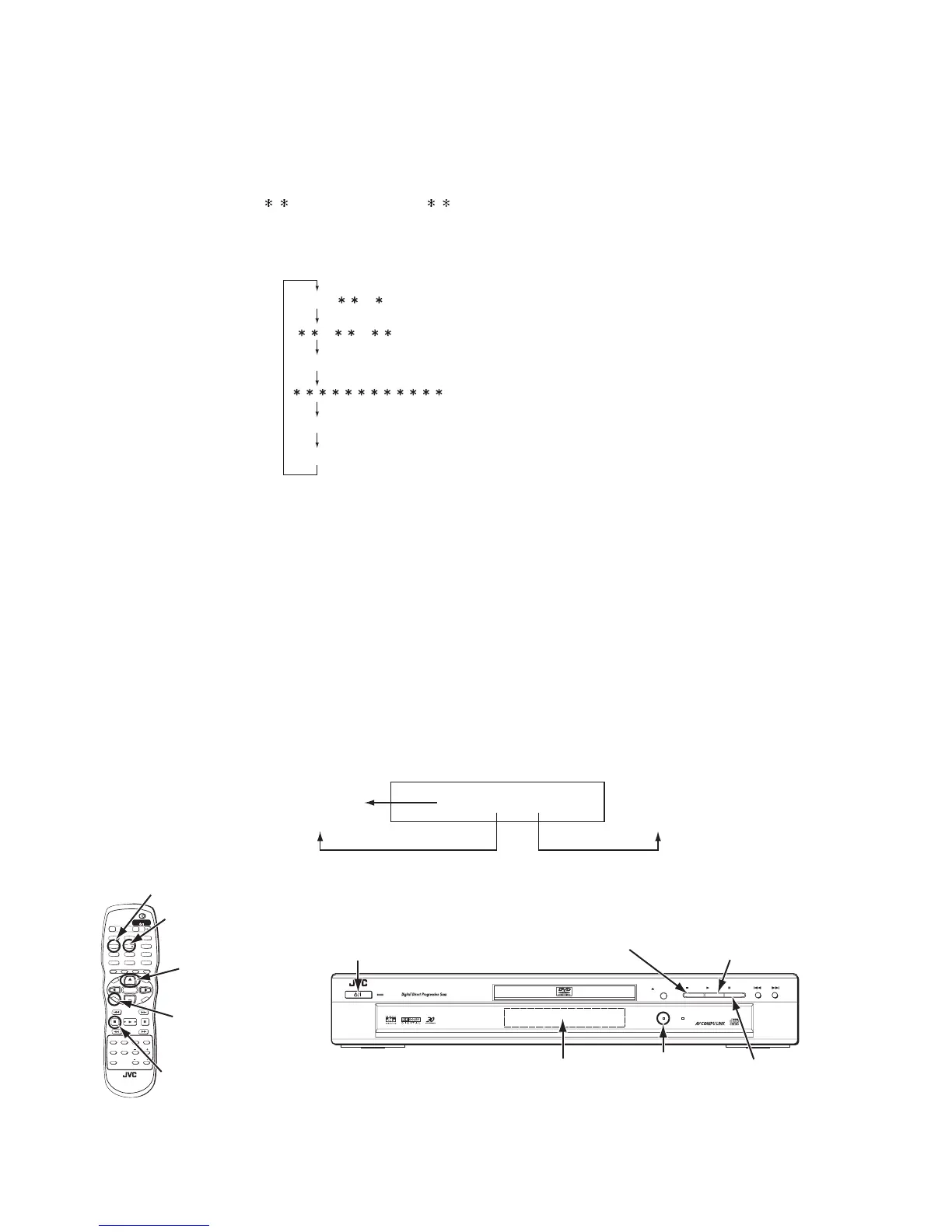

SECTION 3
Adjustment method
3.1 Test mode setting method
(1) Take out the disc and close the tray.
(2) Unplug the power plug.
(3) Insert power plug into outlet while pressing both "PLAY" key and "STOP" key of the main body.
(4) The player displays " TEST " on the FL display. " " means the player version.
(5) When the power supply is turned off, test mode is released.
The mode changes as follows whenever the "CHOICE" key of remote controller is pushed in test mode.
3.2 Initialization method
Please initialize according to the following procedures when microprocessor or pick-up is exchanged and when the
up-grade is done.
(1) Makes to test mode.
(2) "PAUSE" key of the main body is pushed.
(3) A green progressive indicator lights when about a few seconds pass. Then, it is initialization completion.
*Please make scan mode test mode in the state of interlaced scan mode.
(State of progressive indicator turning off)
3.3 Method of displaying version of microcomputer
(1) Makes to test mode and initializes
(2) When "CHOICE" key of remote controller is pushed once, the figure is displayed on the FL display as follows.
Becomes test mode
Version of microcomputer
Confirmation of FL display
Device key index
Check mode
Not use mode
TEST_ _ -----------------------
_ _ ---------------------
FL display becomes all lighting ---
---------
CHECK ---------------------------------
EXPERT --------------------------------
__41_73_65__
FL Display (example)
F
L Display microcomputer (IC2)
F
ront end microcomputer (IC401)
Decoder part (IC50
9)
STANDBY/ON
STANDBY/ON
PROGRESSIVE
PAUSEPLAYSTOP
OPEN/CLOSE
SKIP
DVD AUDIO/DVD VIDEO/SUPER VCD/VCD/CD PLAYER
DVD AUDIO
POWER key
STOP key
(for test mode)
PLAY key
(for test mode and jitter value)
PAUSE key
(for initialize)
FL Display
PROGRESSIVE
Indicator
(for initialize)
TV2
2
TV1
1
TV3
3
TV5
5
TV4
4
TV6
6
TV8
8
TV7
7
TV9
9
TV0
0
TV-/--
10
MUTING
+10
TV/VIDEO
CANCEL
TITLE/
GROUP
RETURN
VFPAUDIOSUB TITLEREPEAT
ANGLEDIGEST
3D
PHONIC
ZOOM
AMP VOL
PROGRESSIVE
SCAN
fs/Rate
RM-SXV011J
REMOTE CONTROL
OPEN/
CLOSE
TV DVD
NEXTPREVIOUS
SELECT STROBECLEAR
SLOW
- SLOW+
VOL - VOL+
CH
+
CH
-
T
O
P
M
E
N
U
M
E
N
U
O
N
S
C
R
E
E
N
C
H
O
I
C
E
ENTER
STANDBY/ON
TV DVD
PAGE
CHOICE key
(switch of mode)
4 key (laser of CD)
5 key (laser of DVD)
UP key
(for firmware upgrade)
STOP key (laser OFF)
