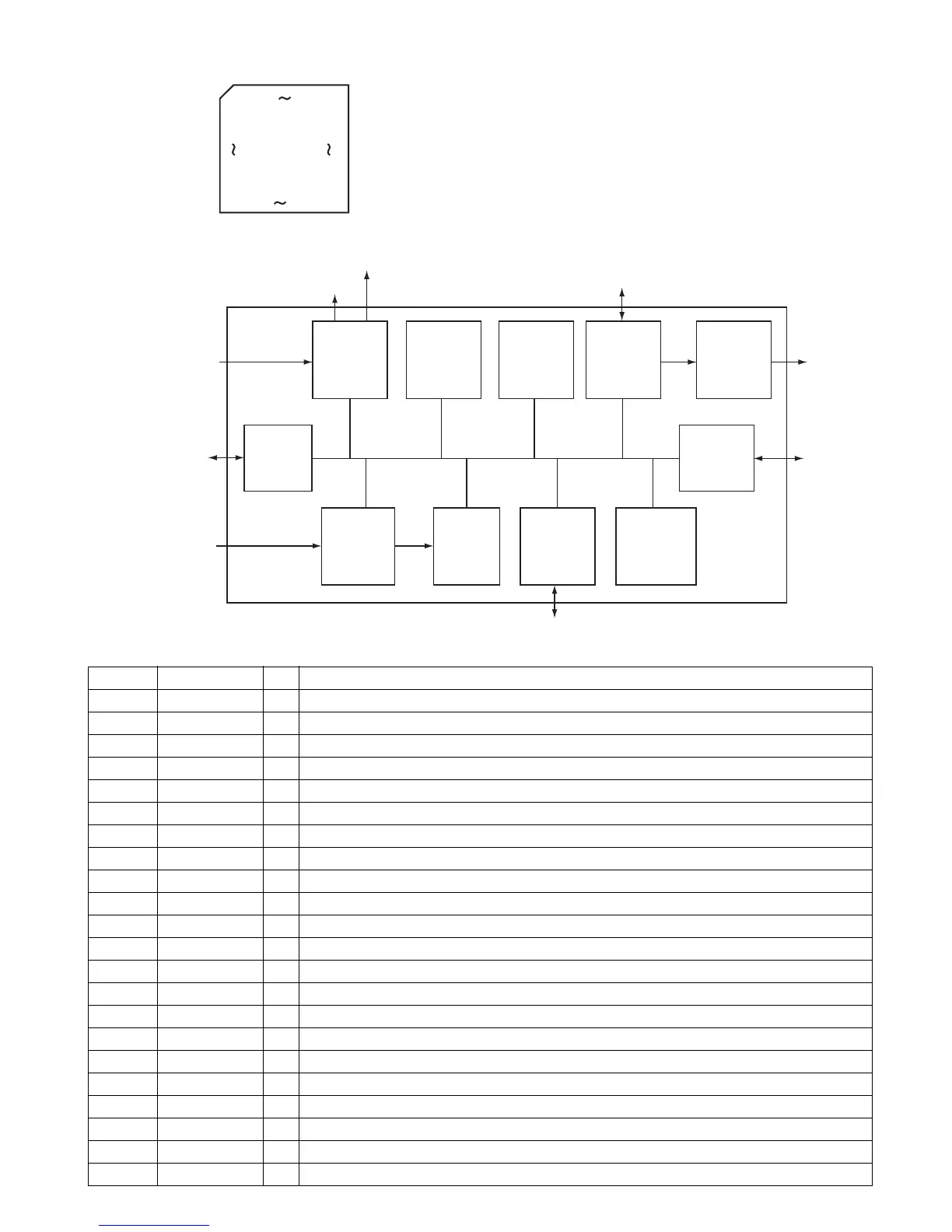

4.12 NDV8611VWA(IC501):AV Decoder
4.12.1 Pin layout
4.12.2 Block diagram
4.12.3 Pin function (1/4)
1
60
180
121
240 181
61 120
Audio
output
processor
Audio
DSP
MPEG
Video
decoder
Video
output
processor
NTSC
PAL
SCART
encoder
Serial
port
controller
XBUS
controller
DVD,A/V
port
+
CSS
Demux
engine
SDRAM
controller
RISC
uProcessor
+ cache
Vide
o
XBU
S
SDRAM
Video I/O port
audio DAC
digital audio
digital audio
serial
p
eripherals
DVD data
Pin No. Symbol Description
1 VDDio - Power supply terminal 3.3V
2,3 MD10,11 I/O SDRAM Data bus terminal
4 VDD - Power supply terminal 1.8V
5 MD12 I/O SDRAM Data bus terminal
6 VSSio - Connect to ground
7~9 MD13~15 I/O SDRAM Data bus terminal
10 VDDio - Power supply terminal 3.3V
11 DQM1 O SDRAM Data byte enable
12,13 MA9,8 O SDRAM Address bus terminal
14 VSSio - Connect to ground
15,16 MA7,6 O SDRAM Address bus terminal
17 VSS - Connect to ground
18 MA5 O SDRAM Address bus terminal
19 VDDio - Power supply terminal 3.3V
20,21 MA4,3 O SDRAM Address bus terminal
22 MCLK O SDRAM Clock output
23 VSSio - Connect to ground
24 CKE O SDRAM Clock enable output
25,26 MA2,1 O SDRAM Address bus terminal
27 VDDio - Power supply terminal 3.3V
28 MA0 O SDRAM Address bus terminal
29 MA10 O SDRAM Address bus terminal
