Configuration and Operation
Page Operating Instructions for Powador -_EN
Con guration and Operation
. Controls
The inverter has a backlit LCD as well as three status LEDs. The inverter is operated using two buttons.
1
2
3
!
ok

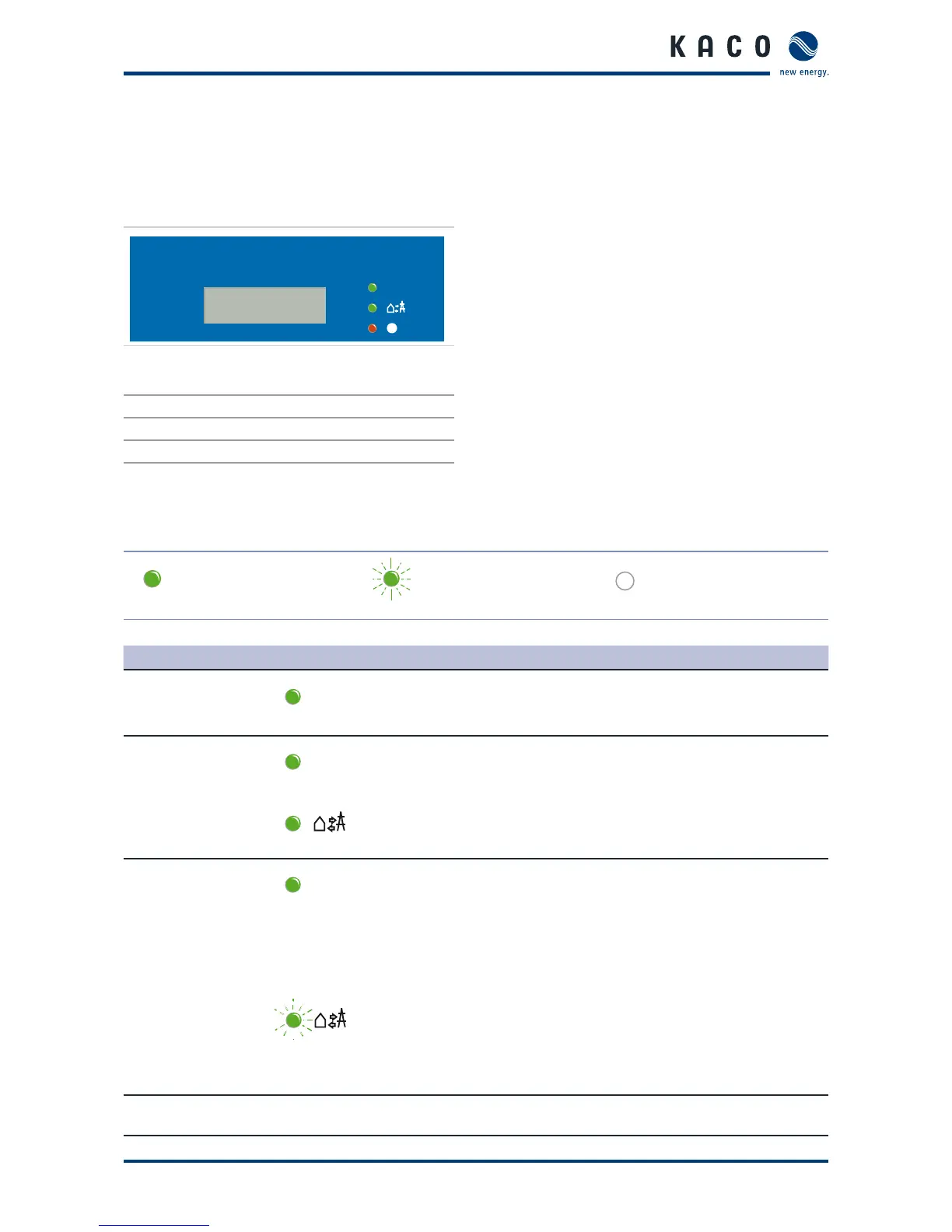

Figure : LED indicators
Key
1 “Operating” LED
2 “Feed-in” LED
3 “Fault” LED
.. LED indicators
The three LEDs on the front of the inverter show the di erent operating statuses. The LEDs can take on the following
states:
LED illuminated LED ashing LED not illuminated
The LED indicators show the following operating statuses:
Operating status LEDs Display Description
Start
ok
The green “Operating” LED is illuminated
if an AC voltage is present,
independently of the DC voltage.
Grid-feed start
ok
Power fed into the grid
or measured values
The green “Operating” LED is illuminated.
The green “Feed-in” LED is illuminated
after the country-speci c waiting period*.
The inverter is ready to feed in, i.e. is on
the grid.
You can hear the grid relay switch on.
Grid-feed start
ok
Power fed into the grid
or measured values
The green “Operating” LED is illuminated.
The green “Grid feed” LED is illuminated
after the country-speci c waiting period*.
The inverter is internally power-reduced
and ready to feed in, i.e. is on the grid. (in
accordance with the VDE Rules of Appli-
cation AR-N-4105)
Alternatives
1. Internal/external power limiting or
start-up limiting is active
2. The inverter is operating in standalone
mode
* The waiting period ensures that the generator voltage continuously remains above the power delivery limit of V.
For country-speci c waiting periods see out web site at http://kaco-newenergy.de/en/site/index.xml.
