36
7.7.1.3 Remove the driver's seat. (See Figures 7.4 or 7.5)
7.7.1.4. Remove the rear casing. (See Figure 7.7)
7.7.1.5 Remove the batteries by disconnecting them from the central relay box.
(See Figures 6.5 and 7.1)
7.7.1.6 Remove the rear casing.
7.7.1.7 Tilt down the steering column all the way. (See Figure 7.2)

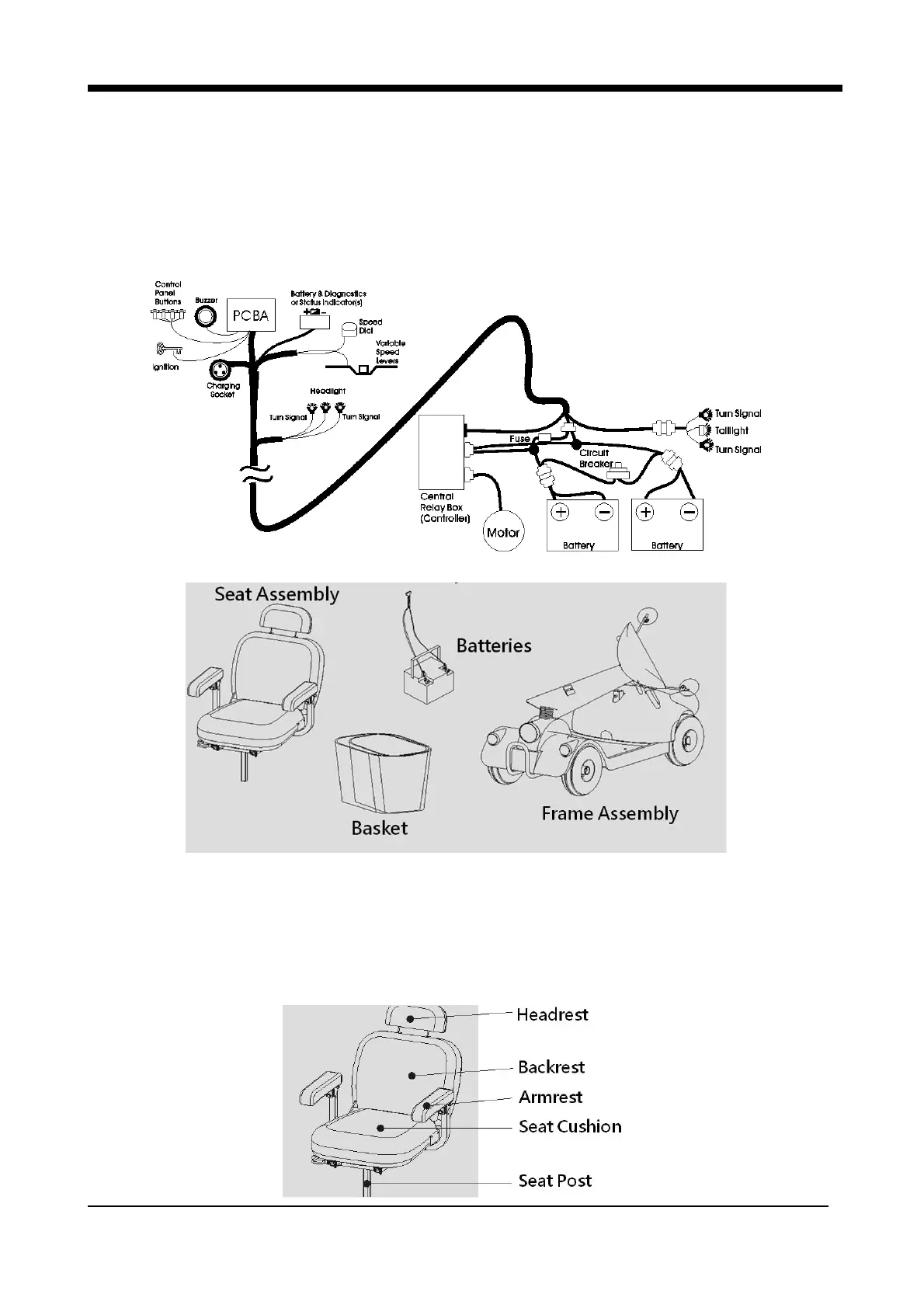

Figure 7.1
Figure 7.2
7.8 Removing/Installing the Seat
7.8.1 Please refer the components of the seat (see Figure 7.3) and follow the below
instructions
