Karma KS-7 Series User Manual

37

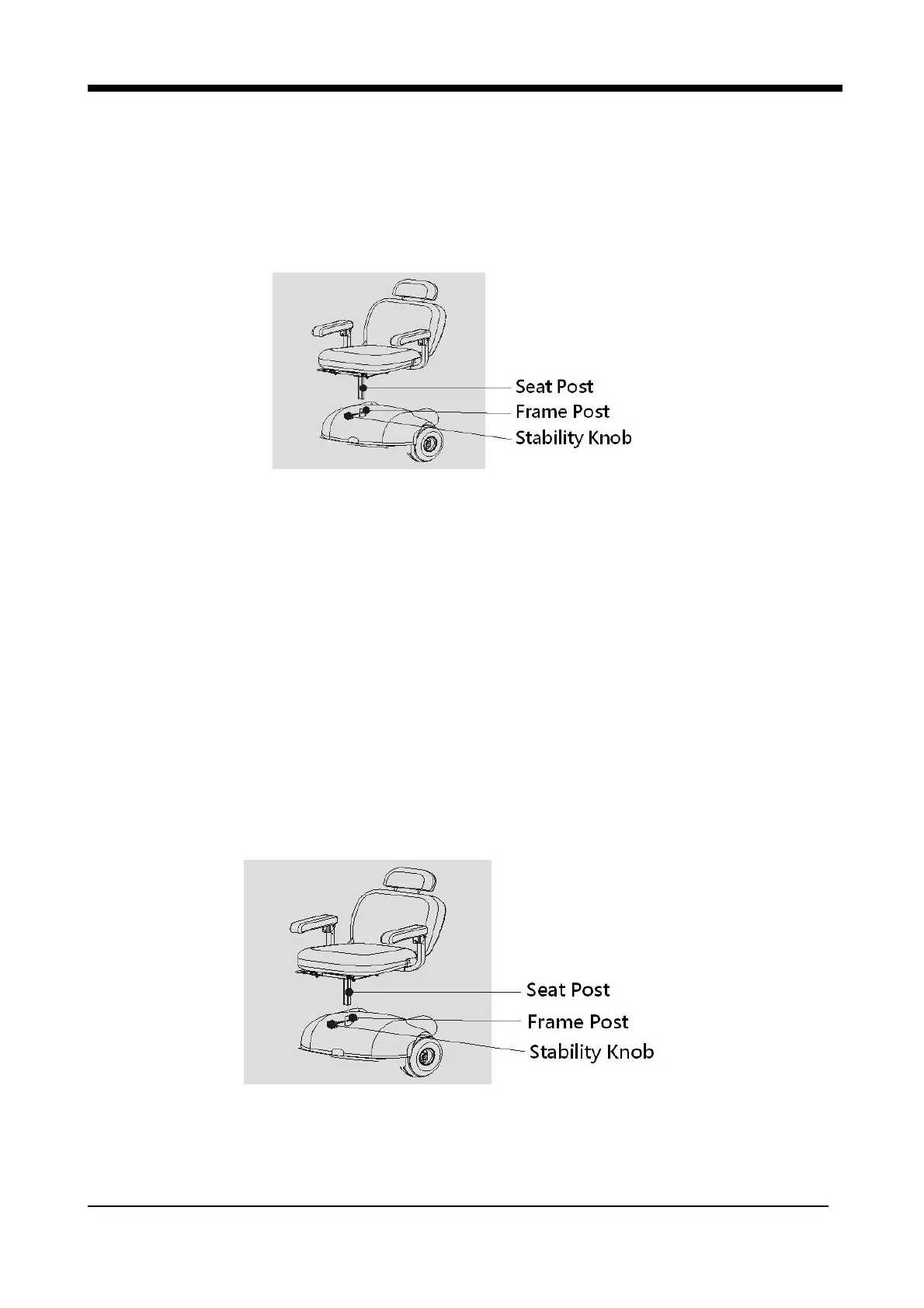

Figure 7.3
7.9 Removing the Seat
7.9.1 Lift the swivel lever all the way up.
7.9.2 Pull up on the swivel lever and seat until it detaches from the frame post. (see
Figure 7.4)
Figure 7.4
7.10 Installing the Seat (KS-737.2/ KS-747.2/ KS-731/ KS-741)
7.10.1 Position the seat post all the way into the frame post with the seat in the
forward position.
7.10.2 Reinstall the stability knob, and hand tightens until snug. If the ride is shaky,
check to see if the stability knob is tight.
7.11 Removing the Seat (KS-737.2L)
7.11.1 Lift the swivel lever all the way up.
7.11.2 Pull up on the swivel lever and seat until it detaches from the frame post.(see
Figure 7.5)
Figure 7.5
Installing the Seat (KS-737.2L)
Holding the swivel lever up, insert the seat post into the frame post. Rotate slightly
