40

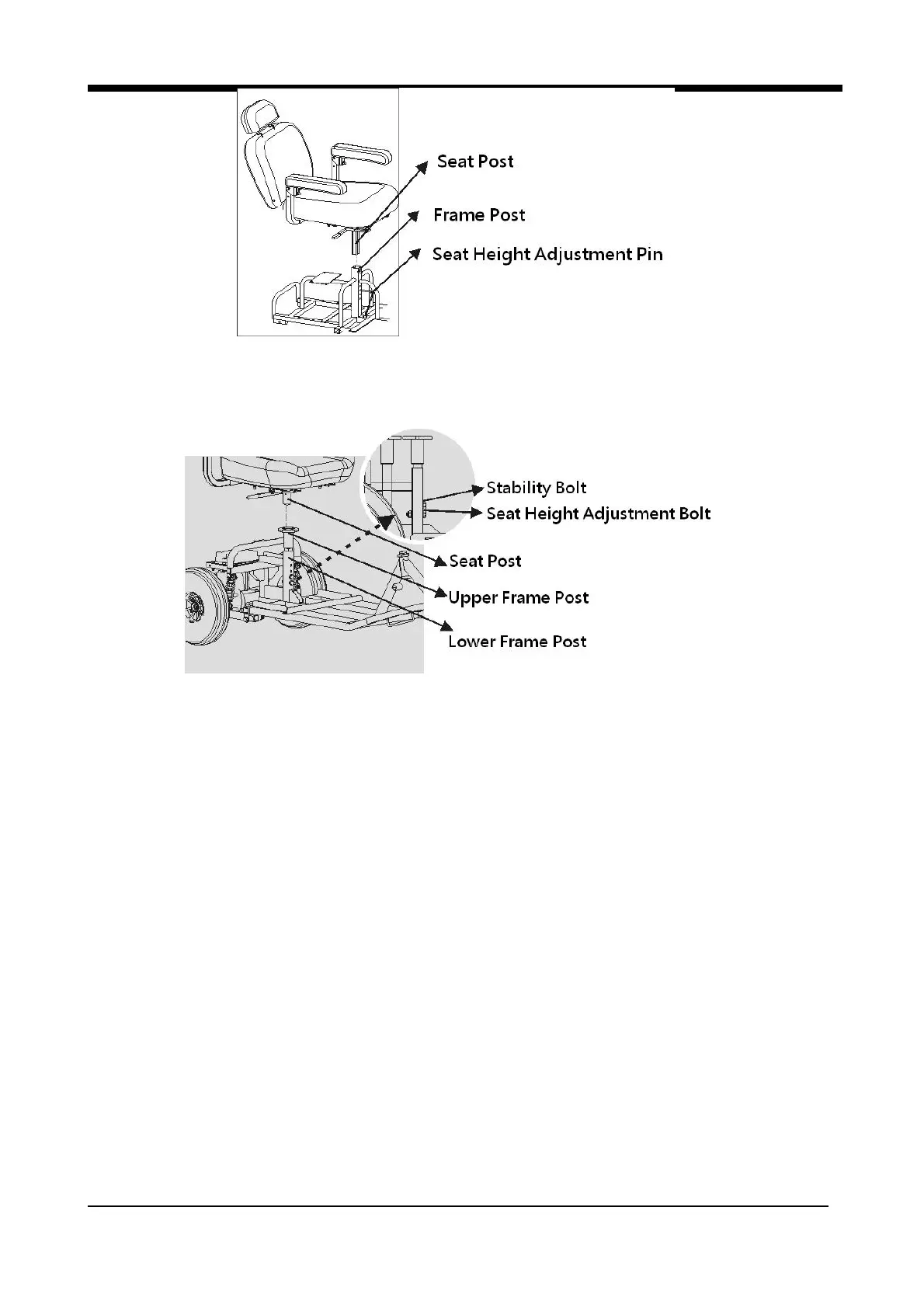

Figure 7.8
7.15 Adjusting the Seat Height (KS-737.2L)
Figure 7.9
Note: You will need two 17 mm wrenches to adjust the seat height. Your Karma
service provider would be happy to assist you in adjusting the seat height
7.15.1 The frame post is comprised of the upper and lower frame posts. The upper
frame post adjusts the height by sliding inside of the lower frame post and
the two are secured through the connection of two hearty bolts. The top bolt
is threaded and is designed for added stability. It only goes through the front
side of both frame posts. The lower bolt goes all the way through both frame
posts and sets the seat height. It is not threaded as it passes through the seat
posts, but has a hex nut on the backside. The seat post rests in the frame post.
There are four holes in the frame post to allow you to adjust the seat height
to 18" (46 cm), 19" (48.5 cm) or 20" (51 cm).
7.15.2 To adjust the seat height, remove the seat by following the previous
instructions. Next, remove both bolts from the two frame posts. (You might
want to disconnect the batteries to allow more room to work). Slide the
upper frame post up or down to the desired position. Place the seat height
