Dimensions and Weight

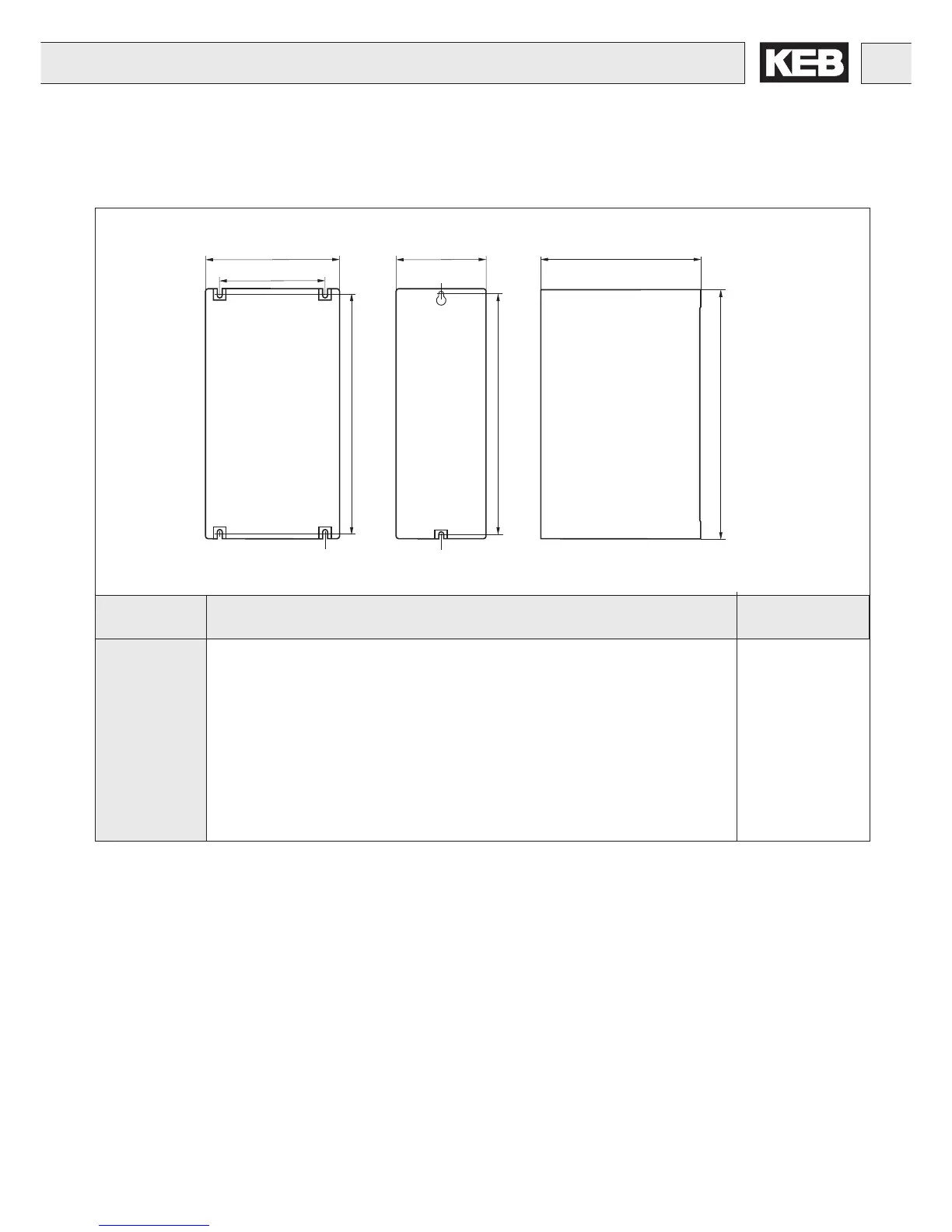

2.3 Dimensions and Weight
H
C
B
A
H
Ø F
A
G
Ø F
Housing A B C (with Operator) F G H Weight
(width) (height) (depth)
A 3.00 7.52 * 5.67 (6.22) 0.197 – 6.89 2.0 lbs
2.4 lbs w/filter
B 3.54 8.66 * 6.30 (6.85) 0.197 – 8.27 4.4 lbs
D 3.54 9.84 * 7.13 (7.68) 0.197 – 9.45 6.6 lbs
E 5.12 11.4 * 8.19 (8.74) 0.276 – 10.8 11 lbs
G 6.69 13.4 10.0 0.276 5.91 13.0 22 lbs
H 11.7 13.4 10.0 0.276 9.84 13.0 31 lbs
R 13.4 20.5 14.0 0.394 11.8 19.5 55 lbs
U 13.4 31.5 14.0 0.394 11.8 30.5 165 lbs
Dimensions in inches
*) This dimension will be greater when using the shielding plate which comes with the EMI filter.
