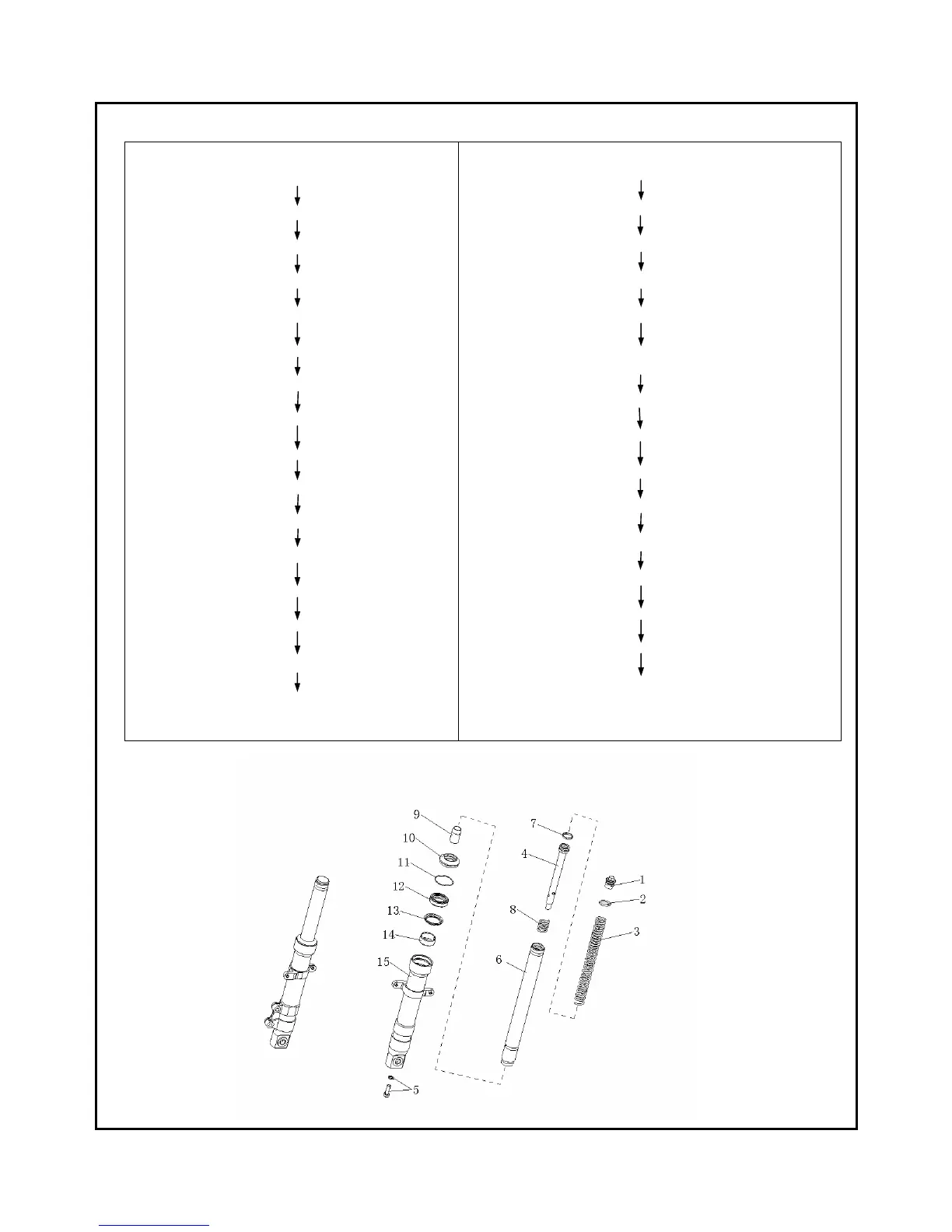

． F r o n t a b s o r b e r a s s y.
Removal：
：：
：
Bolt (1)
O-rseal ring (2)
Absorber spring (3)
Piston lever（4）
Screw（5）and gasket
Inner tube assy. (6)
Piston lever/piston ring (7)
Buffer spring (8)
Outer tube assy.
Anti-dust gasket assy.（10）
Oil seal stopper ring（11）
Oil seal assy.（12）
Oil seal gasket（13）
guiding bush（14）
Aluminium outer tube（15）
Buffer prick（9）
Installation：
：：
：
Install piston ring into piston lever
Install buffer spring into piston lever
Install the above parts assy. into inner tube assy.
Install buffer prick into piston lever
Install the above parts into aluminium outer tube
Fasten screw（gasket）
Fixing torque: 20N.m
Guiding bush
Oil seal gasket
Oil seal assy.
Oil seal stopper ring
Anti-dust ring assy.
Add absorber oil(100±2 ml)
Absorber spring (seal ring upturned)
O-seal ring
Bolt
Fixing torque: 23N.m
