KEEWAY ARN125 User Manual

66

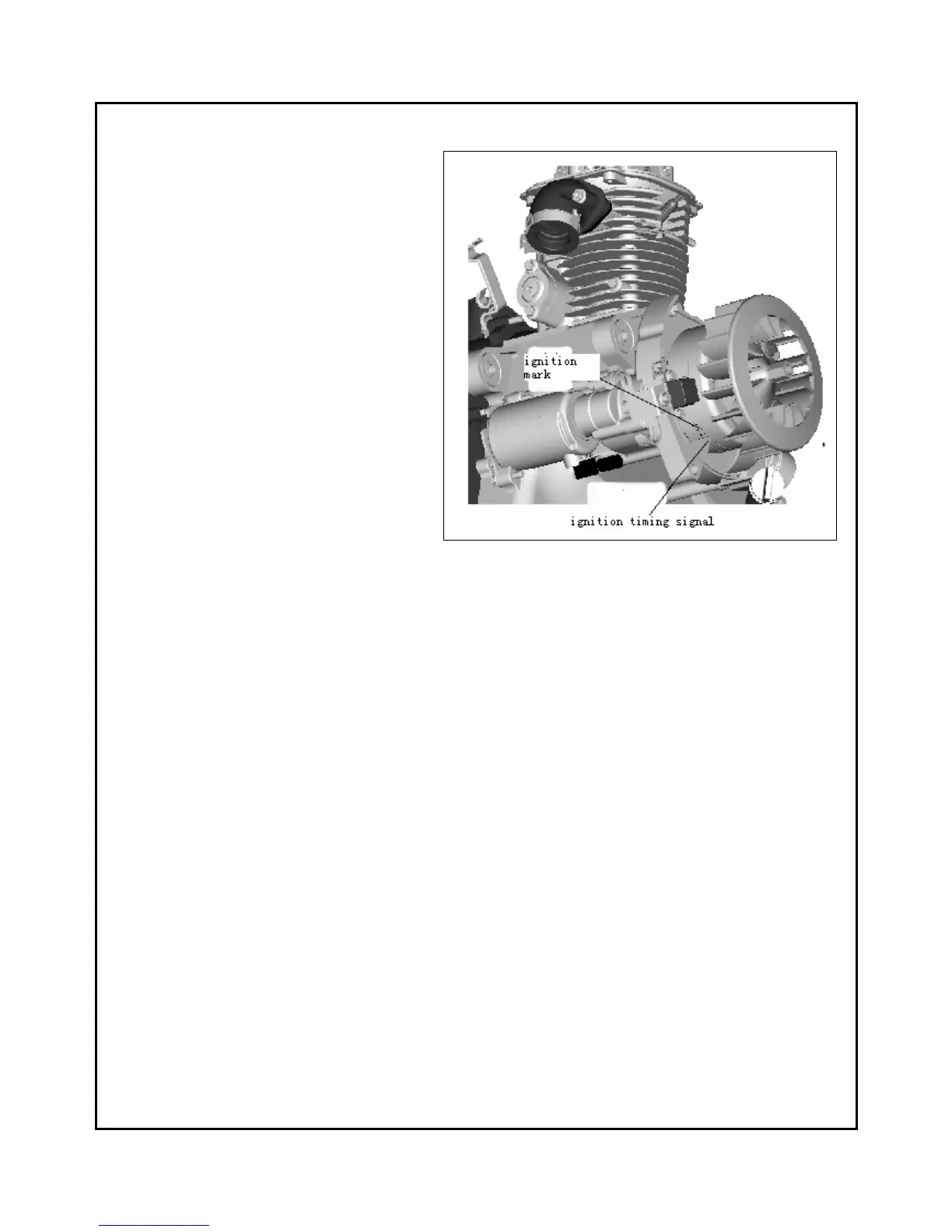

Ignition timing test
Ignition timing testIgnition timing test
Ignition timing test
1.Remove the viewing cap of ignition
timing hole.
2. Connect timing light following
as the specifications from manufacturer
（stroboscope）.
3.Start engine and aim timing light at
ignition mark on flywheel of magnet
motor.
•
••
•during idle speed
during idle speedduring idle speed
during idle speed
Ignition mark “F” is right against
“ I” mark on timing viewing hole, and
ignate it at 13º ahead of top dead center
at 1400RPM（see tachometer）.
•
••
•during speedup
during speedupduring speedup
during speedup
High speed mark“II” is right against
mark“I” on timing viewing hole, ignate
it at 28º ahead of top dead center at
4000RPM.
If ignition timing is not correct, replace CDI, and then inspect new one.
