Output connections
Use the supplied test leads for scanner output connections. Connect the red leads to the output
(OUT A and OUT B) HI terminals, and connect the black leads to the output LO terminals. See the
following figure for details. Dress the output test leads through the cable clamp, as described in
Dressing leads. After all wires are connected and secure, close the plastic shield, and secure it with
the locking tab.

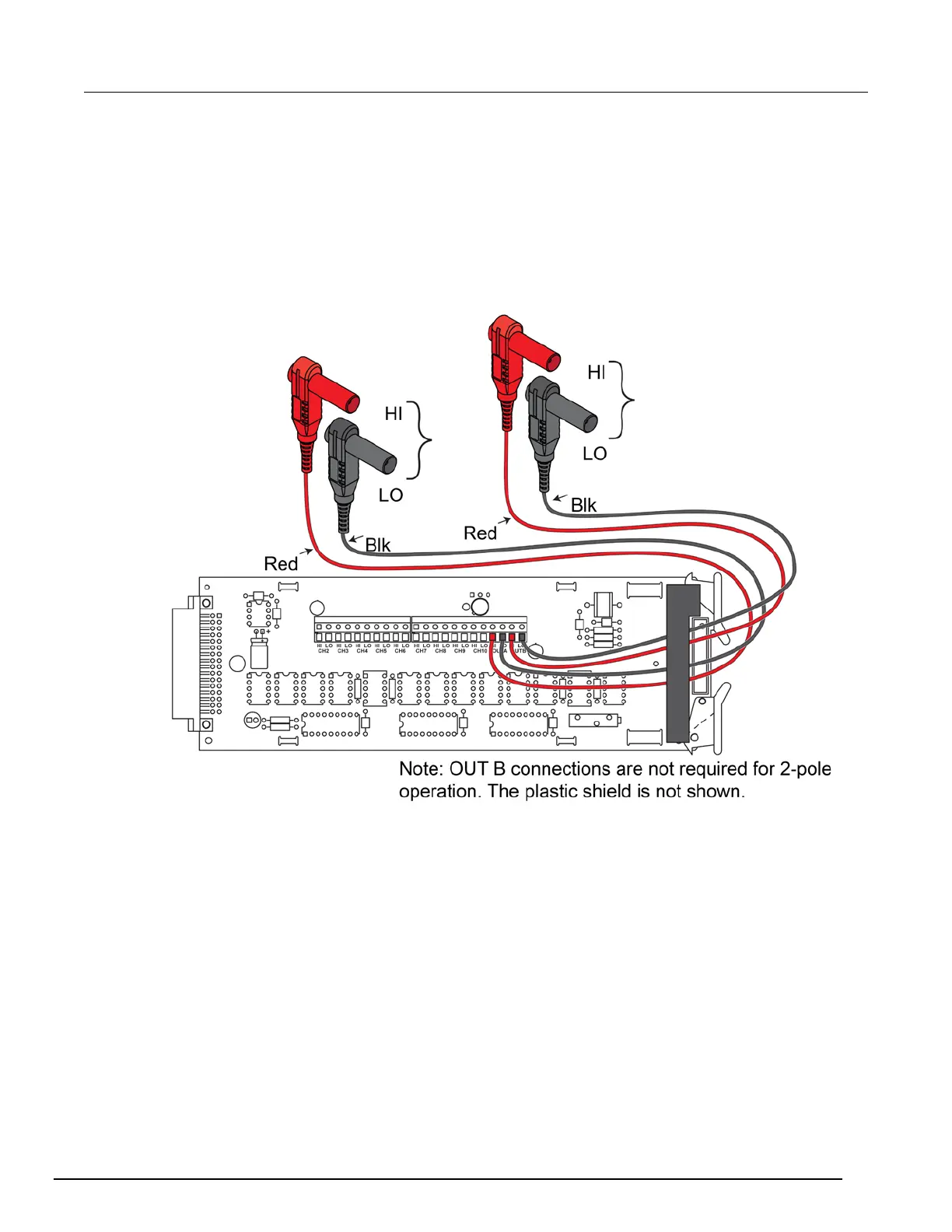

Figure 3: Output connections
