-TCSCAN Scanner Card User's Manual Section 2:
Card connectors and installation
2001-TCSCAN-900-01 Rev. A / April 2018 2-15
To make output connections for 4-pole operation:
1. Connect OUT A HI (red) to INPUT HI.
2. Connect OUT A LO (black) to INPUT LO.
3. Connect OUT B HI (red) to SENSE HI.
4. Connect OUT B LO (black) to SENSE LO.
The figure below shows the output connections for 4-pole operation.

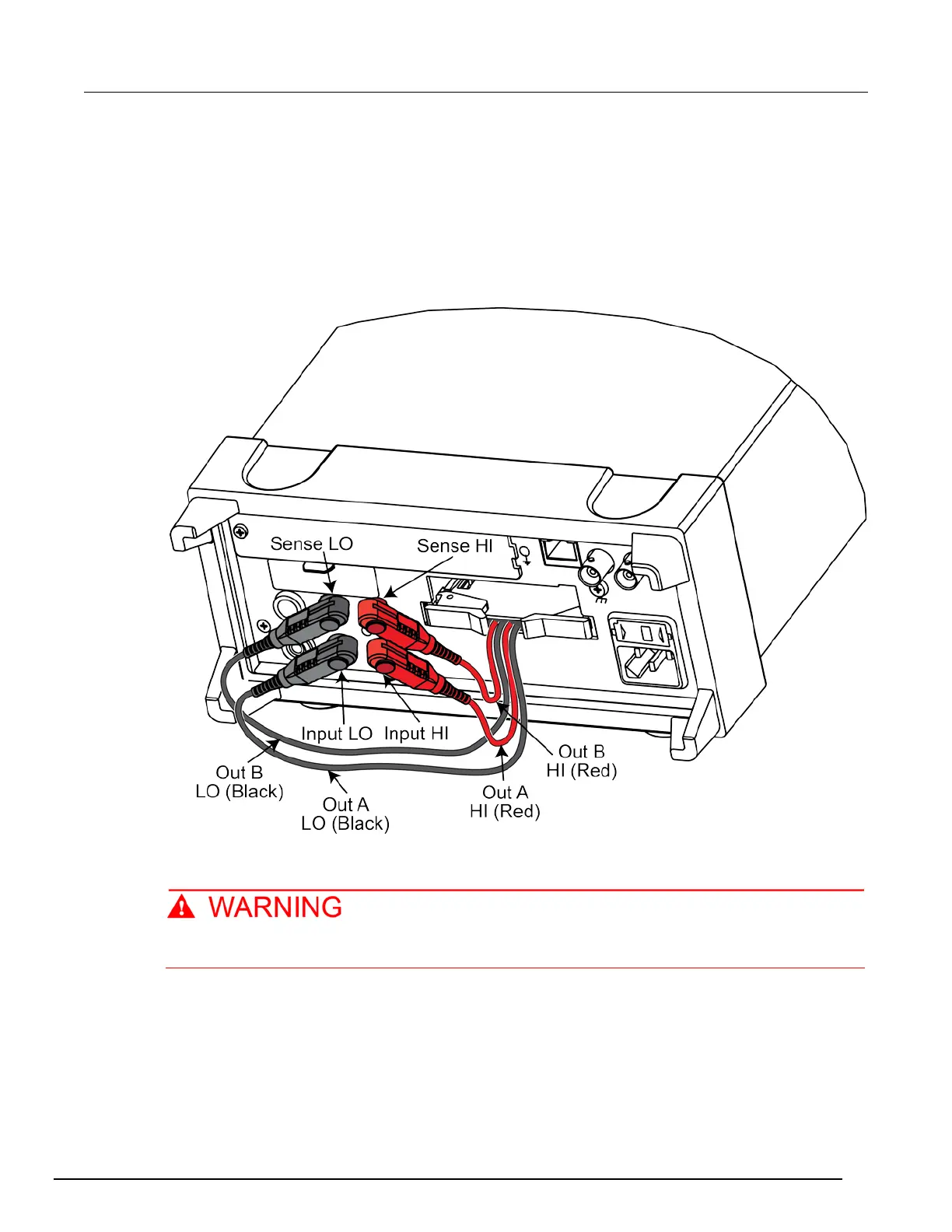

Figure 11: Four-pole output connections
Scanner card removal
Turn off power to all instrumentation, including the multimeter, and disconnect all line cords.
Make sure all power is removed and any stored energy in external circuitry is discharged.
To remove the scanner card from the multimeter:
1. Unlock the scanner card by pulling the ejector arms outward.
2. Carefully slide the scanner card out of the multimeter.
3. If you will operate the DMM6500 without the scanner card installed, install the cover plate over
the Accessory Card Slot.
