Keithley 2001-TCSCAN User Manual

Model 2001
-TCSCAN Scanner Card User's Manual Section 2:
Card connectors and installation
2001-TCSCAN-900-01 Rev. A / April 2018 2-7
Typical connecting schemes
This section discusses typical connections for the scanner card.
Thermocouple connections
The figure below shows typical thermocouple connections. Note that thermocouples are connected to
channels 2-10, and the output connections are taken from the OUT A terminals.

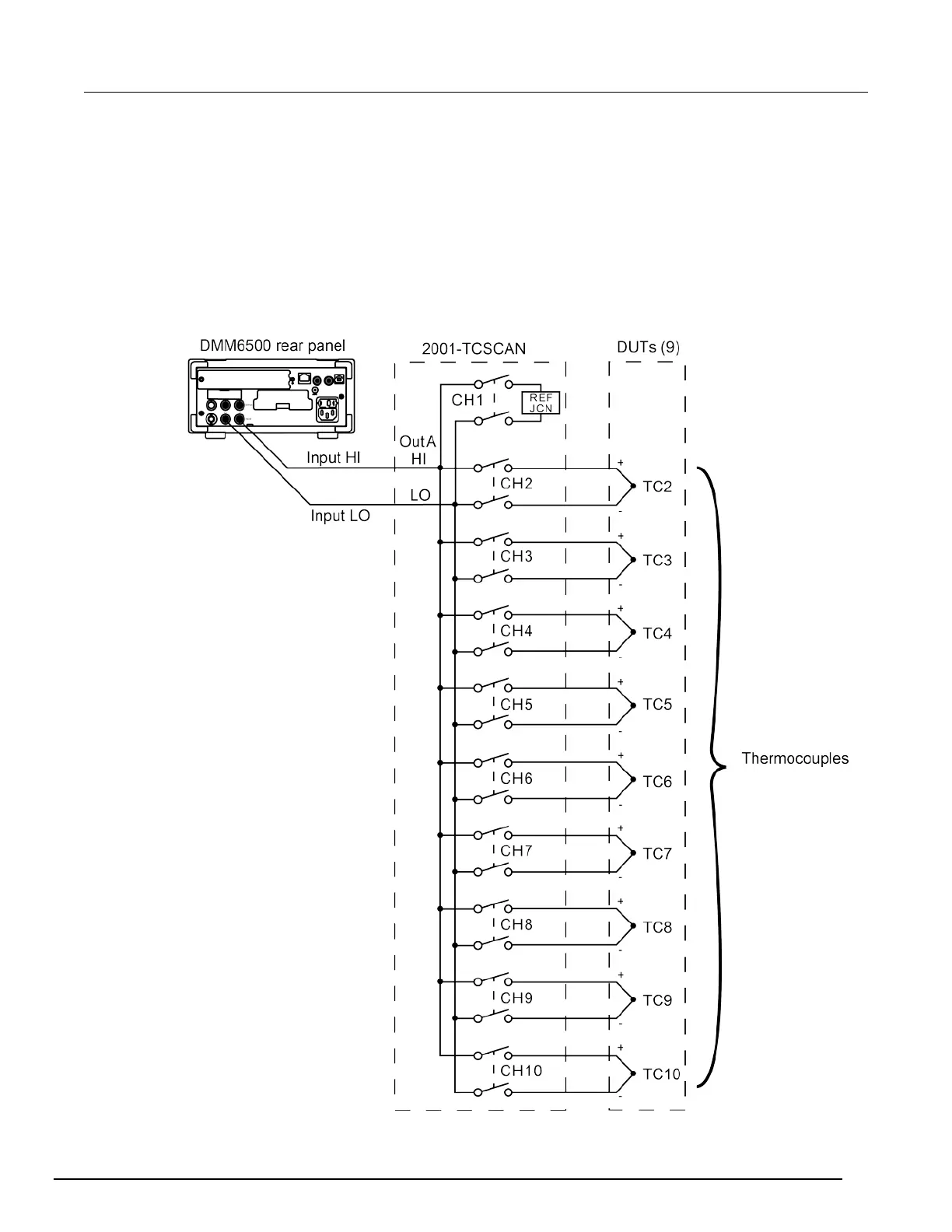

Figure 5: Typical connections for thermocouple scanning
