Typical applications
Temperature measurements
You can make temperature measurements from the front panel of DMM6500. Measurements can be
made by either automatic scanning or by manually closing specific channels. You can use
thermocouple types B, E, J, K, N, R, S, and T to make temperature measurements with your
2001-TCSCAN. The following procedure is for making thermocouple temperature measurements.
Connect the thermocouples to the scanner card input connectors using the general scheme based on
the figure below before making temperature measurements.

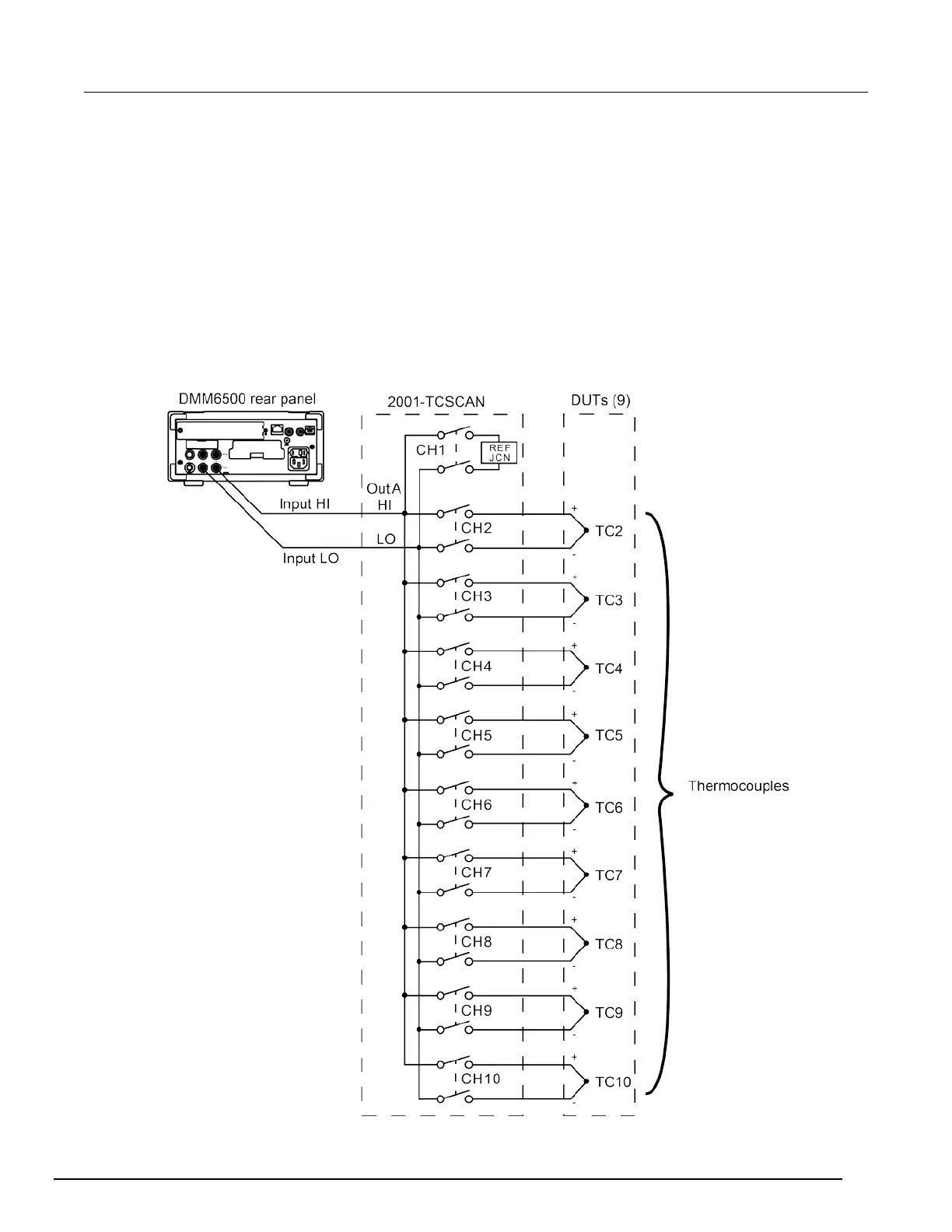

Figure 17: Typical connections for thermocouple scanning
