Keithley 2001-TCSCAN User Manual

Section
2: Card connectors and installation Model 2001-TCSCAN Scanner Card
User's Manual
2-8 2001-TCSCAN-900-01 Rev. A / April 2018
Voltage connections

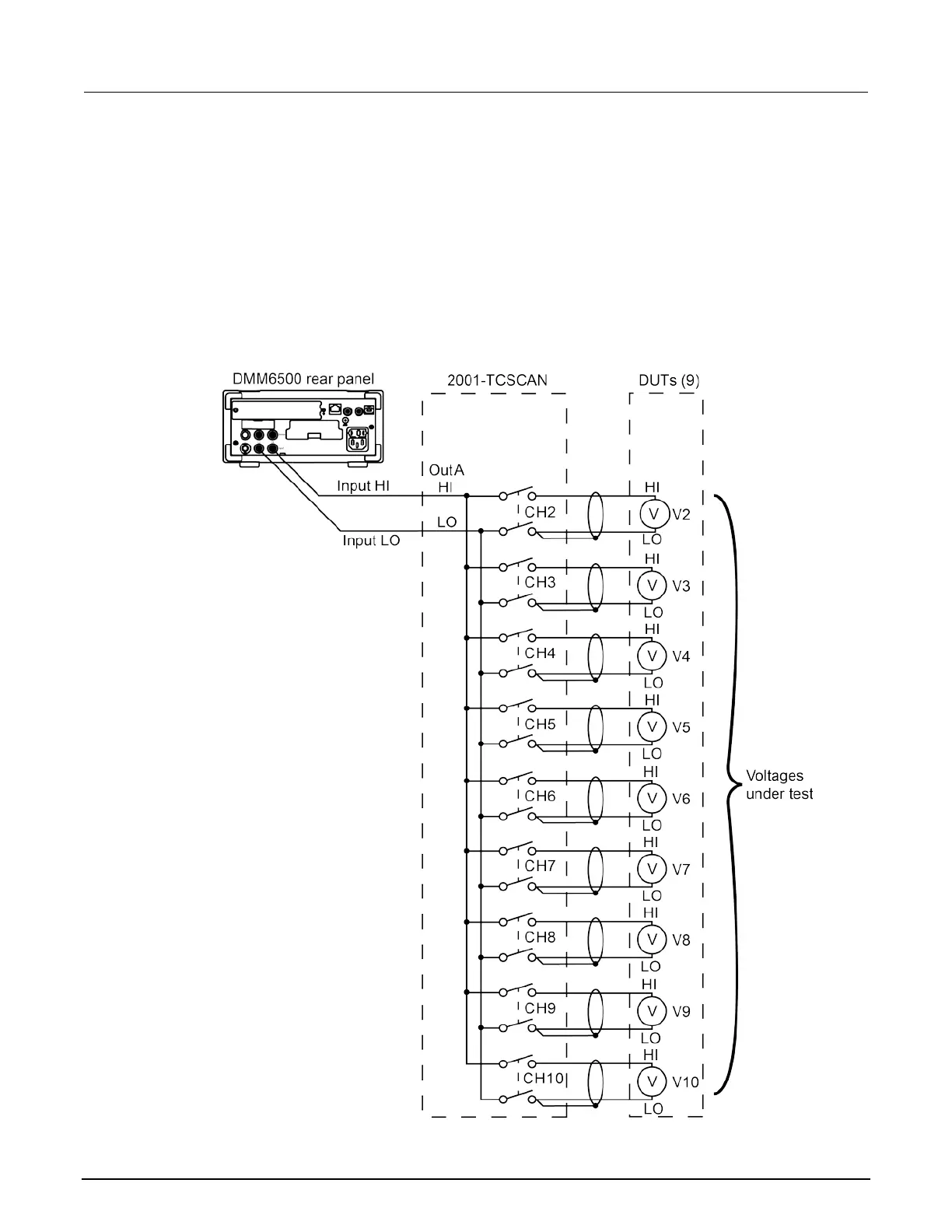

The following figure shows typical connections for voltage measurements. Note that up to nine
voltage sources can be switched with this configuration. This basic configuration can be for the
following measurement types:
• DCV
• ACV
• Frequency
Channels 2-10 can be used with this configuration.
Figure 6: Connections for voltage scanning
