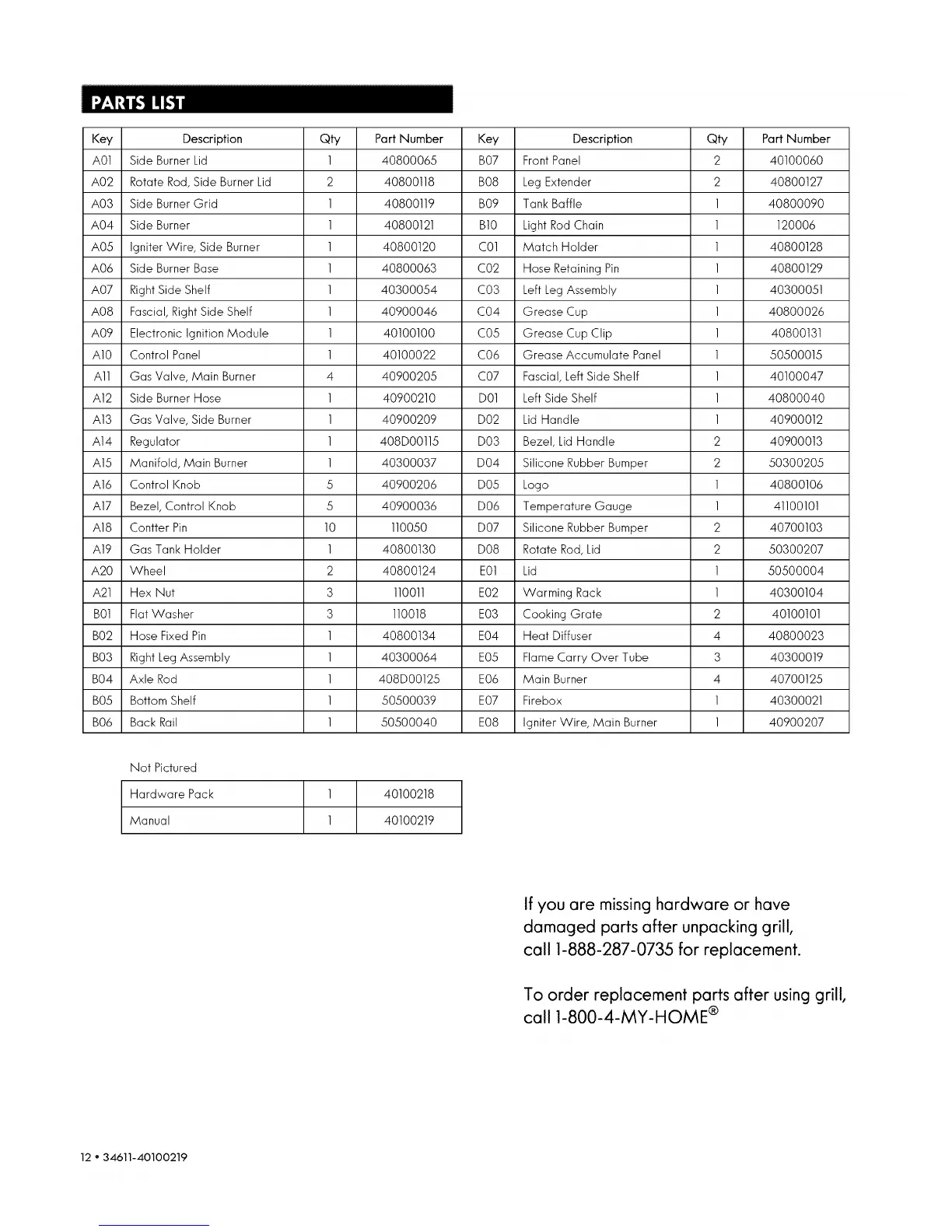

Key
A01
A02
A03
A04
A05
A06
A07
A08
A09
A10
All
A12
A13
A14
A15
A16
A17
A18
A19
A20
A21
B01
B02
B03
B04
B05
B06
Description
Side Burner Lid
Rotate Rod,Side BurnerLid
Side Burner Grid
Side Burner
Igniter Wire, Side Burner
Side Burner Base
RightSide Shelf
Fascial, RightSide Shelf
Electronic Ignition Module
Control Panel
Gas Valve, Main Burner
Side Burner Hose
Gas Valve, Side Burner
Regulator
Manifold, Main Burner
Control Knob
Bezel, Control Knob
Contter Pin
Gas TankHolder
Wheel
Hex Nut
Flat Washer
Hose Fixed Pin
RightLegAssembly
Axle Rod
Bottom Shelf
Back Rail
Qty
1
2
1
1
1
1
1
1
1
1
4
1
1
1
1
5
5
10
1
2
3
3
1
1
1
1
1
Part Number
40800065
40800118
40800119
40800121
40800120
40800063
40300054
40900046
40100100
40100022
40900205
40900210
40900209
408D00115
40300037
40900206
40900036
110050
40800130
40800124
110011
110018
40800134
40300064
408D00125
50500039
50500040
Key Description Qty Part Number
B07 Front Panel 2 40100060
B08 Leg Extender 2 40800127
B09 Tank Baffle 1 40800090
B10 Light Rod Chain 1 120006
C01 Match Holder 1 40800128
C02 Hose Retaining Pin 1 40800129
C03 Left Leg Assembly 1 40300051
C04 Grease Cup 1 40800026
C05 Grease Cup Clip 1 40800131
C06 Grease Accumulate Panel 1 50500015
C07 Fascial, Left Side Shelf 1 40100047
D01 Left Side Shelf 1 40800040
D02 Lid Handle 1 40900012
D03 Bezel, Lid Handle 2 40900013
DO4 Silicone Rubber Bumper 2 50300205
DO5 Logo 1 40800106
DO6 Temperature Gauge 1 41100101
DO7 Silicone Rubber Bumper 2 40700103
DO8 Rotate Rod, Lid 2 50300207
E01 Lid 1 50500004
E02 Warming Rack 1 40300104
E03 Cooking Grate 2 40100101
E04 Heat Diffuser 4 40800023
E05 Flame Carry Over Tube 3 40300019
E06 Main Burner 4 40700125
E07 Firebox 1 40300021
E08 Igniter Wire, Main Burner 1 40900207
Not Pictured
Hardware Pack
Manual
1
1
40100218
40100219
If you are missing hardware or have
damaged parts after unpacking grill,
call 1-888-287-0735 for replacement.
To order replacement parts after using grill,
call 1-800-4-MY-HOME ®
12 • 34611-40100219
