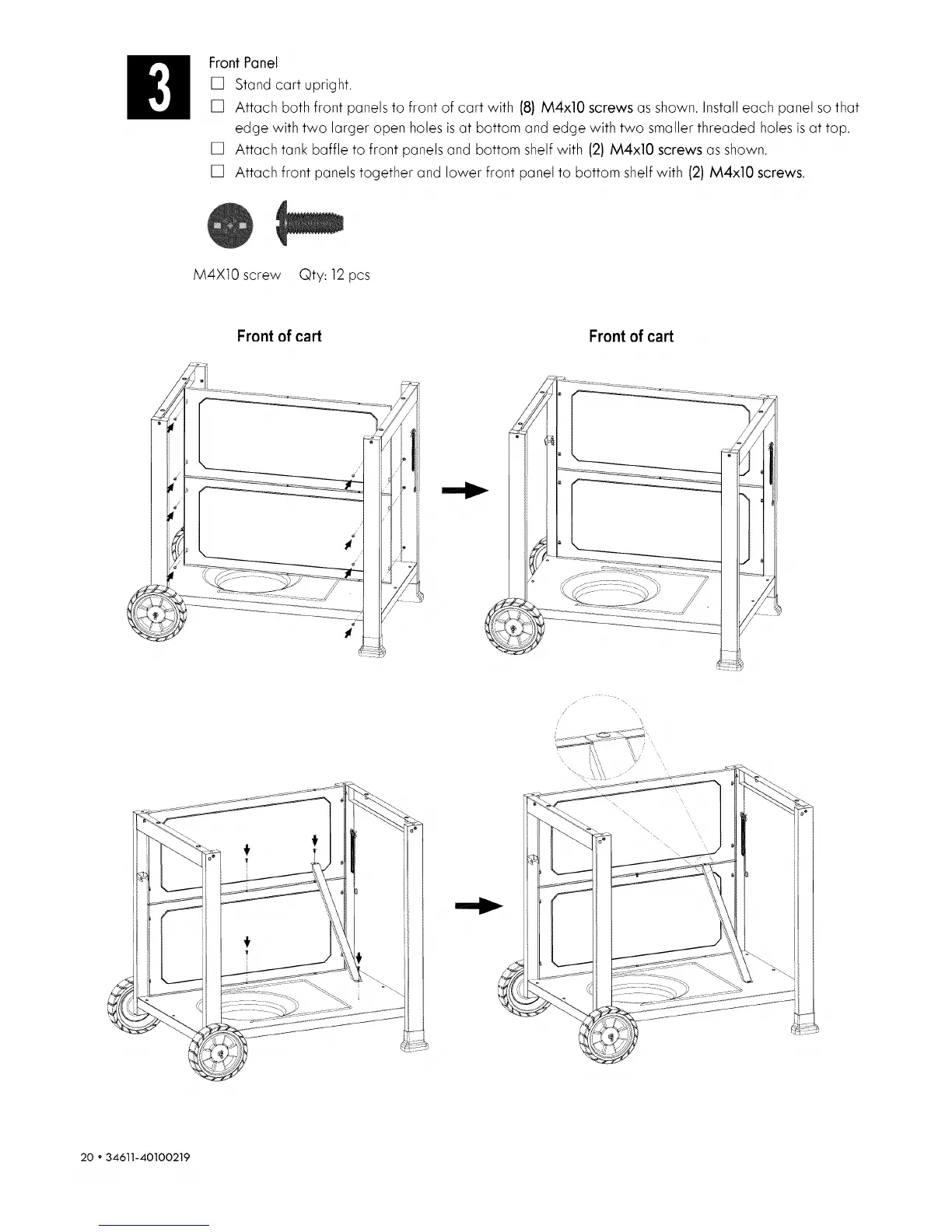

Front Panel
[] Stand cart upright.
[] Attach both front panels to front of cart with (8) M4xl0 screws as shown. Install each panel so that
edge with two larger open holes is at bottom and edge with two smaller threaded holes is at top.
[] Attach tank baffle to front panels and bottom shelf with (2) M4xl0 screws as shown.
[] Attach front panels together and lower front panel to bottom shelf with (2) M4xl0 screws.
M4X10 screw Qty: 12pcs
Front of cart Frontof cart
20 • 34611-40100219
