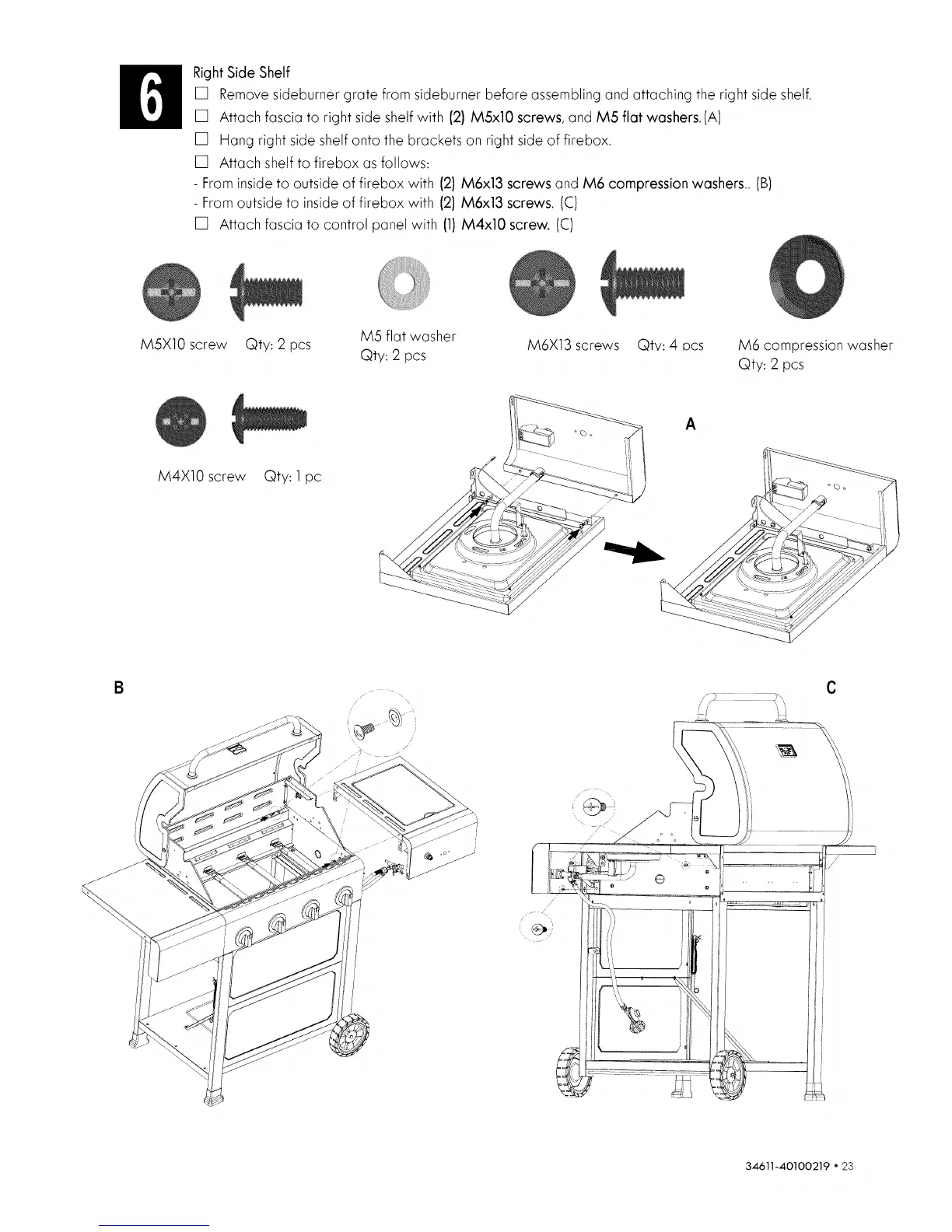

RightSide Shelf
[] Remove sideburner grate from sideburner before assembling and attaching the right side shelf.
[] Attach fascia to right side shelf with (2) M5xl0 screws, and M5 flat washers. (A)
[] Hang right side shelf onto the brackets on right side of firebox.
[] Attach shelf to firebox as follows:
- From inside to outside of firebox with (2) M6x13 screws and M6 compression washers.. (B)
- From outside to inside of firebox with (2) M6x13 screws. (C)
[] Attach fascia to control panel with (1) M4xl0 screw. (C)
M5 flat washer
M5X10 screw Qty: 2 pcs M6X13 screws Qtv: 4 _cs
Qty: 2 pcs
M6 compression washer
Qty: 2 pcs
M4X10 screw Qty: 1pc
A
B
•%• /
¢
34611-40100219 • 23
