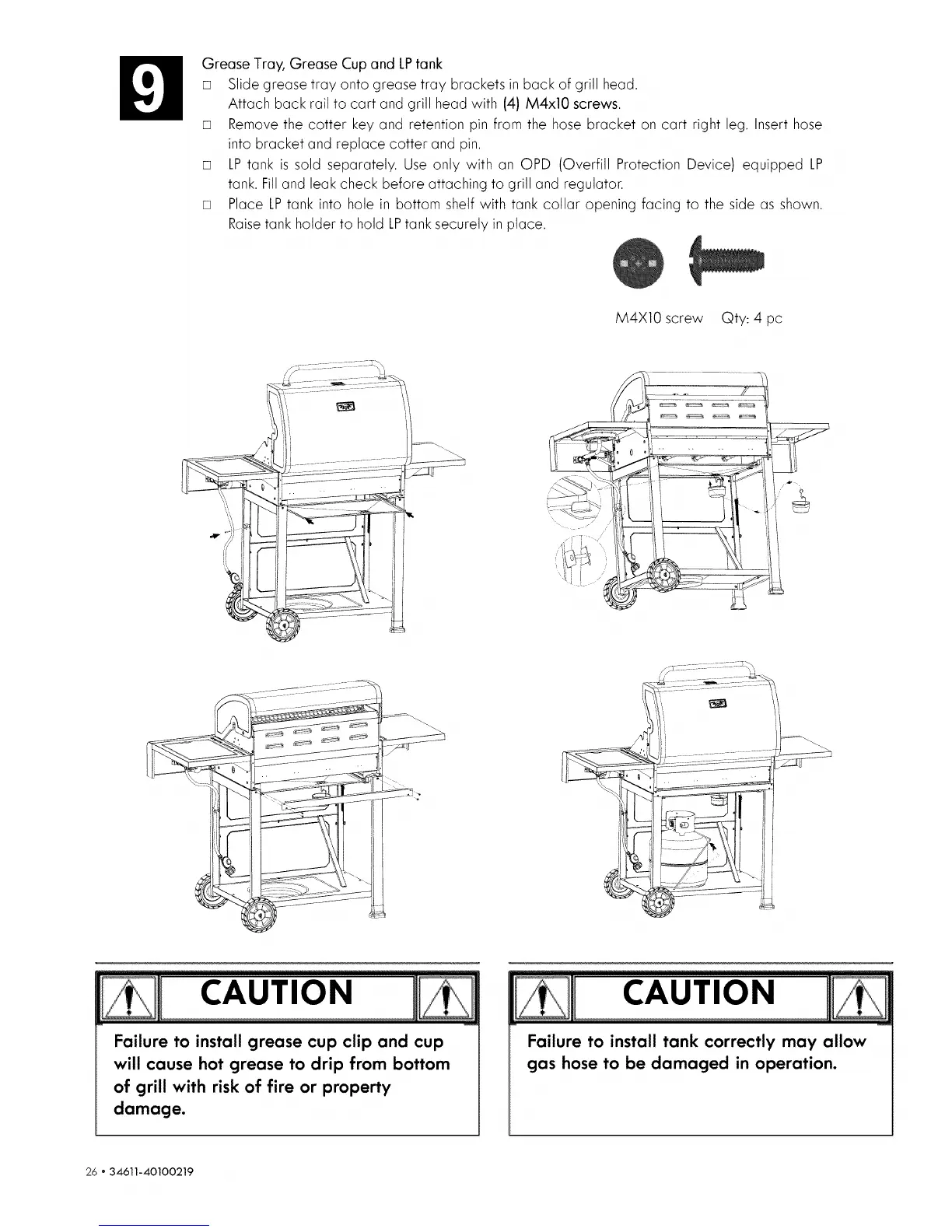

Grease Tray, Grease Cup and LPtank
Slide grease tray onto grease tray brackets in back of grill head.
Attach back rail to cart and grill head with (4) M4xlO screws.
[] Remove the cotter key and retention pin from the hose bracket on cart right leg. Insert hose
into bracket and replace cotter and pin.
[] LPtank is sold separately. Use only with an OPD (Overfill Protection Device) equipped LP
tank. Fill and leak check before attaching to grill and regulator.
[] Place LPtank into hole in bottom shelf with tank collar opening facing to the side as shown.
Raisetank holder to hold LPtank securely in place.
M4XIO screw Qty: 4 pc
CAUTION
Failure to install grease cup clip and cup
will cause hot grease to drip from bottom
of grill with risk of fire or property
damage.
CAUTIO
Failure to install tank correctly may allow
gas hose to be damaged in operation.
26 • 34611-40100219
