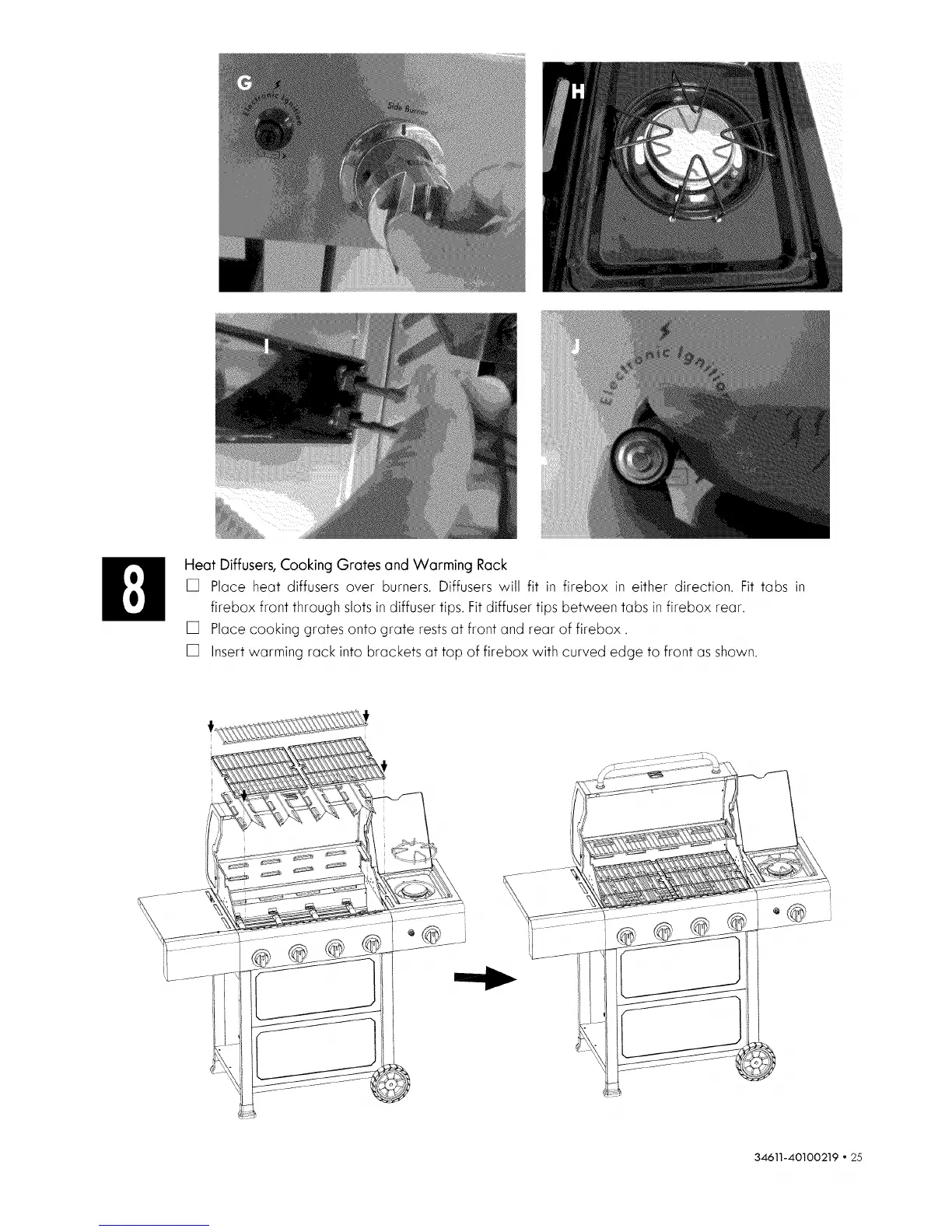

Heat Diffusers, Cooking Grates and Warming Rack
[] Place heat diffusers over burners. Diffusers will fit in firebox in either direction. Fit tabs in
firebox front through slots in diffuser tips. Fitdiffuser tips between tabs in firebox rear.
[] Place cooking grates onto grate rests at front and rear of firebox.
[] Insert warming rack into brackets at top of firebox with curved edge to front as shown.
34611-40100219 • 25
