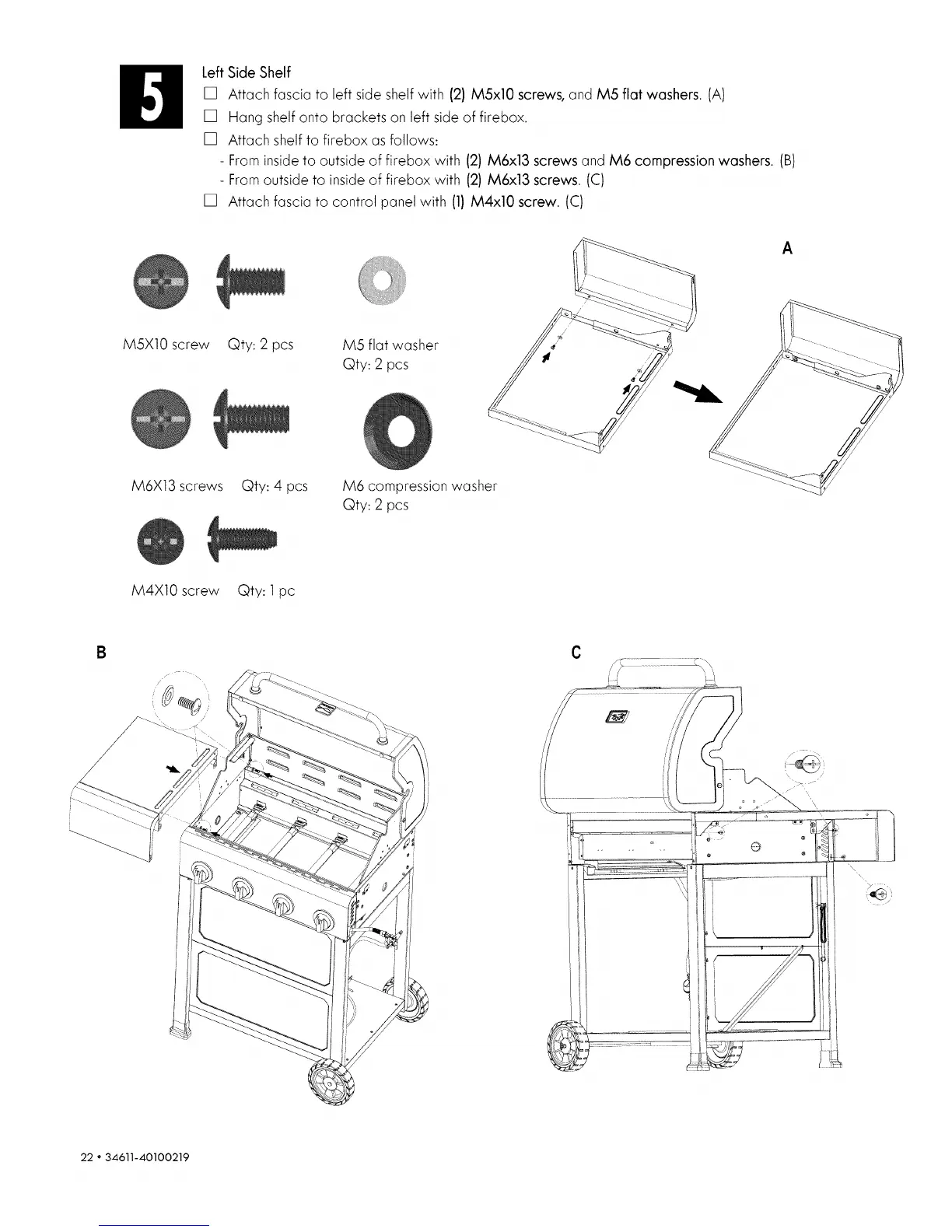

Left Side Shelf
[] Attach fascia to left side shelf with (2) MSxl0 screws, and M5 flat washers. (A)
[] Hang shelf onto brackets on left side of firebox.
[] Attach shelf to firebox as follows:
- From inside to outside of firebox with (2) M6x13 screws and M6 compression washers. (B)
- From outside to inside of firebox with (2) M6x13 screws. (C)
[] Attach fascia to control panel with (1) M4xl0 screw. (C)
M5X10 screw Qty: 2 pcs M5 flat washer
Qty: 2 pcs
M6X13 screws Qty: 4 pcs
M4XIO screw Qty: 1pc
M6 compression washer
Qty: 2 pcs
A
B C
I-4
22 • 34611-40100219
To Next Page
