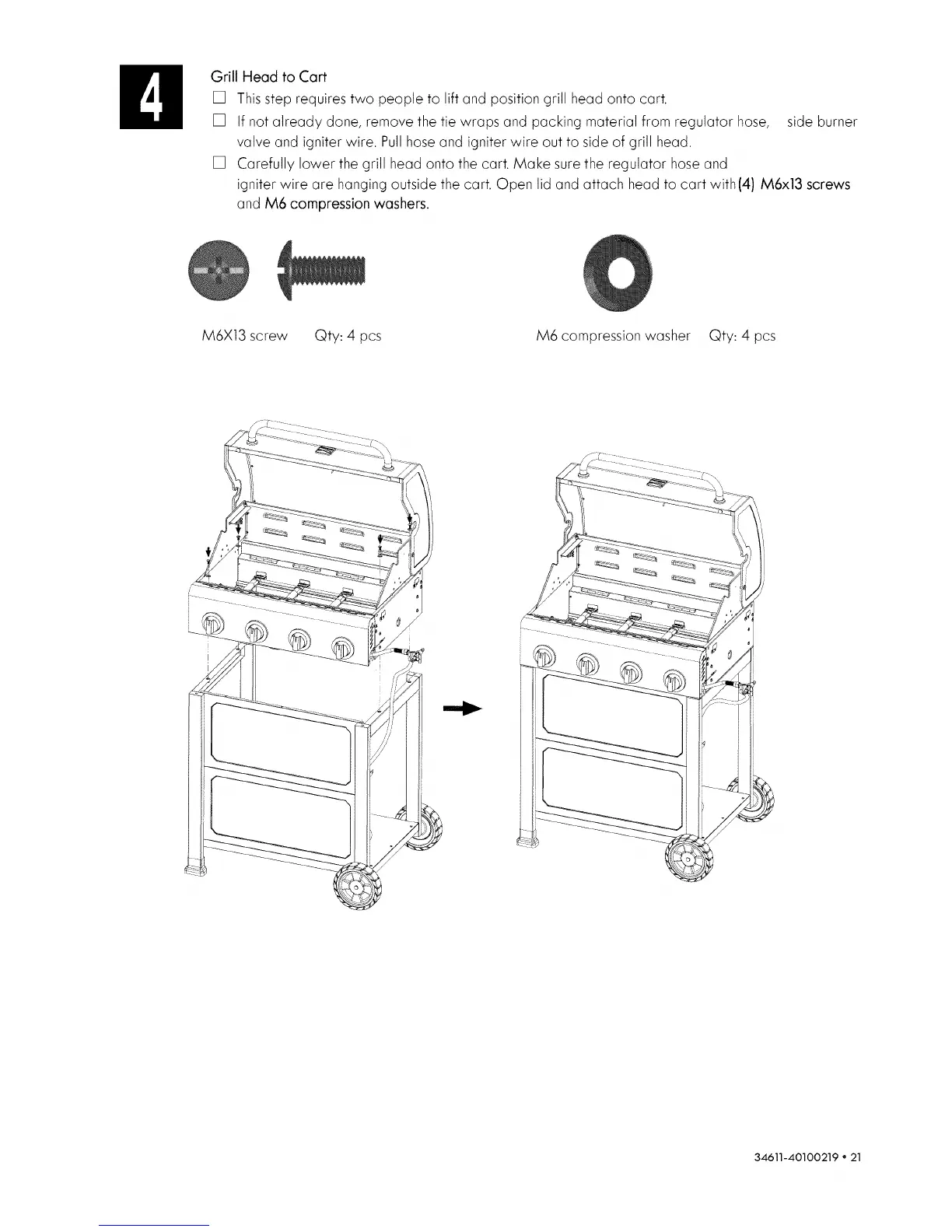

Grill Head to Cart
[] This step requires two people to lift and position grill head onto cart.
[] If not already done, remove the tie wraps and packing material from regulator hose, side burner
valve and igniter wire. Pull hose and igniter wire out to side of grill head.
[] Carefully lower the grill head onto the cart. Make sure the regulator hose and
igniter wire are hanging outside the cart. Open lid and attach head to cart with(4} M6x13 screws
and M6 compression washers.
M6X13 screw Qty: 4 pcs M6 compression washer Qty: 4 pcs
34611-40100219 • 21
