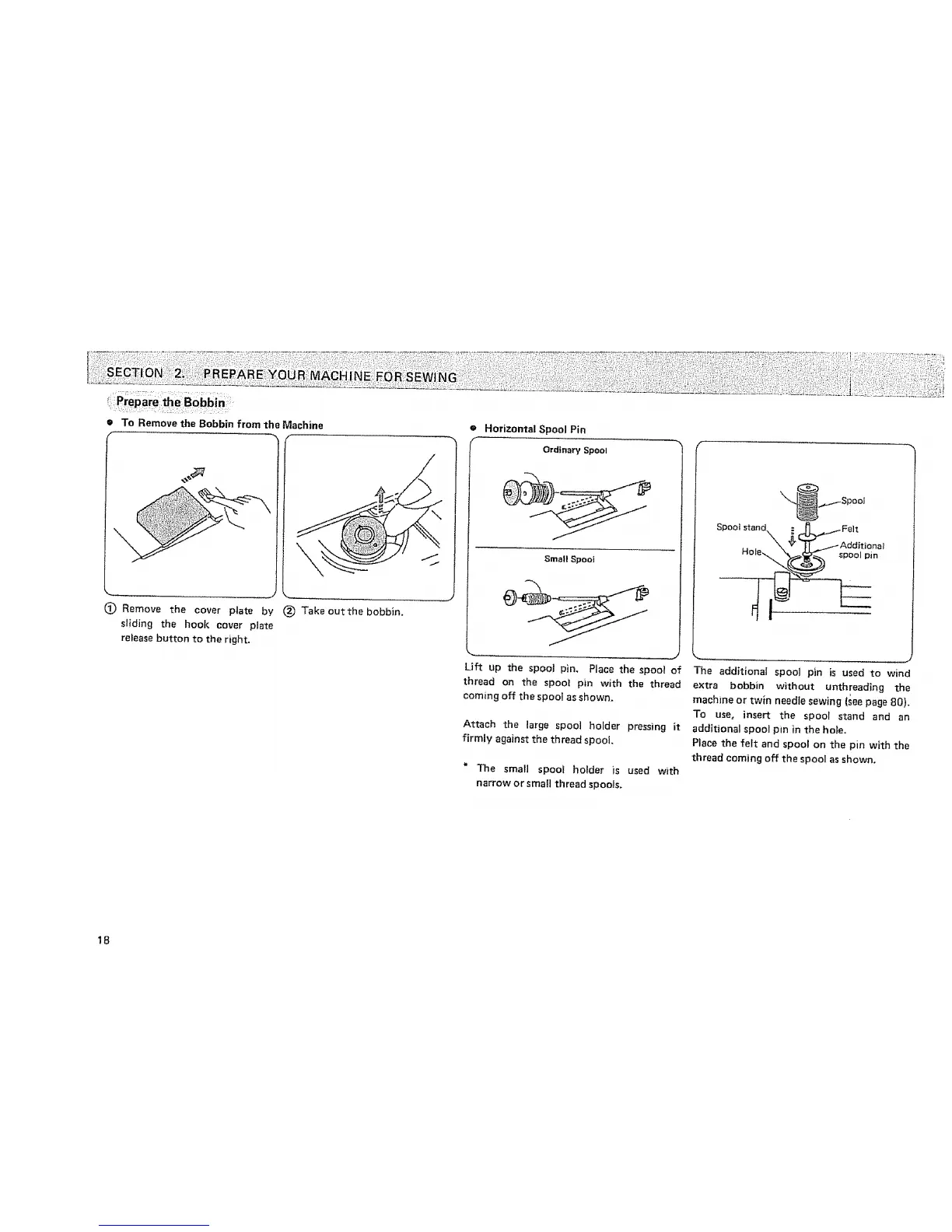

• To Remove the Bobbin from the Machine
J
(_) Remove the cover plate by (_)Takeoutthebobbin.
sliding the hook cover plate
release button to the right.
• Horizontal Spool Pin
Ordinary Spool
Small Spool
Lift up the spool pin, Place the spool of
thread on the spool pin with the thread
coming off the spool as shown.
Attach the large spool holder pressing it
firmly against the thread spool.
* "Fne small spool holder is used with
narrow or small thread spoo|s.
Spootstand. _ r_ . _-Felt
_ _'_ Additional
Hole _ spoolpin
The additional spool pin is used to wind
extra bobbin without unthreading the
machine or twin needle sewing (see page 80).
To use, insert the spool stand and an
additional spool pin in the hole.
Piece the felt and spool on the pin with the
thread coming off the spool as shown.
18
