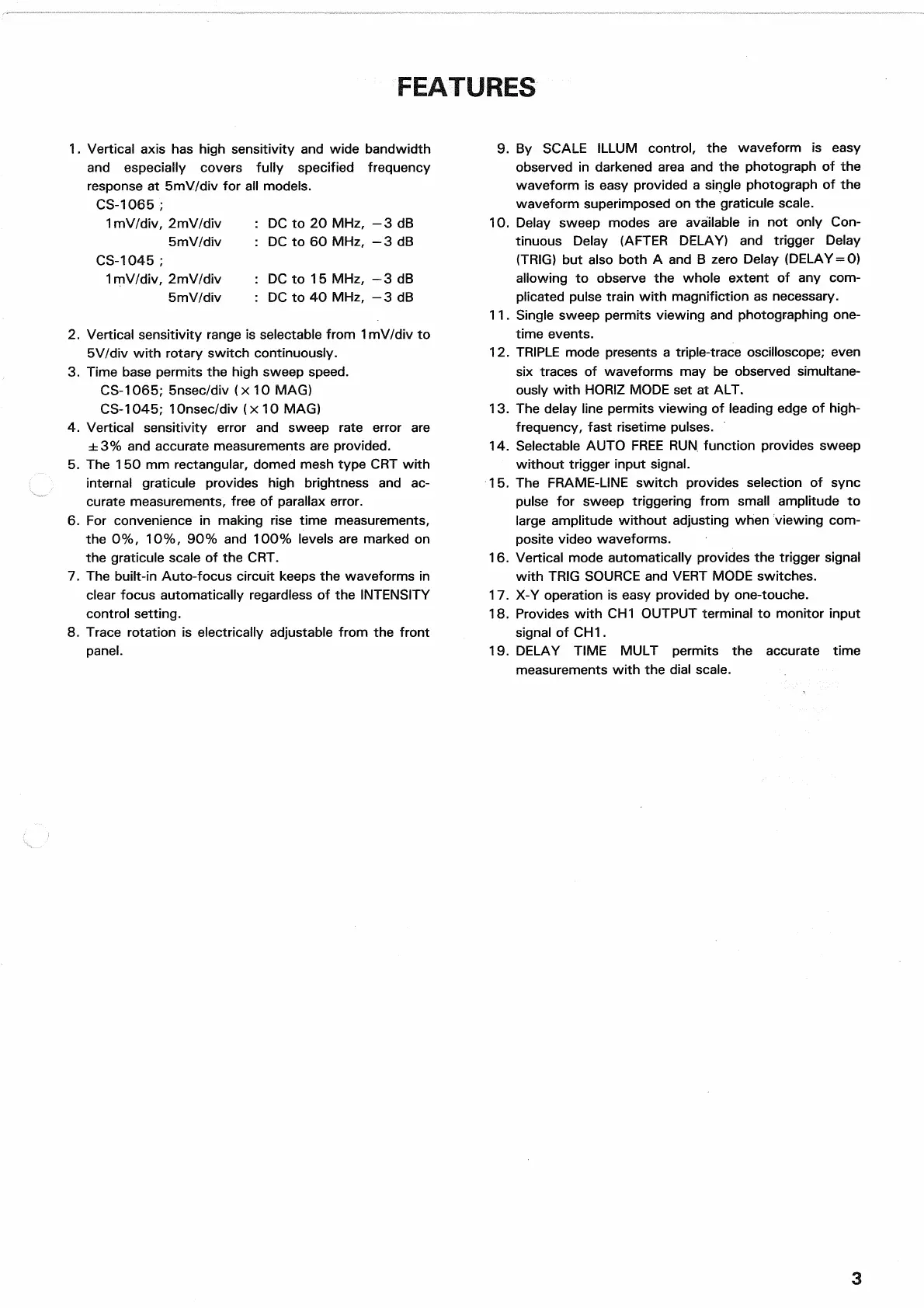

FEATURES
1.
Vertical axis has high sensitivity and wide bandwidth
and especially covers fully specified frequency
response
at 5mV/div for all models.
CS-1065
;
1
mV/div, 2mV/div : DC to 20 MHz, -3 dB
5mV/div : DC to 60 MHz, -3 dB
CS-1045
;
1
mV/div, 2mV/div : DC to
1
5 MHz, -3 dB
5mV/div : DC to 40 MHz, -3 dB
2.
Vertical sensitivity range is selectable
from
1
mV/div to
5V/div
with
rotary switch continuously.
3.
Time base permits the high sweep
speed.
CS-1065;
5nsec/div (x 10 MAG)
CS-1045;
10nsec/div (x 10 MAG)
4. Vertical sensitivity error and sweep rate error are
±3%
and accurate measurements are provided.
5. The
1
50 mm rectangular, domed mesh type CRT
with
internal graticule provides high brightness and ac-
curate measurements, free of parallax error.
6. For convenience in making rise
time
measurements,
the 0%, 10%, 90% and 100% levels are marked on
the graticule
scale
of the CRT.
7. The built-in Auto-focus circuit keeps the waveforms in
clear
focus automatically regardless of the INTENSITY
control setting.
8. Trace rotation is electrically adjustable
from
the
front
panel.
9. By
SCALE
ILLUM control, the waveform is
easy
observed
in darkened area and the photograph of the
waveform is
easy
provided a single photograph of the
waveform superimposed on the graticule
scale.
10. Delay sweep modes are available in not only
Con-
tinuous Delay
(AFTER DELAY)
and trigger Delay
(TRIG)
but also both A and B zero Delay
(DELAY
= 0)
allowing to observe the whole extent of any com-
plicated pulse train
with
magnifiction as
necessary.
11.
Single sweep permits viewing and photographing one-
time
events.
12.
TRIPLE
mode presents a triple-trace
oscilloscope;
even
six
traces of waveforms may be observed simultane-
ously
with
HORIZ MODE set at ALT.
13.
The delay line permits viewing of leading edge of high-
frequency, fast risetime
pulses.
14. Selectable AUTO
FREE
RUN function provides sweep
without trigger input signal.
15.
The FRAME-LINE switch provides selection of
sync
pulse
for sweep triggering
from
small amplitude to
large amplitude without adjusting when viewing com-
posite
video waveforms.
16. Vertical mode automatically provides the trigger signal
with
TRIG
SOURCE
and
VERT
MODE
switches.
17. X-Y operation is
easy
provided by one-touche.
18. Provides
with
CH1 OUTPUT terminal to monitor input
signal
of CH1.
19.
DELAY
TIME MULT permits the accurate
time
measurements
with
the dial
scale.
