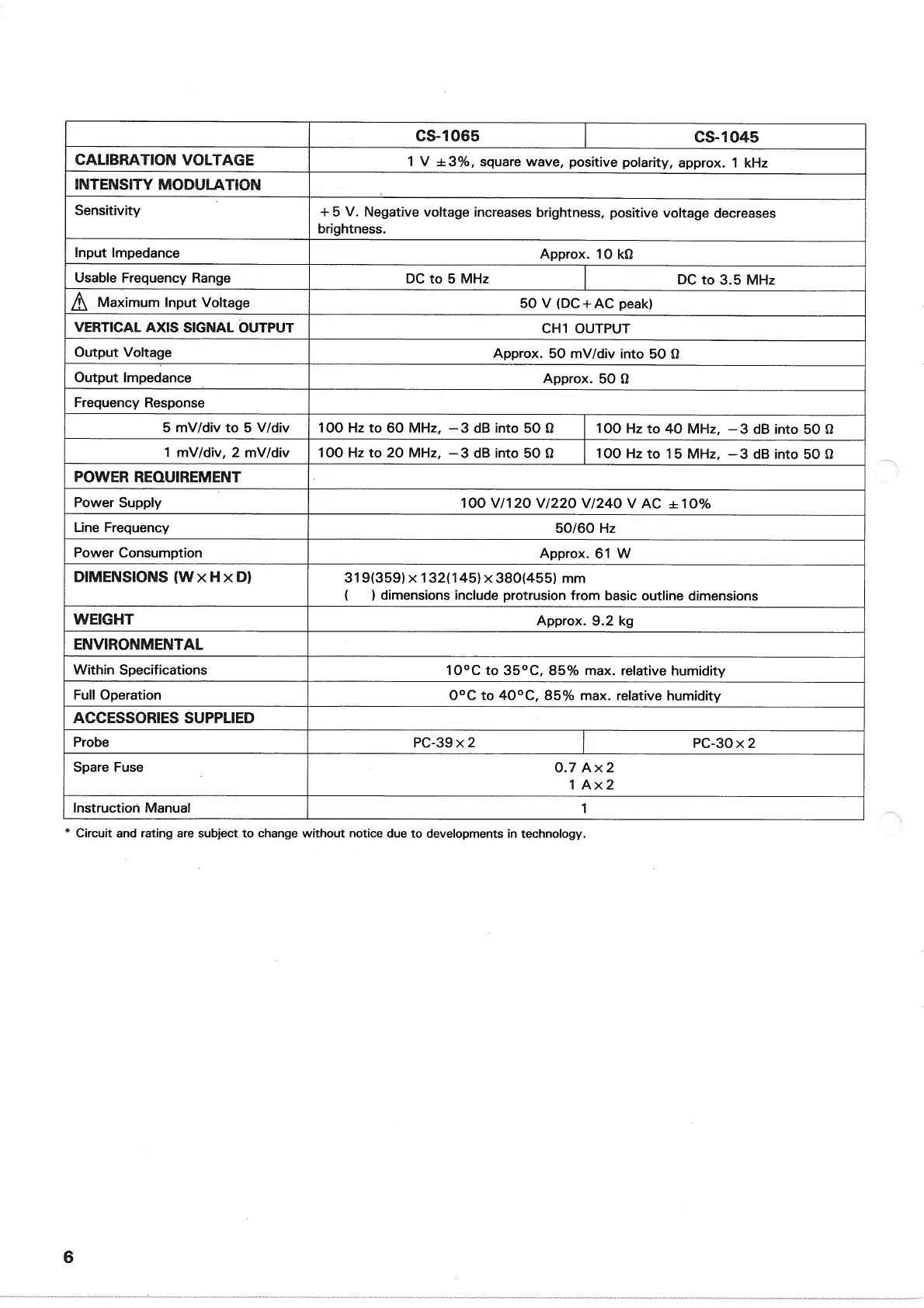

CS-1065
CS-1045
CALIBRATION
VOLTAGE
1
V ±3%, square wave, positive polarity, approx. 1 kHz
INTENSITY
MODULATION
Sensitivity
+
5 V. Negative voltage increases brightness, positive voltage decreases
brightness.
Input Impedance
Approx. 10 kQ
Usable
Frequency Range
DC
to 5 MHz
DC
to 3.5 MHz
/t\
Maximum
Input Voltage
50 V (DC + AC peak)
VERTICAL
AXIS SIGNAL OUTPUT
CH1 OUTPUT
Output Voltage
Approx. 50 mV/div into 50 0
Output Impedance
Approx. 50 Q
Frequency
Response
5
mV/div to 5 V/div
100 Hz to 60 MHz, -3 dB into 50 0
100 Hz to 40 MHz, -3 dB into 50 0
1
mV/div, 2 mV/div
100 Hz to 20 MHz, -3 dB into 50 Q
100 Hz to 15 MHz, -3 dB into 50 0
POWER
REQUIREMENT
Power Supply
100 V/120 V/220 V/240 VAC ±10%
Line
Frequency
50/60
Hz
Power Consumption
Approx. 61 W
DIMENSIONS
(WxHxD)
319(359)
x
132(145)
x
380(455)
mm
( ) dimensions include protrusion
from
basic
outline dimensions
WEIGHT
Approx. 9.2 kg
ENVIRONMENTAL
Within
Specifications
10°C to 35°C, 85% max. relative humidity
Full
Operation
0°C to 40°C, 85% max. relative humidity
ACCESSORIES
SUPPLIED
Probe
PC-39
x 2
PC-30X2
Spare
Fuse
0.7 Ax2
1
Ax2
Instruction Manual
1
* Circuit and rating are subject to change without notice due to developments in technology.
6
