Kenwood CS-1065 User Manual

ACCESSORIES
STANDARD ACCESSORIES INCLUDED
Probe (PC-30) Y87-2260-00
Attenuation 1/10, 1/1
Input Impedance
1/10 10 MQ, 22pF ±10%
1/1 1 Mfi, 200pForless
Probe (PC-39) Y87-2370-00
Attenuation WIO
Input Impedance 10 MO, 12.5pF or less
Instruction Manual B50-7588-30
Replacement Fuse
1
A
F05-1023-05
0.7 A F05-7011-05
OPTIONAL ACCESSORIES
Probe Pouch (MC-78) Y87-1600-00
This soft vinyl pouch attaches to the top side oscilloscope
housing and provides storage space for two probes and the
operators manual. Install the probe pouch as follow;
1. Unsnap the probe pouch from the retainer plate.
2. Align the retainer plate with 4 holes on the top side of
the case, with 4 snaps at the top.
3. Attach the 4 corners of the retainer plate to the
oscilloscope case with the 4 nylon rivets supplied.
4. Attach the pouch to the retainer plate using the snap
fastener.
32
- Plunger
-Grommet
nylon rivet
Washer
Retainer Plate

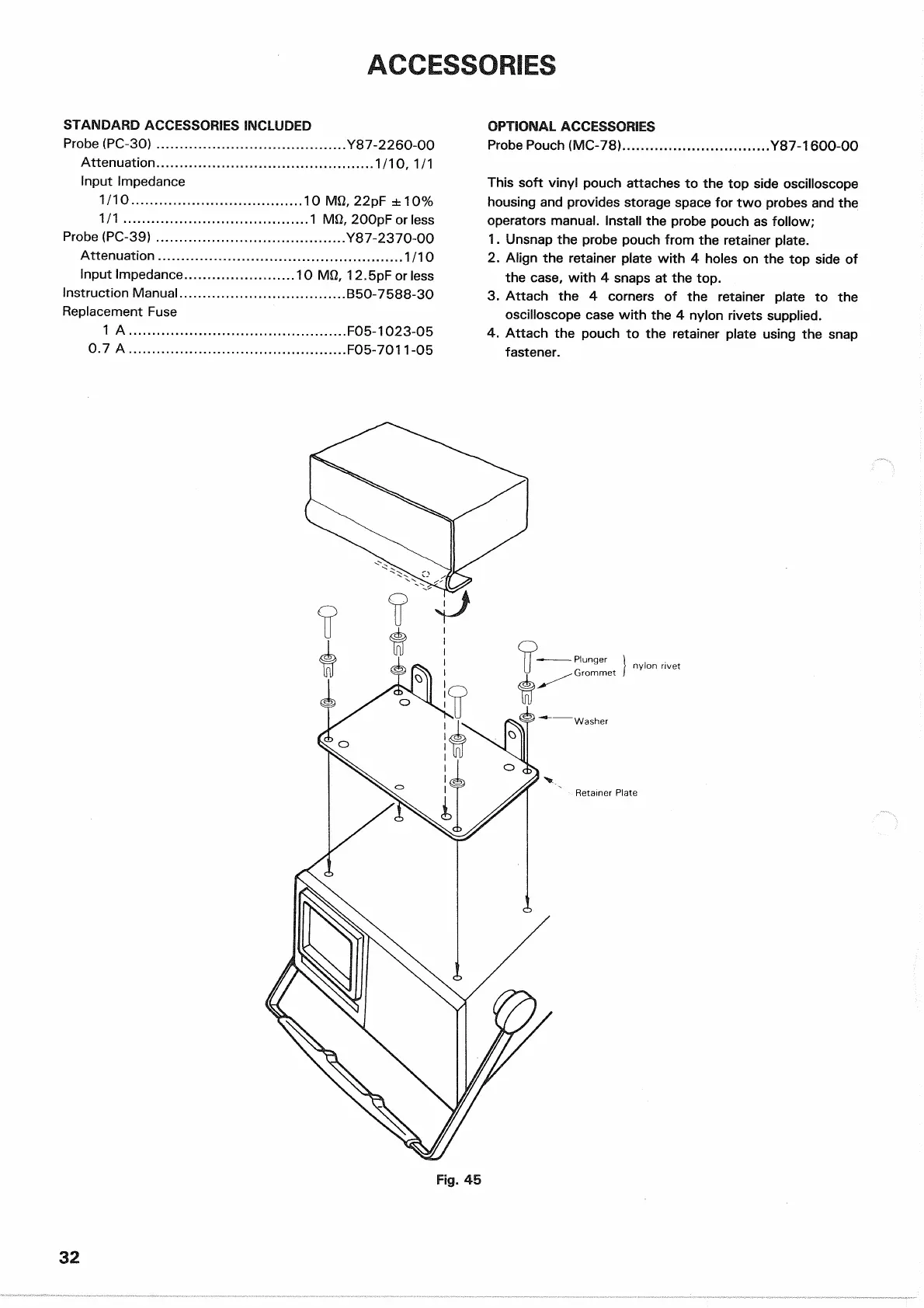

Fig. 45
