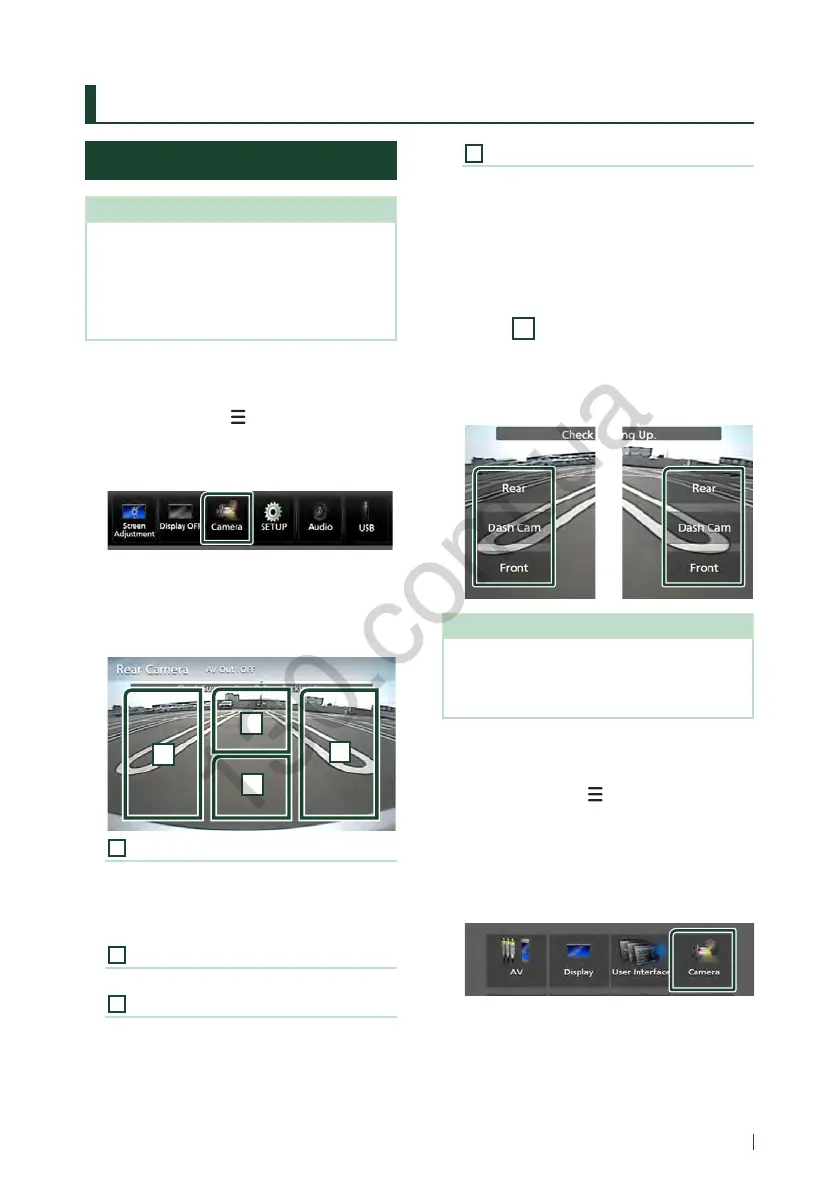

Other External Components
View Camera
NOTE
• To connect a camera, see P.99.
• To use a rear view camera, a REVERSE lead
connection is required. (P.97)
• If [Rear Camera Interruption] is active the
camera screen is displayed when you shift the
gear to the reverse (R) position.
Ñ Display the camera screen
1
Press the [MENU]/[ ] button.
Popup menu appears.
2
Touch [Camera].
View camera screen appears.
3
Adjust each item as follows.
To erase the caution message, touch the
screen.
2
3
4
1
1
Switching the View Camera *
1
Touch to display the camera switching keys.
It is necessary to set “Camera Assignment
Settings” beforehand. See To switch the view
camera (P.69).
2
Camera off
Touch to exit the camera screen.
3
Switching the Guideline *
2
Touching each time turns on or off the
guideline.
4
Switching the Angle *
2
Touching each time changes camera angles.
*1 When two or more cameras of rear, front, left,
and right are connected with this unit.
*2 When CMOS-3xx series is connected with
this unit.
To switch the view camera
1
Touch [
1
].
Camera switching keys appear left/right
side.
2
Select a view camera you want to switch.
NOTE
• To switch to the picture other than selectable
view camera from the camera switching keys,
change the key function of except “Rear” in
[Camera Assignment Settings]. (P.70)
Ñ Camera Setup
1
Press the [MENU]/[ ] button.
Popup menu appears.
2
Touch [SETUP].
SETUP Menu screen appears.
3
Touch [Camera].
Camera screen appears.
