Kenwood DNX7190DABS User Manual

Connection/Installation
94
• Do not press hard on the panel surface when
installing the unit to the vehicle. Otherwise
scars, damage, or failure may result.
• Reception may drop if there are metal objects
near the Bluetooth antenna.
Bluetooth antenna unit

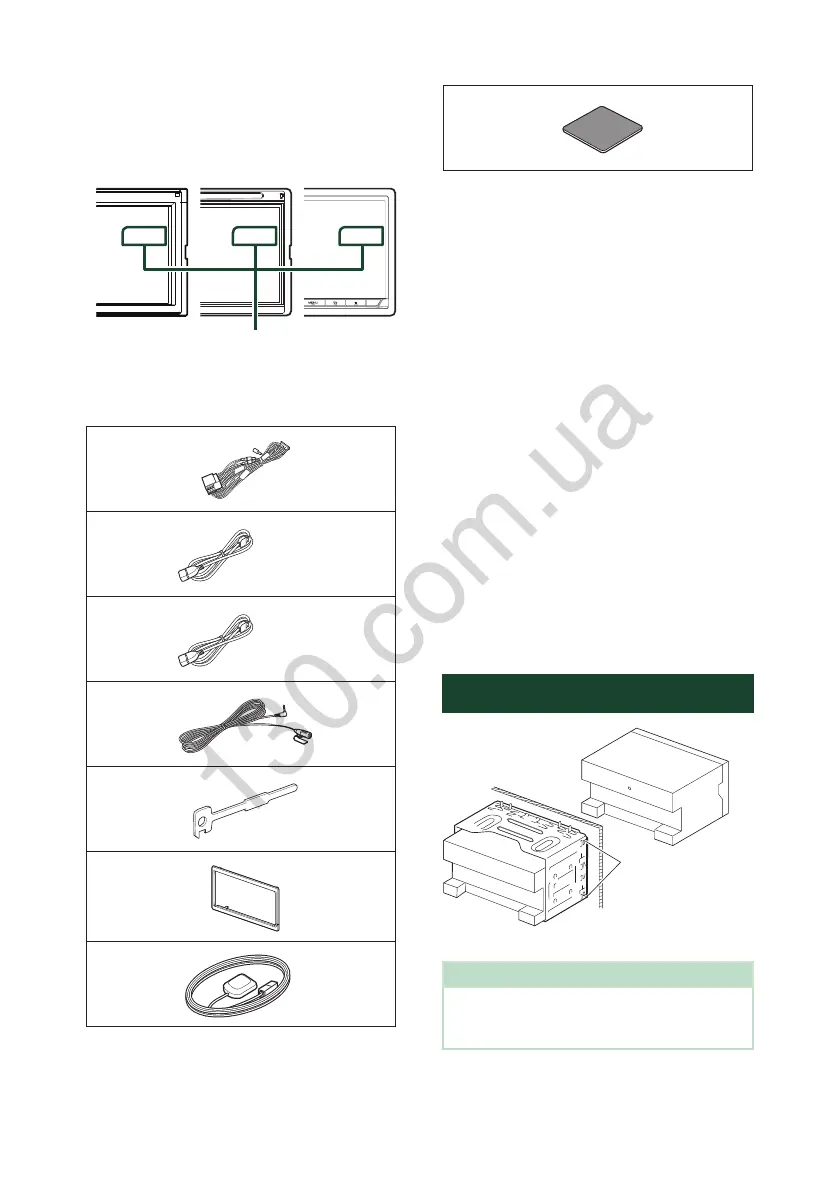

Ñ Supplied accessories for
installation
1
x1
2
[1]
(Black 1 m)
x1
3
[2]
(Gray 1 m)
x1
4
(3 m)
x1
5
x2
6
x1
7
(3.5 m)
x1
8
x1
[1]
Except DNR3190BTS
[2]
DNX9190DABS / DNX7190DABS /
DNX5190DABS only
Ñ Installation procedure
1) To prevent a short circuit, remove the key
from the ignition and disconnect the ¤
terminal of the battery.
2) Make the proper input and output wire
connections for each unit.
3) Connect the wire on the wiring harness.
4) Take Connector B on the wiring harness and
connect it to the speaker connector in your
vehicle.
5) Take Connector A on the wiring harness and
connect it to the external power connector
on your vehicle.
6) Connect the wiring harness connector to the
unit.
7) Install the unit in your car.
8) Reconnect the ¤ terminal of the battery.
9) Perform the Initial Setup.
See Initial setup (P.10).
Installing the unit
Bend the tabs of the
mounting sleeve with
a screwdriver or similar
utensil and attach it
in place.
NOTE
• Make sure that the unit is installed securely in
place. If the unit is unstable, it may malfunction
(eg, the sound may skip).
