Kenwood TK-3170 User Manual

TK-3170/3173
21

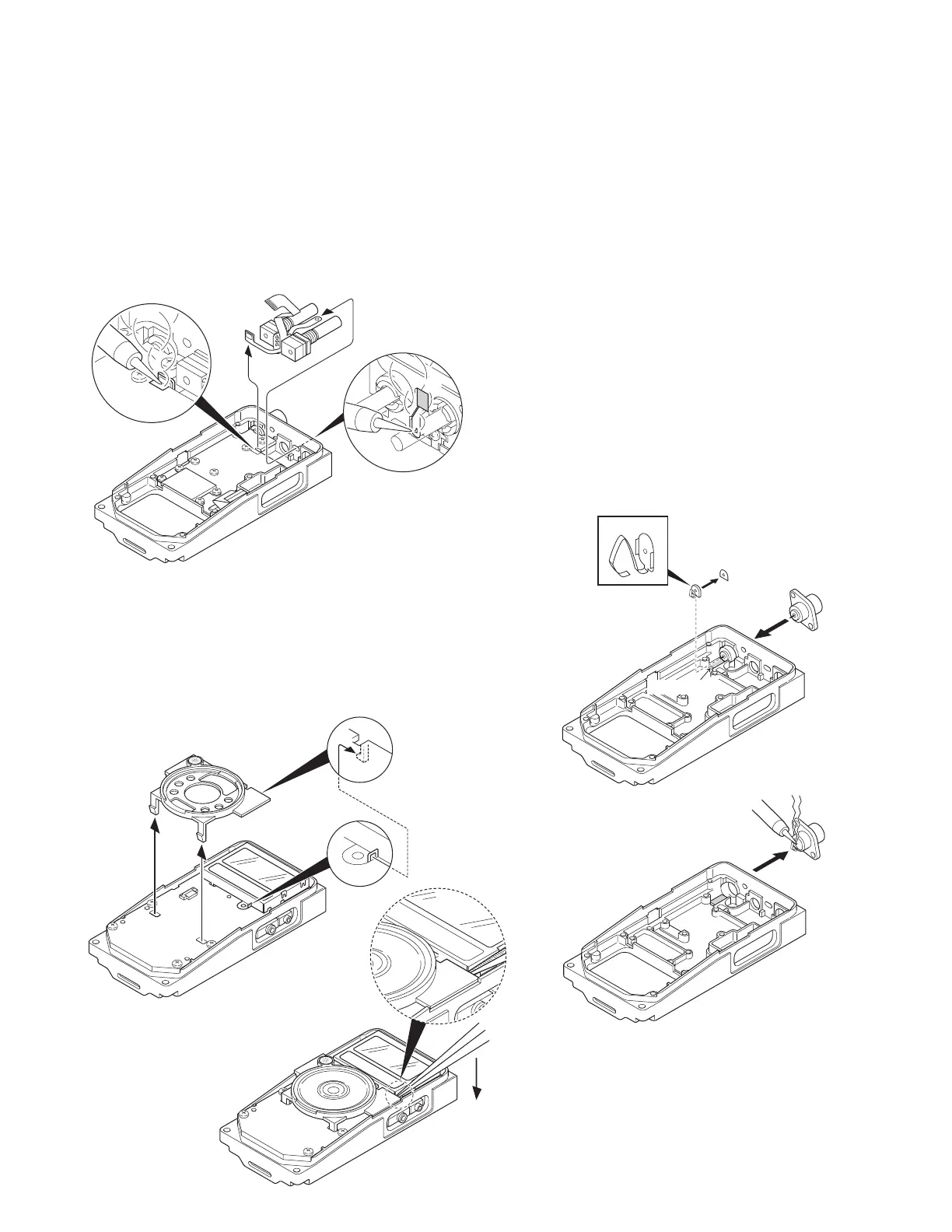

3. How to Assemble the Antenna Connec-
tor and its Terminal
The antenna connector and its terminal are supplied as
separate parts.
When replacing the antenna connector and/ or terminal,
assemble the parts prior to the replacement.
1) Mount the antenna connector onto the chassis ( q ).
Double-sided tape is attached to the terminal; peel off the
tape cover ( w ).
Attach the terminal to the antenna connector as shown
below.
Slide the antenna terminal along the adhesive cushion on
the chassis so that the adhesive part on the terminal is
firmly attached to the antenna connector ( e ).
2) Remove the antenna connector from the chassis with its
terminal attached, then solder the center part of antenna
connector to its terminal ( r ).
Do not use excessive solder on terminal.
DISASSEMBLY FOR REPAIR
1. Removing the FPC
1) Remove the solder from the TX-RX unit using a solder iron
( q ).
2) Peel the double-sided tape ( w ).
3) Remove the solder from the battery terminal block using
the solder iron ( e ).
Note : You must replace the FPC and the double-sided tape
(4 x 7 mm) when replacing the volume or the selector.
2. Separating the Speaker Holder from
the Control Unit
1) As in shown in the figure below, the speaker holder is at-
tached to the LCD cover with tab ( q ).
Use a pair of tweezers or similar instrument to lift the
speaker holder away from the control unit ( w ).
e
q
w
q
w
TOP
Bottom
Cushion
q
w
e
r

Kenwood TK-3170 Specifications

General Specifications

frequency range	450~490MHz (K, K4) 440~480MHz (M) 400~430MHz (K3, K6, M3)
number of channels	Max. 128 per radio
zone channels	Max. 128 per zone
trunking GID	Max. 250 per zone
channel spacing (wide)	25kHz
channel spacing (narrow)	12.5kHz
battery voltage	7.5V DC ± 20%
operating temperature range	–22°F~+140°F (–30°C~+60°C)
frequency stability	± 0.00025% (–22°F~+140°F)
antenna impedance	50Ω
channel frequency spread (K,K4,M)	40MHz
channel frequency spread (K3,K6,M3)	30MHz

Battery Life

KNB-24L (1400mAh)	9 hours
KNB-25A (1200mAh)	8 hours
KNB-26N (2000mAh)	12 hours
KNB-35L (1950mAh)	11 hours

Receiver

sensitivity (wide)	0.25µV
sensitivity (narrow)	0.28µV
selectivity (wide)	70dB
selectivity (narrow)	65dB
intermodulation distortion (wide)	65dB
intermodulation distortion (narrow)	60dB
spurious response	65dB
audio output	500mW with less than 10% distortion

Transmitter

RF power output (HI)	4W
RF power output (LO)	1W
spurious response	70dB
modulation (wide)	16K0F3E
modulation (narrow)	11K0F3E
FM hum & noise (wide)	45dB
FM hum & noise (narrow)	43dB
audio distortion	Less than 5%

Weight and Dimensions

dimensions with KNB-24L or 35L battery	2-7/32 x 4-9/32 x 1-1/4 in. (56 x 109 x 31.7 mm)
dimensions with KNB-25A or 26N battery	2-7/32 x 4-9/32 x 1-1/2 in. (56 x 109 x 37.9 mm)
weight (net)	12.0 oz. (340 g) with battery, antenna, and beltclip
