TK-3170/3173
26
CIRCUIT DESCRIPTION
5-3. Low Battery Warning
The battery voltage is monitored by the microprocessor
(IC7 pin 123 : BATTLVL). When the battery voltage falls be-
low the voltage set by the Low Battery Warning adjustment
during the transmission, the red LED blinks to notify the op-
erator that it is time to replace the battery (When the “On
TX” option (default setting) under the Battery Warning / sta-
tus function in the FPU is selected.). If the battery voltage
falls below 5.9V, the transceiver does not transmit and the
warning tone beeps while the PTT switch is pressed.

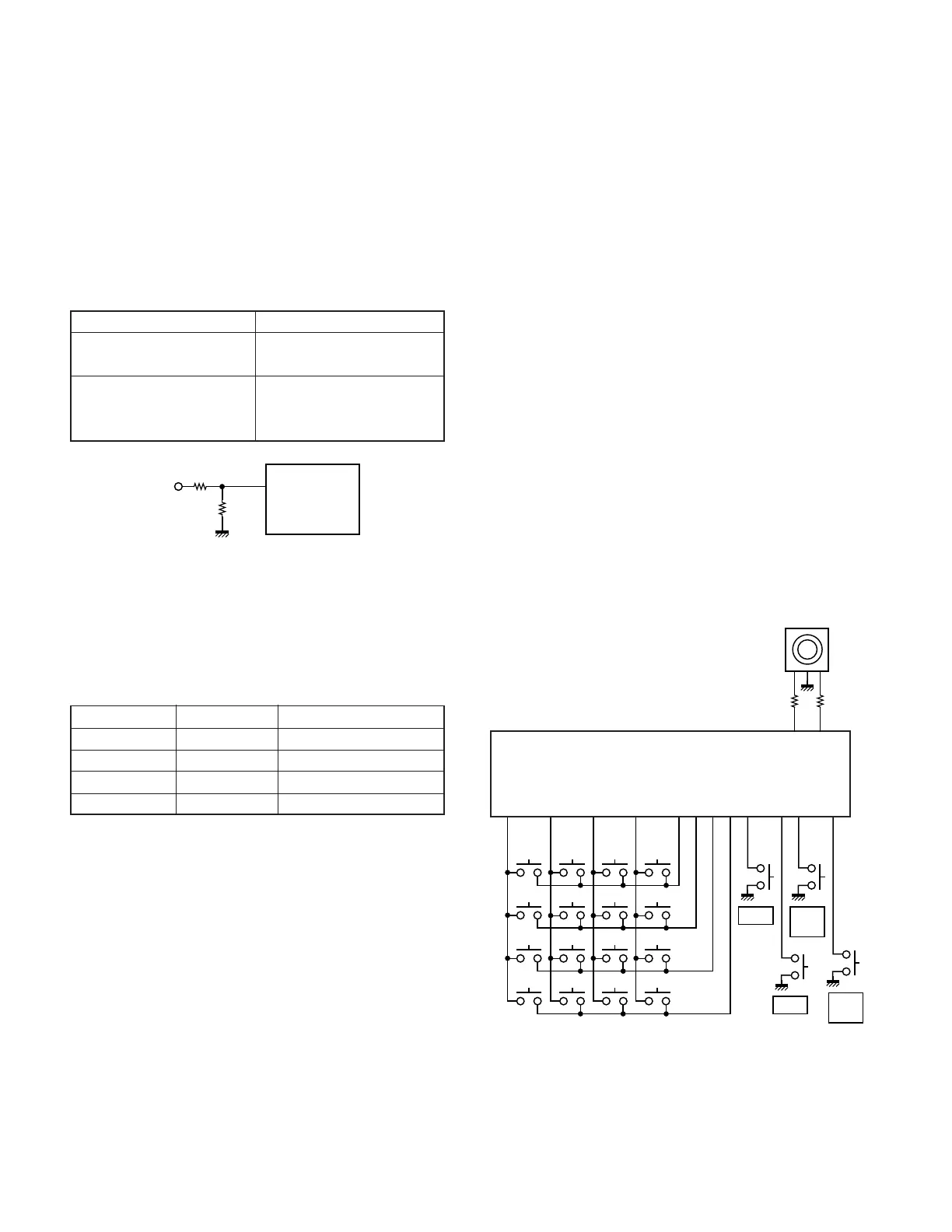

Low battery warning Battery status
The red LED blinks during The battery voltage is low but
the transmission. the transceiver is still usable.
The red LED blinks and The battery voltage is low and
the warning tone beeps while the transceiver is not usable
the PTT switch is pressed. to make calls.
SB
R27
R28
IC7
CPU
123
BATTLVL
Fig. 10 Low battery warning
6. Signaling Circuit
6-1. Encode
■ Low-speed data (QT, DQT, LTR*)
Low-speed data is output from pin 30 of the CPU. The
signal passes through MOD amplifier (IC12 1/2), and goes to
the buffer amplifier (IC17 2/2). The signal is mixed with the
audio signal and goes to the VCO and TCXO (X501) modula-
tion input after passing through the D/A converter (IC16) for
BAL adjustment.
*
: LTR signaling apply TK-3173 and TK-3170 (M,M3) only.
■ High-speed data (2-tone, DTMF)
High-speed data (HSD) is output from pin 4 of the CPU.
The signal passes through a low-pass CR filter and provides a
TX HSD tone and a RX HSD tone. TX HSD deviation making
an adjustment by microprocessor is passed through the
switch (IC14) and then applied to the audio processor (IC13).
The signal is mixed with the audio signal and goes to the
VCO and TCXO. The RX HSD tone is passed a summing am-
plifier (IC18). The D/A converter (IC16) for audio control, au-
dio power amplifier and then to the speaker.
■ MSK
MSK signal is output from pin 6 of IC13. The signal passes
through the D/A converter (IC16) and is routed to the VCO.
When encoding MSK, the microphone input signal is muted.
*
0#
C
89
B
56
A
2
7
4
13
S
97
KEY1O
KEY2O
KEY3O
KEY4O
KEY1I
KEY2I
KEY3I
KEY4I
98
99
100
128
1
2
5
EN2
EN3
20
52
Selector
IC7
CPU
32
31
38
22
SIDE2
SIDE1
AUX
PTT
SW2
SW1
AUX
SW
PTT
SW
5-4. Battery Type Detection
The transceiver automatically detects the battery type,
measuring the resistance between the S-terminal and + ter-
minal on the battery pack and changes the supplied voltage
to the S-terminal as below. The microprocessor then detects
the battery type.
Resistor value Battery type Input voltage of S-terminal
1.8MΩ Li-ion 0.3~1.3V
560kΩ Ni-Cd 1.3~2.6V
220kΩ Ni-MH 2.6~5.0V
OPEN Battery case 0~0.3V
5-5. Key Input
Keys and channel selector circuit.
The signal from the keys and channel selector are directly
input to the microprocessor, as shown in Figure 11.
Fig. 11 Key input
To Next Page
