TK-3170/3173
GENERAL
Frequency range ....................................... 450~490MHz (K,K4) 440~480MHz (M) 400~430MHz (K3,K6,M3)
Number of channels .................................. Zone : Max. 128 per radio Conv. Ch : Max. 128 per zone
TK-3173 : Trunking GID : Max. 250 per zone
Channel spacing ........................................ Wide : 25kHz Narrow : 12.5kHz
Battery voltage .......................................... 7.5V DC ± 20%
Battery life (5-5-90 duty cycle)/Approx. hours
KNB-24L (1400mAh) .............................. 9
KNB-25A (1200mAh) ............................. 8
KNB-26N (2000mAh) ............................. 12
KNB-35L (1950mAh) .............................. 11
Operating temperature range.................... –22°F~+140°F (–30°C~+60°C)
Frequency stability .................................... ±0.00025% (–22°F~+140°F)
Antenna impedance .................................. 50Ω
Channel frequency spread ........................ 40MHz (K,K4,M) 30MHz (K3,K6,M3)
Dimensions (W x H x D) ............................ 2-7/32 x 4-9/32 x 1-1/4 in. (56 x 109 x 31.7 mm) with KNB-24L or 35L battery
(Projections not included) 2-7/32 x 4-9/32 x 1-1/2 in. (56 x 109 x 37.9 mm) with KNB-25A or 26N battery
Weight (net) .............................................. 12.0 oz. (340 g) with battery (KNB-35L), antenna (KRA-23) and beltclip (KBH-12)
RECEIVER (Measurements made per EIA/TIA-603)
Sensitivity (12dB SINAD) ........................... Wide : 0.25µVNarrow : 0.28µV
Selectivity .................................................. Wide : 70dB Narrow : 65dB
Intermodulation distortion ......................... Wide : 65dB Narrow : 60dB
Spurious response .................................... 65dB
Audio output (8Ω impedance) ................... 500mW with less than 10% distortion
TRANSMITTER (Measurements made per EIA/TIA-603)
RF power output ....................................... HI : 4W LO : 1W
Spurious response .................................... 70dB
Modulation ................................................ Wide : 16K0F3E Narrow : 11K0F3E
FM hum & noise ....................................... Wide : 45dB Narrow : 43dB
Audio distortion ......................................... W/N : Less than 5%
SPECIFICATIONS

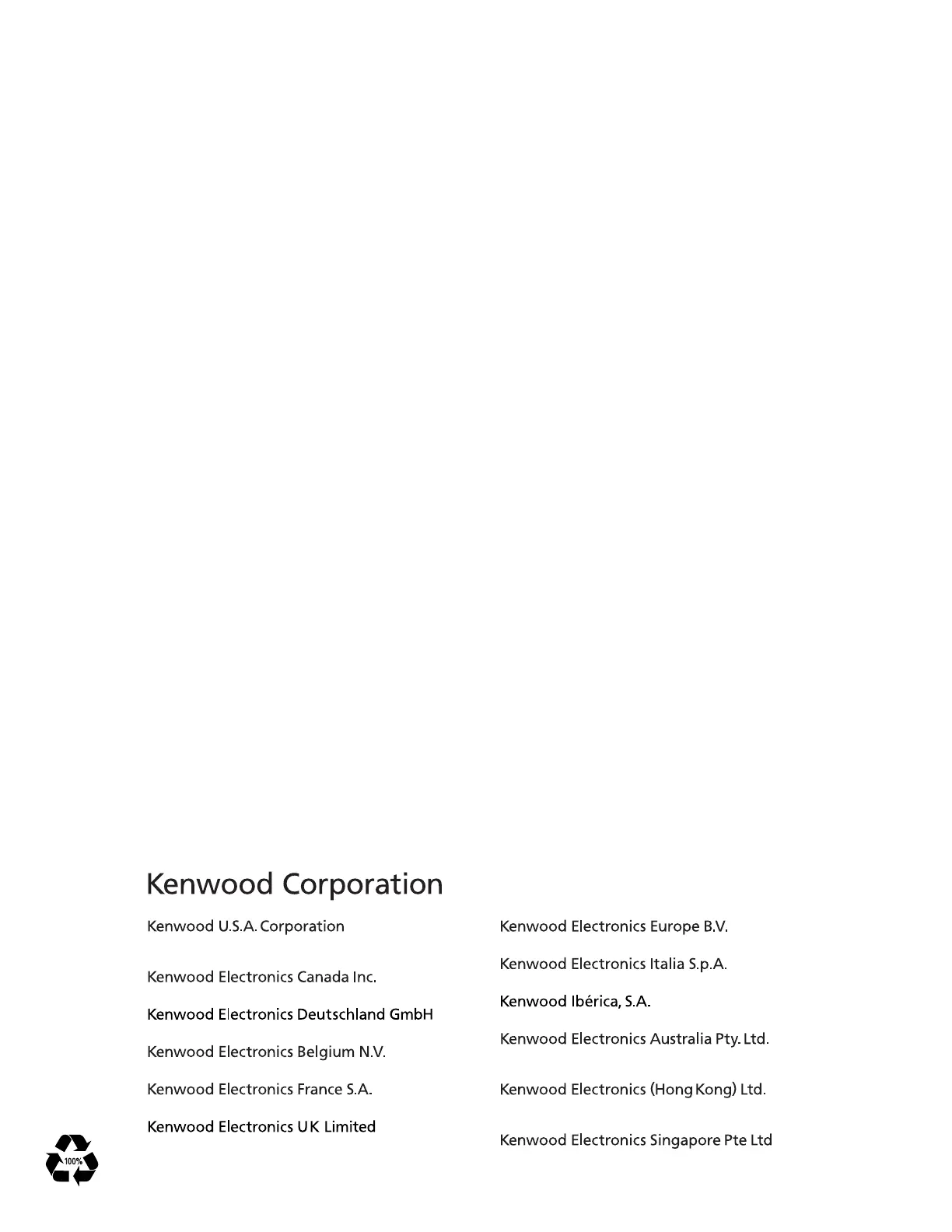

2967-3, Ishikawa-machi, Hachioji-shi, Tokyo, 192-8525 Japan
P. O. BOX 22745, 2201 East Dominguez Street, Long Beach,
6070 Kestrel Road, Mississauga, Ontario, Canada L5T 1S8
Rembrücker Str. 15, 63150 Heusenstamm, Germany
Leuvensesteenweg 248 J, 1800 Vilvoorde, Belgium
13, Boulevard Ney, 75018 Paris, France
KENWOOD House, Dwight Road, Watford, Herts.,
Amsterdamseweg 37, 1422 AC Uithoorn, The Netherlands
Via G. Sirtori, 7/9 20129 Milano, Italy
Bolivia, 239-08020 Barcelona, Spain
(A.C.N. 001 499 074)
16 Giffnock Avenue, Centrecourt Estate, North Ryde, N.S.W. 2113 Australia
Unit 3712-3724, Level 37, Tower one Metroplaza, 223 Hing Fong Road,
1 Ang Mo Kio Street 63, Singapore 569110
CA 90801-5745, U.S.A.
Kwai Fong, N.T., Hong Kong
WD18 9EB United Kingdom

Kenwood TK-3170 Specifications

General Specifications

frequency range	450~490MHz (K, K4) 440~480MHz (M) 400~430MHz (K3, K6, M3)
number of channels	Max. 128 per radio
zone channels	Max. 128 per zone
trunking GID	Max. 250 per zone
channel spacing (wide)	25kHz
channel spacing (narrow)	12.5kHz
battery voltage	7.5V DC ± 20%
operating temperature range	–22°F~+140°F (–30°C~+60°C)
frequency stability	± 0.00025% (–22°F~+140°F)
antenna impedance	50Ω
channel frequency spread (K,K4,M)	40MHz
channel frequency spread (K3,K6,M3)	30MHz

Battery Life

KNB-24L (1400mAh)	9 hours
KNB-25A (1200mAh)	8 hours
KNB-26N (2000mAh)	12 hours
KNB-35L (1950mAh)	11 hours

Receiver

sensitivity (wide)	0.25µV
sensitivity (narrow)	0.28µV
selectivity (wide)	70dB
selectivity (narrow)	65dB
intermodulation distortion (wide)	65dB
intermodulation distortion (narrow)	60dB
spurious response	65dB
audio output	500mW with less than 10% distortion

Transmitter

RF power output (HI)	4W
RF power output (LO)	1W
spurious response	70dB
modulation (wide)	16K0F3E
modulation (narrow)	11K0F3E
FM hum & noise (wide)	45dB
FM hum & noise (narrow)	43dB
audio distortion	Less than 5%

Weight and Dimensions

dimensions with KNB-24L or 35L battery	2-7/32 x 4-9/32 x 1-1/4 in. (56 x 109 x 31.7 mm)
dimensions with KNB-25A or 26N battery	2-7/32 x 4-9/32 x 1-1/2 in. (56 x 109 x 37.9 mm)
weight (net)	12.0 oz. (340 g) with battery, antenna, and beltclip
