TK-3170/3173
44

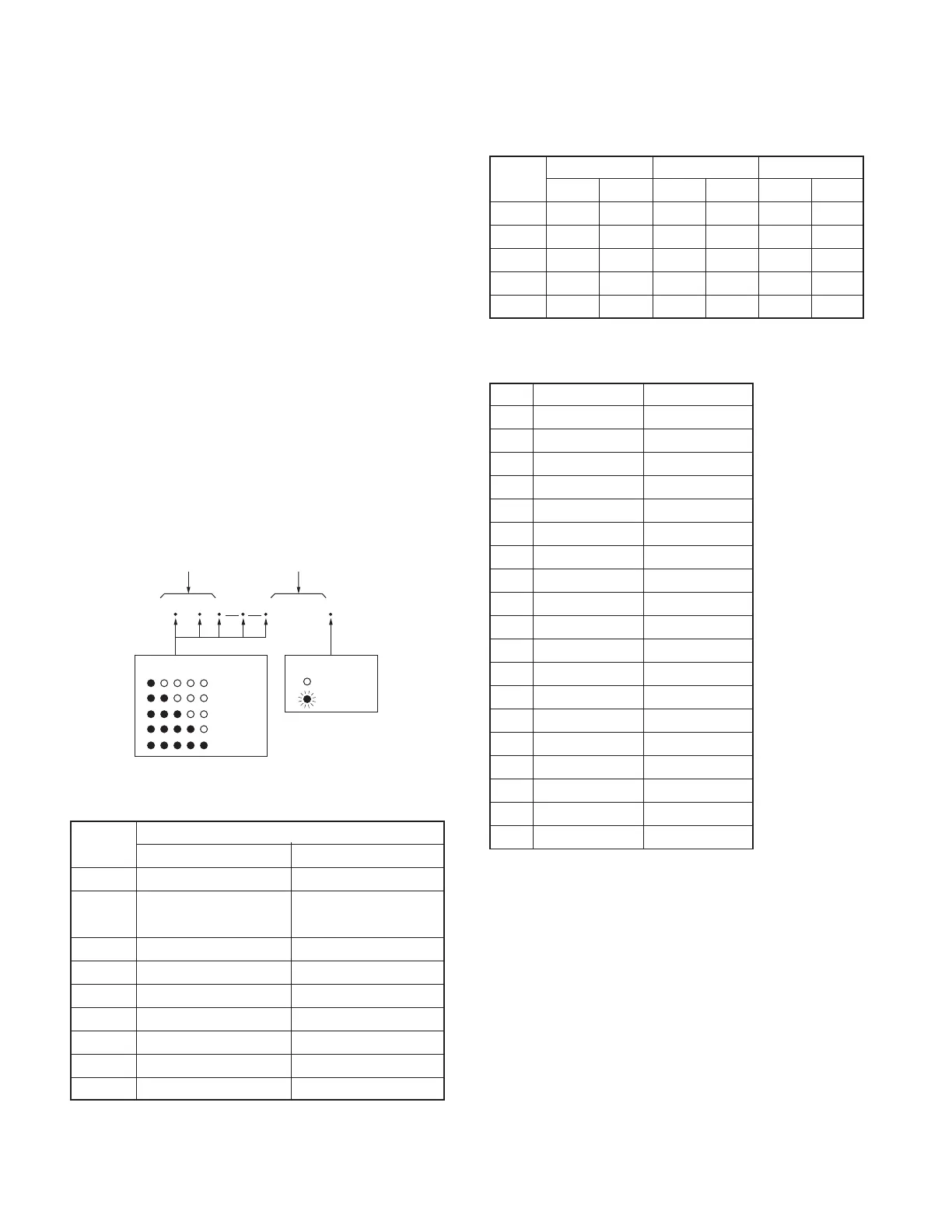

Panel Tuning Mode
■ Preparations for tuning the transceiver
Before attempting to tune the transceiver, connect the
unit to a suitable power supply.
Whenever the transmitter is turned, the unit must be con-
nected to a suitable dummy load (i.e. power meter).
The speaker output connector must be terminated with a
8Ω dummy load and connected to an AC voltmeter and an
audio distortion meter or a SINAD measurement meter at all
times during tuning.
■ Transceiver tuning
(To place transceiver in tuning mode)
Press [S] key, now in tuning mode. Use [B] key to write
tuning data through tuning modes, and [Selector] to adjust
tuning requirements (1 to 256 appeares on LCD).
Use [C] key to select the adjustment item through tuning
modes. Use [A] key to adjust 3 or 5 reference level adjust-
ments, and use [Side2] key to switch between Wide/Narrow.
Channel appears on LCD. Set channel according to tuning
requirements.
• LCD display in panel tuning mode
BAL
129
Adjustment item Adjustment value
Narrow/Wide
Wide
3 or 5 reference level
Narrow
: Low
: Low’
: Center
: High’
: High
■ 3 or 5 reference level adjustments frequency
Tuning K,K4 K3,K6,M3 M
point RX (MHz) TX (MHz) RX (MHz) TX (MHz) RX (MHz) TX (MHz)
Low 440.05000 440.10000 400.05000 400.10000 440.05000 440.10000
Low’ 452.55000 452.60000 407.55000 407.60000 452.55000 452.60000
Center 465.05000 465.10000 415.05000 415.10000 465.05000 465.10000
High’ 477.55000 477.60000 422.55000 422.60000 477.55000 477.60000
High 489.95000 489.90000 429.95000 429.90000 489.95000 489.90000
■ Adjustment item and Display
(✳✳✳ : 1~256, MSK only : 1~64)
Order Adjustment item Display
1 Frequency F R E Q_ ✳✳✳
2 High power HP WR _ ✳✳✳
3 Low power L P W R _ ✳✳✳
4 DQT balance BAL__✳✳✳
5 Max deviation DEV__✳✳✳
6 VOX 1 VX1__ ✳✳✳
7 VOX 10 V X 1 0 _ ✳✳✳
8 QT deviation QT___✳✳✳
9 DQT deviation DQT__✳✳✳
10 LTR deviation L T R _ _ ✳✳✳
11 DTMF deviation D T M F _✳✳✳
12 MSK deviation MSK___✳✳
13 Tone deviation T O N E _✳✳✳
14 Sensitivity SENS_✳✳✳
15 Squelch SQL__✳✳✳
16 Low RSSI LRSSI ✳✳✳
17 Squelch tight S Q L T _ ✳✳✳
18 High RSSI HRSSI✳✳✳
19 Battery detection BATT_✳✳✳
ADJUSTMENT
■ Key operation
Key
Function
Push Hold (1 second)
[S] End of panel tuning mode -
[A] To enter 3 or 5 reference -
level adjustments
[B] Writes the adjustment value -
[C] Go to next adjustment item Back to last adjustment item
[Selector] Adjustment value up/down
[Volume] Volume level up/down
[Side1] Squelch on/off -
[Side2] Selects Narrow, Wide -
[AUX] All segment appears -

Kenwood TK-3170 Specifications

General Specifications

frequency range	450~490MHz (K, K4) 440~480MHz (M) 400~430MHz (K3, K6, M3)
number of channels	Max. 128 per radio
zone channels	Max. 128 per zone
trunking GID	Max. 250 per zone
channel spacing (wide)	25kHz
channel spacing (narrow)	12.5kHz
battery voltage	7.5V DC ± 20%
operating temperature range	–22°F~+140°F (–30°C~+60°C)
frequency stability	± 0.00025% (–22°F~+140°F)
antenna impedance	50Ω
channel frequency spread (K,K4,M)	40MHz
channel frequency spread (K3,K6,M3)	30MHz

Battery Life

KNB-24L (1400mAh)	9 hours
KNB-25A (1200mAh)	8 hours
KNB-26N (2000mAh)	12 hours
KNB-35L (1950mAh)	11 hours

Receiver

sensitivity (wide)	0.25µV
sensitivity (narrow)	0.28µV
selectivity (wide)	70dB
selectivity (narrow)	65dB
intermodulation distortion (wide)	65dB
intermodulation distortion (narrow)	60dB
spurious response	65dB
audio output	500mW with less than 10% distortion

Transmitter

RF power output (HI)	4W
RF power output (LO)	1W
spurious response	70dB
modulation (wide)	16K0F3E
modulation (narrow)	11K0F3E
FM hum & noise (wide)	45dB
FM hum & noise (narrow)	43dB
audio distortion	Less than 5%

Weight and Dimensions

dimensions with KNB-24L or 35L battery	2-7/32 x 4-9/32 x 1-1/4 in. (56 x 109 x 31.7 mm)
dimensions with KNB-25A or 26N battery	2-7/32 x 4-9/32 x 1-1/2 in. (56 x 109 x 37.9 mm)
weight (net)	12.0 oz. (340 g) with battery, antenna, and beltclip
