5-11 OPERATION
704O513C704O512C

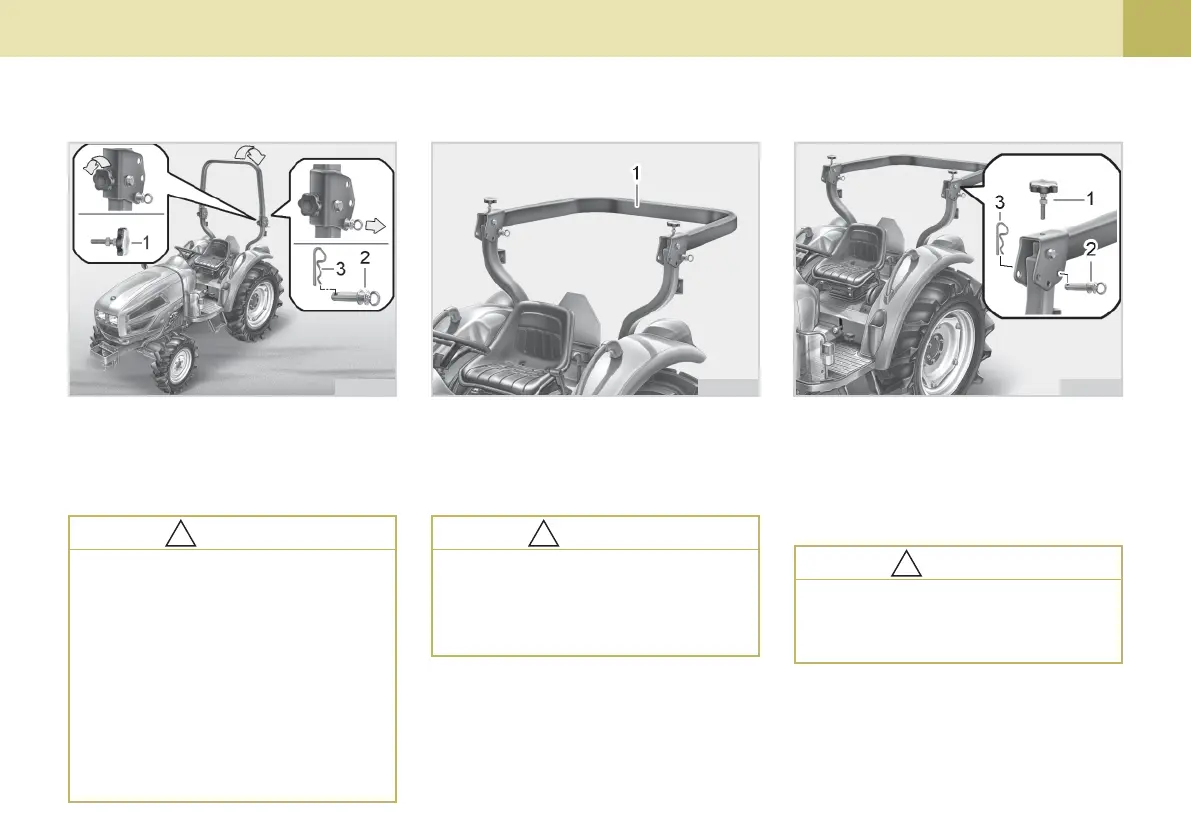

OPERATING ROPS
(1) Grip Bolt (2) Set Pin
(3) Snap Pin
(1) ROPS
1. Remove the grip bolt, snap pin and
set pin.
2. Fold the ROPS.
TO FOLD THE ROPS
OPERATING THE TRACTOR
zz
zz
z You should always stop the
engine, remove the key and set
the parking brake before raising
or folding the ROPS.
zz
zz
z Always perform such tasks from
a safe and stable position at the
rear of the tractor.
zz
zz
z Folding the ROPS should only be
done when absolutely necessary,
and should be returned to the up-
right position as soon as possible.
!!
!!
!
CAUTION
To avoid personal injury:
zz
zz
z Hold the ROPS tightly with both
hands and fold the ROPS slowly
and carefully.
!!
!!
!
CAUTION
704O514C
3. Align pin holes, insert set pin, and
secure them with the snap pin.
To avoid personal injury:
zz
zz
z Make sure the pins are properly
installed and secured.
(1) Grip Bolt (2) Set Pin
(3) Snap Pin
!!
!!
!
CAUTION
