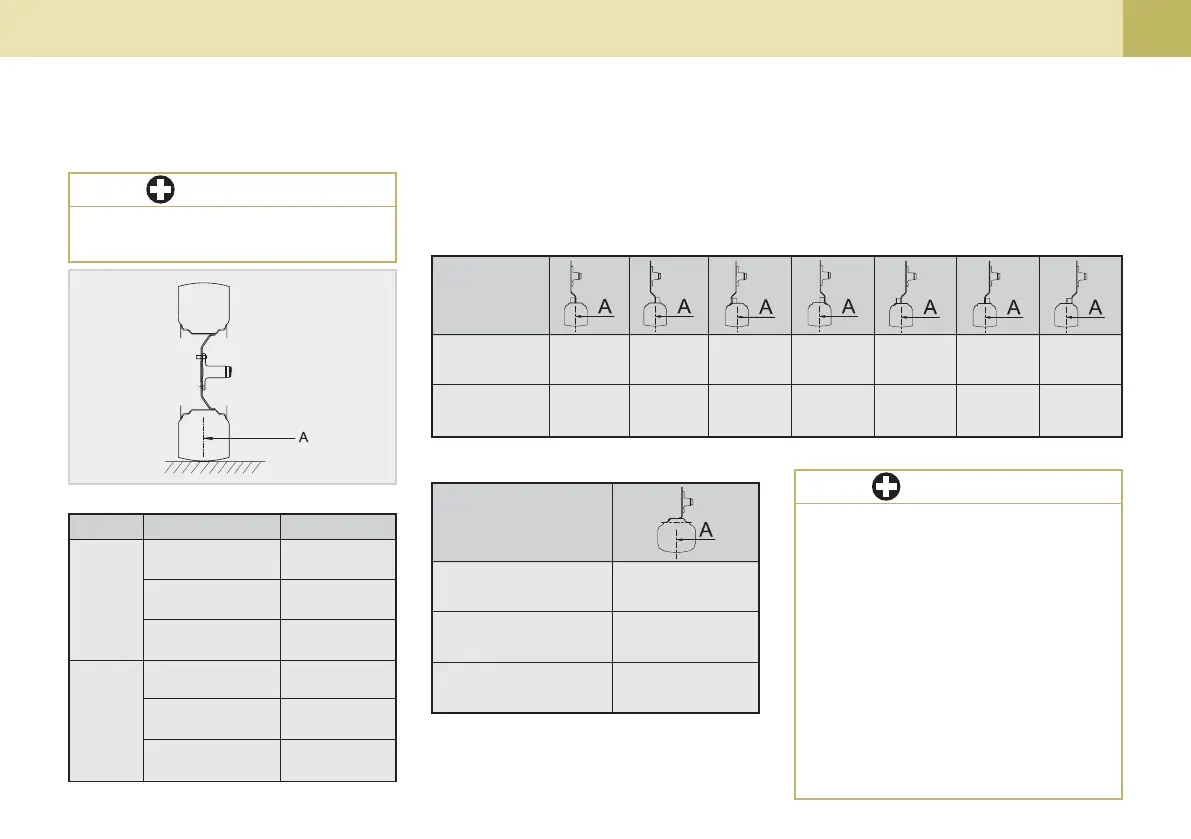

8-3TIRES, TREAD AND BALLAST
Front tread can not be adjusted.
TREAD
zz
zz
z Do not turn front discs to obtain
wider tread.
Rear wheel tread width can be adjusted as shown with the standard equipment
tires. To change the tread width.
1. Remove the wheel rim and the disk mounting bolts.
2. Change the position of the rim and disk to the desired position, and then tighten
the bolts.
zz
zz
z Always attach tires as shown in
the drawings.
zz
zz
z If not attached as illustrated, trans-
mission parts may be damaged.
zz
zz
z When re-fitting or adjusting a
wheel, tighten the bolts to the fol-
lowing torques then recheck af-
ter driving the tractor 200 m (218
yards) and thereafter according to
service interval.
Torques : 226 N·m (23 kgf·m, 166
lbf·ft)
(A) Tread
* IND… for Industrial
(A) Tread
(A) Tread
CK25
9.5-24 Farm
CK30/CK35
11.2-24 Farm
Model
978mm
(38.5in.)
978mm
(38.5in.)
1,062mm
(41.8in.)
1,054mm
(41.5in.)
1,094mm
(43.1in.)
1,102mm
(43.4in.)
1,178mm
(46.4in.)
1,170mm
(46.1in.)
1,178mm
(46.4in.)
1,186mm
(46.7in.)
1,294mm
(50.9in.)
1,302mm
(51.3in.)
--
Model
CK25
6-14
Farm
25X8.50-14
Turf
25x8.50-14
IND
7-14
Farm
27X8.50-15
Turf
25x8.50-14
IND
Tire Tread
1,107 mm
(43.6 in.)
1,147 mm
(45.2 in.)
1,146 mm
(45.1 in.)
1,105 mm
(43.5 in.)
1,126 mm
(44.3 in.)
1,146 mm
(45.1 in.)
CK30/
CK35
CK25
13.6-16 Turf
CK30/CK35
41x14.0-20 Turf
CK25/CK30/CK35
15-19.5 IND
Model
1,182mm
(46.5in.)
1,174mm
(46.2in.)
1,202mm
(47.3in.)
704O801C
IMPORTANT
IMPORTANT
FRONT WHEELS
REAR WHEELS (USE CK30 SPECIFICATIONS ONLY FOR BOTH MODELS.)
