7-2 CK25/30/35

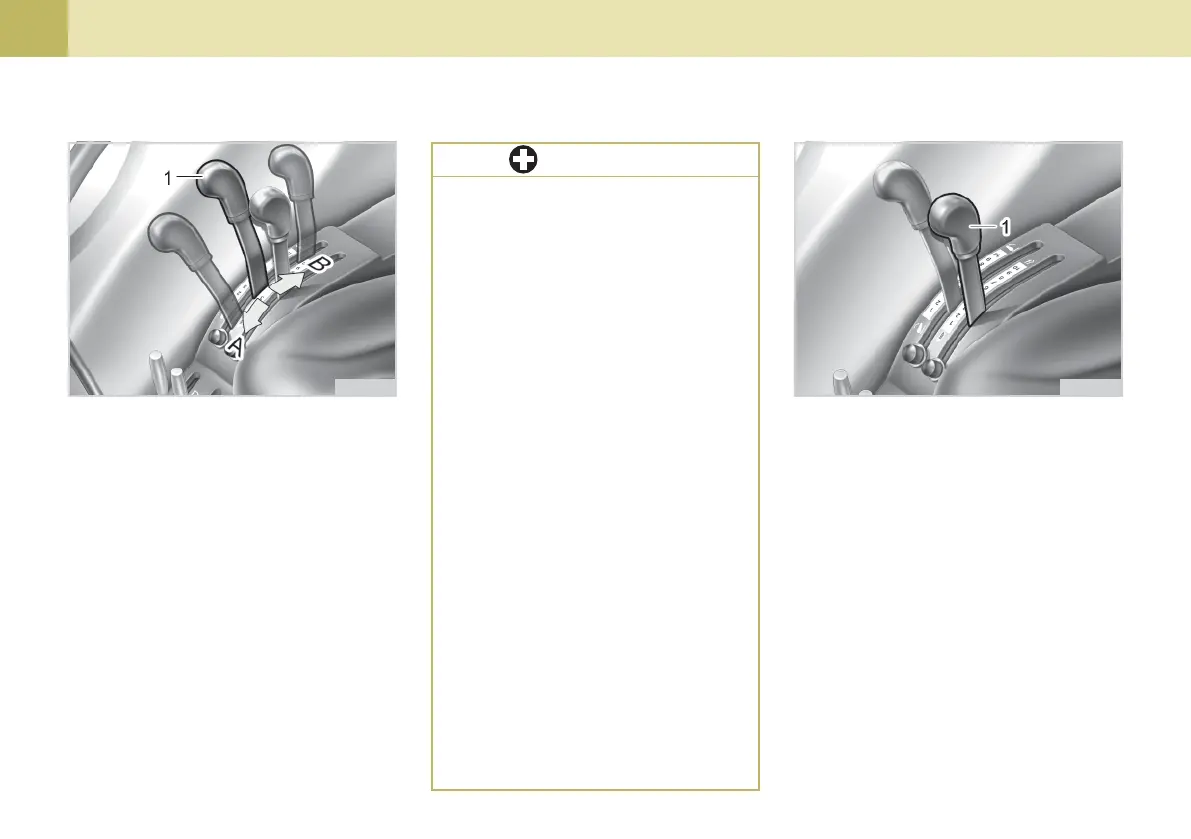

(1) Position Control Lever
(A) DOWN (B)UP
Operating the position control lever ac-
tuates the hydraulic lift arm. This con-
trols the elevation of the 3-point hitch
mounted implement.
Place the position control lever in a suit-
able position and set the implement pull
with the draft control(if equipped).
3-POINT HITCH CONTROL SYSTEM
POSITION CONTROL
DRAFT CONTROL LEVER
(USA, AU : OPTION)
(1) Draft Control Lever
This will control the pull of the 3-point
implement. As the load on the 3-point
hitch changes due to various soil
conditions, the draft control system au-
tomatically responds to these changes
by either raising or lowering the imple-
ment slightly to maintain a constant
pull.
Place the position control lever in the
lowest position and set the implement
pull with the draft control lever.
704O702C704O701C
zz
zz
z If the 3-point hitch can not be
raised by setting the hydraulic
control lever to the “UP” posi-
tion after long term storage or
when changing the transmission
oil, follow these air bleeding
procedures.
1. Stop the engine.
2. Set the hydraulic control le-
ver to the “DOWN” position
and start the engine.
3. Operate the engine at low
idle speed for at least 30 sec-
onds to bleed air from the
system.
zz
zz
z Do not operate until the engine
is warmed up. If operation is at-
tempted when the engine is still
cold, the hydraulic system may
be damaged.
zz
zz
z If noises are heard when imple-
ment is lifting after the hydrau-
lic control lever has been
activated, the hydraulic mecha-
nism is not adjusted properly.
Unless corrected the unit will be
damaged. Contact your KIOTI
dealer for adjustment.
IMPORTANT
To Next Page
