DESCRIPTION OF OPERATING SYSTEM
4

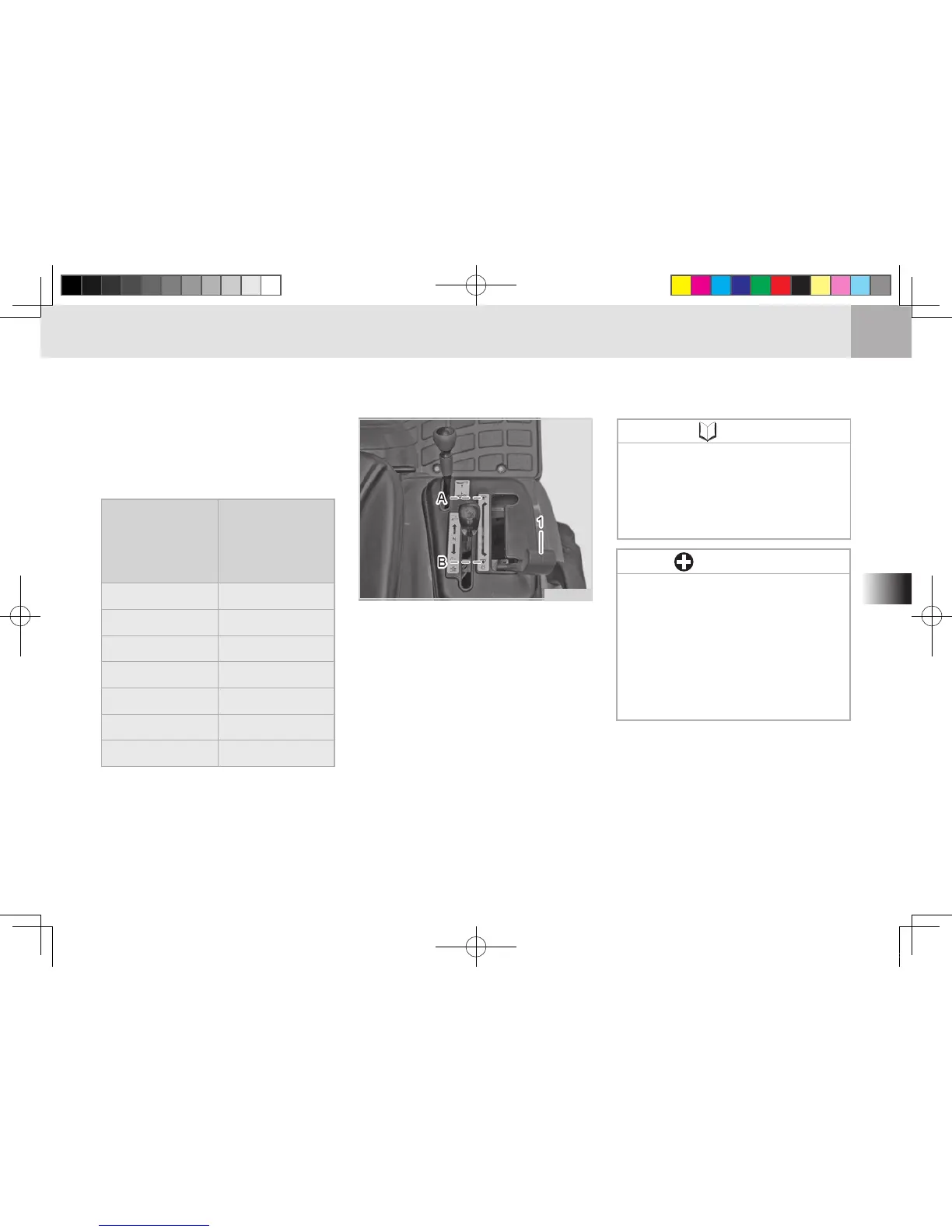

(1) PTO Clutch Lever
(A) Engage (B) Disengage
PTO CLUTCH LEVER
To connect the selected PTO, move
the PTO clutch lever to the left, front
and then to the right.
To disengage the PTO clutch, move
the lever to the left and then rear.
To engage the PTO, move the PTO
shift lever to the desired position and
PTO clutch lever to the engagement
position.

To change PTO selection, the
PTO clutch should be disen-
gaged. Also, it should be disen-
gaged when trying to start the
engine.
NOTE

Most PTO devices gives the
most effective results when in
540 ± 10 rpm. The tachometer
has a mark that indicates 540
rpm for effective PTO opera-
tion. Operating any PTO de-
vice in faster RPM can result
in poor efciency and danger.
IMPORTANT
M46O435A
Gauge wheels must be adjusted ac-
cording to the cutting height setting.
Use the following chart for gauge
wheel position.
CUTTING HEIGHT
POSITION
(On control lever)
FRONT and REAR
GAUGE WHEEL
HEIGHT
(ground to center
of wheel)
1.0”
66 mm (2.60 in.)
1.5”
78 mm (3.07 in.)
2.0”
91 mm (3.58 in.)
2.5”
104 mm (4.09 in.)
3.0”
97 mm (3.82 in.)
3.5”
109 mm (4.29 in.)
4.0”
102 mm (4.02 in.)
