DRAIN HOSE CONNECTION
Put provided silver clamp over elbow end of drain hose. Then
push the hose onto the drain port (being sure to push all the way
on) with the hose facing underneath the dishwasher. Using pliers,
squeeze open the drain hose clamp and slide it over the elbow to
ensure the hose is attached in place. Route the hose out of the
back of the product.
NOTE:
■ If the hose is installed with the rubber elbow facing out, the
drain hose may become kinked causing slow or incomplete
draining in tight cabinet installations.
■ There may be a plastic plug in the drain port for shipping
purposes where you will connect the drain hose. Remove
this plug before installing drain hose, if present.
POWER CORD CONNECTION
NOTE: If installing a product with direct wiring, proceed to Step
25, wait to install wiring until after Step 44 when the unit has been
installed in the cabinet opening.
Select UL Listed/CSA Approved power cord for the Dishwasher.
Power Cord Ki t
Kit typically includes power cord, metallic strain relief,grommet.
(Whirlpool Part Number Cord Kit - Straight - W11365011
Cord Kit - Right Angle - W11365014)
To remove the terminal box, depress the plastic latch, slide the
box toward the left of the unit along the metal tube and rotate the
left side of the box forward. Make sure that the product wiring is
still attached within the terminal box.
Using 1/4" (6.4 mm) nut driver remove the screw holding the
terminal box cover. Remove the cover by lifting it out of the box.
Keep the cover for later use.
Install a UL Listed/CSA Approved metallic strain relief. Make
sure screw heads are facing up when tightening conduit nut.
Strain relief is provided with the power cord kit.
Suggested wire length relative to strain relief
Terminal
box
Drain Hose Location

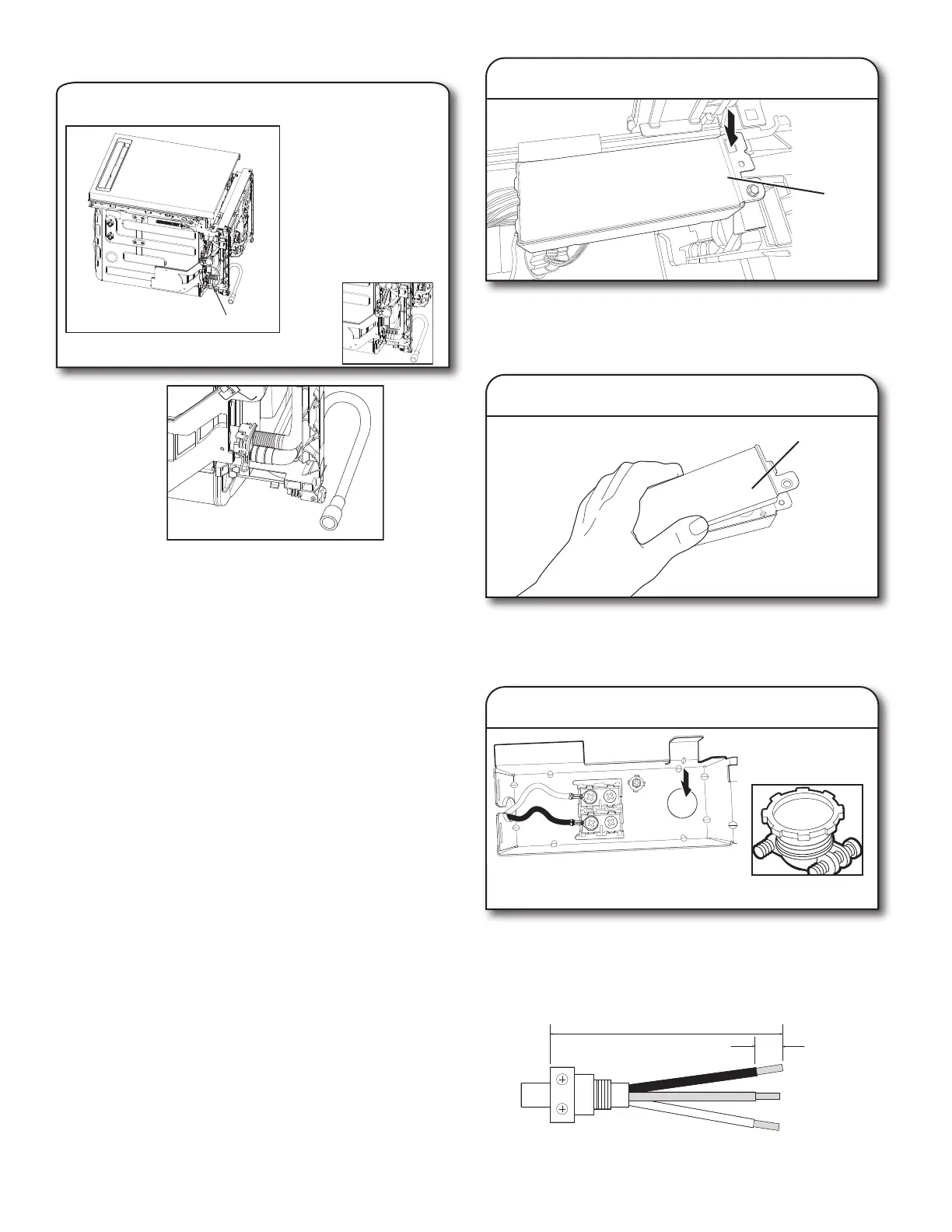

17. Connect drain hose
18. Remove terminal box
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
WARNING
19. Remove terminal box cover
Terminal
box cover
20. Install strain relief
4
1
/2"
(114.3 mm)
0.75" - 1"
(19 mm - 25 mm)

KitchenAid KDFM404KPS Specifications

General

Style	built-in dishwashers
Color	stainless steel
Load Capacity	16
Number of Cycles	5
Cycle Selections	express wash, normal, prowash, rinse, tough
Options/Settings	extended heat dry, 4 hour delay, heated dry, hi temp wash, sani rinse
Drying Type	heated drying
Noise level	44 decibels adjusted
Control Type	touchpad
Delay Start	yes
Load Sensor	yes
Number of Racks	3
Cycle Signal	yes
Water Filter	yes
Food Disposer	no
Sanitize Settings	yes
Annual Energy Consumption	270 kilowatt hours
Voltage	120 volts
Current	15 amperes

Weight and Dimensions

Depth	24 1/2 inches
Height	33 5/8 inches
Width	23 7/8 inches
Net Weight	105 pounds
