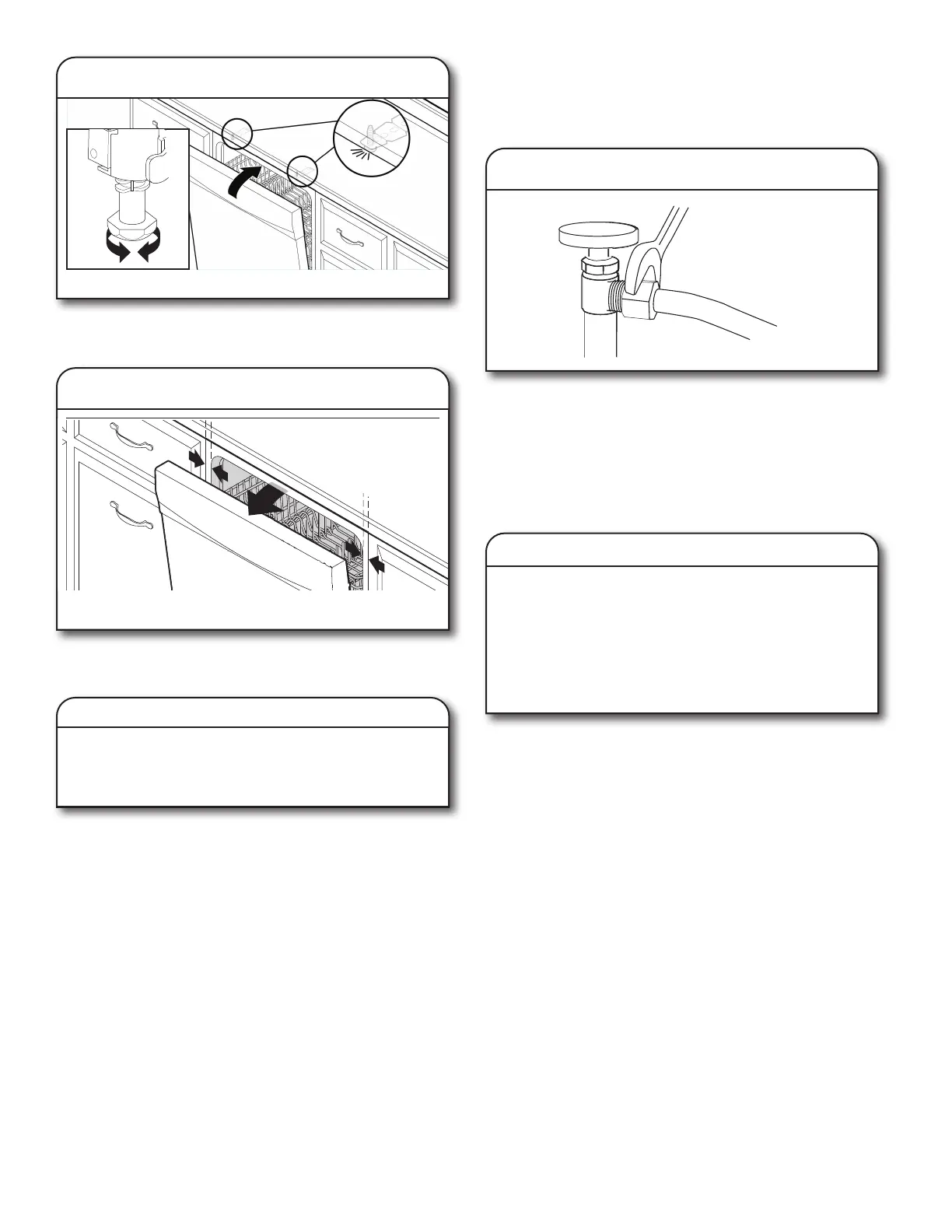

41. Check door clearance
IMPORTANT: Check that top of door does not contact screws,
brackets, or countertop. If it does, adjust leveling legs or use the
side attachment option.
42. Check inner spacing
Open door and check that space between dishwasher cabinet
opening and tub is equal on both sides. If spacing is not equal,
loosen bracket screws and shift tub. Tighten bracket screws.
43. Direct Wire Connection
CONNECT WATER LINE TO HOUSE
SHUT-OFF VALVE
NOTE: If using a exible braided hose, replace inlet hose after 5
years to reduce the risk of hose failure. Record hose installation
or replacement dates on the hose for future reference.
44. Attach water supply line
Attach the water supply line (copper tubing or exible braided
line) to the hot water line using a connection conguration that is
in compliance with local codes and ordinances. The water supply
to the dishwasher should have a manual shut-off valve located
under the sink. Turn water valve on after attaching water supply
line.
CONNECT DRAIN HOSE
45. Connect drain hose
IMPORTANT: The drain hose connection of the disposer or a
waste tee must be made before the drain trap and at least
20" (50.8 cm) above the oor where the dishwasher will be
installed.
Helpful Tip: To reduce vibration of the hose, keep the hose away
from the oor.
NOTE: Use the red clamp provided to connect the drain hose to
the customer connection - plumbing or garbage disposal.
Connect drain hose to waste tee or waste disposer using
one of the following options:
■ Option A: Waste disposer – no air gap
■ Option B: No waste disposer – no air gap
■ Option C: Waste disposer – with air gap
■ Option D: No waste disposer – with air gap
To complete direct wire connection. Complete Steps 18 to
24 in this installation guide.
Once complete, return here to Step 44 to complete Product
Installation.

KitchenAid KDFM404KPS Specifications

General

Style	built-in dishwashers
Color	stainless steel
Load Capacity	16
Number of Cycles	5
Cycle Selections	express wash, normal, prowash, rinse, tough
Options/Settings	extended heat dry, 4 hour delay, heated dry, hi temp wash, sani rinse
Drying Type	heated drying
Noise level	44 decibels adjusted
Control Type	touchpad
Delay Start	yes
Load Sensor	yes
Number of Racks	3
Cycle Signal	yes
Water Filter	yes
Food Disposer	no
Sanitize Settings	yes
Annual Energy Consumption	270 kilowatt hours
Voltage	120 volts
Current	15 amperes

Weight and Dimensions

Depth	24 1/2 inches
Height	33 5/8 inches
Width	23 7/8 inches
Net Weight	105 pounds
