ASSEMBLY INSTRUCTIONS
WARNING: To avoid injury, do not connect
this miter saw to a power source until it is
completely assembled and adjusted and you
have read and understood the operator’s
manual.

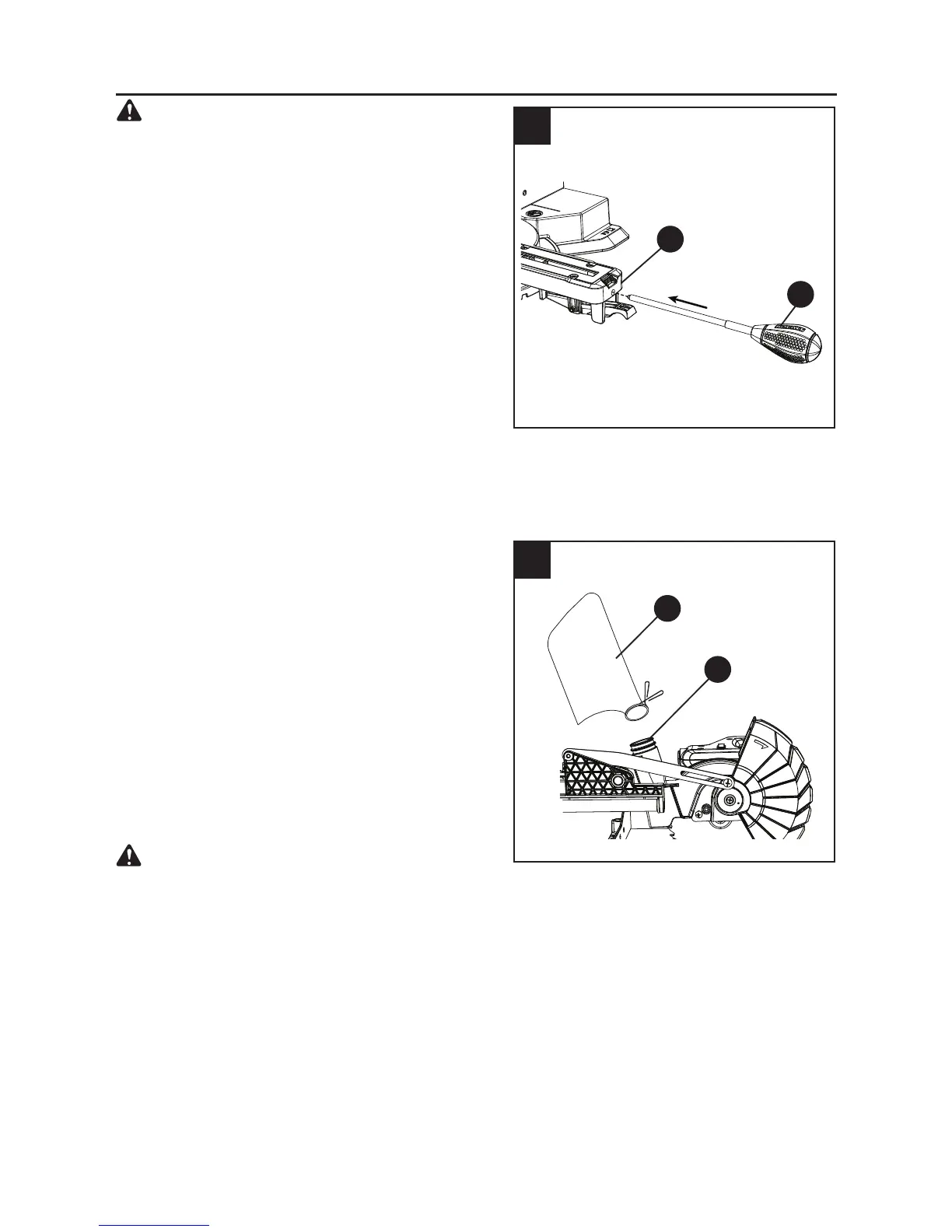

INSTALLING THE MITER HANDLE (FIG. 1)
● Thread the miter handle (E) into the hole
located at the front of the miter saw (A).
INSTALLING THE DUST BAG (FIG. 2)
● Squeeze the metal collar wings on the dust
bag (C).
● Place the dust bag neck opening around
the exhaust port on the miter saw (A) and
release the metal collar wings.
NOTE: To empty the dust bag, squeeze the
metal collar wings and remove from exhaust port.
Open zipper on underside of bag and empty into
waste container.
IMPORTANT: Check frequently and empty bag
before it gets full.
WARNING: Do not use this saw to cut and/
or sand metals. The hot chips or sparks may
ignite sawdust from the bag material.
A
E
A
C
