TP-5592 7/96 Operation 2-5
Remote Panels (Optional)

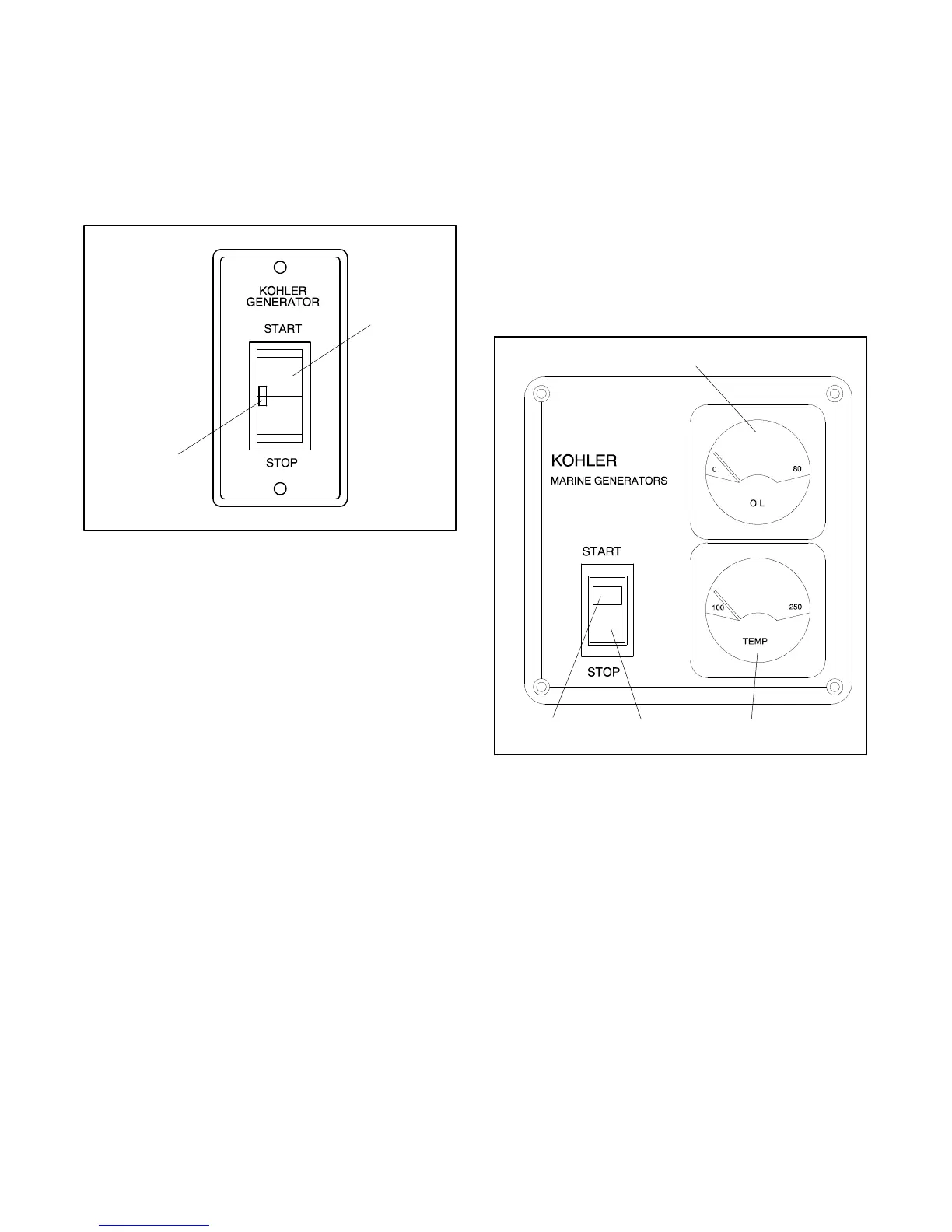

Remote Start Panel
Remote start panel allows starting/stopping from a
location remote of the generator set. Standard
generator sets have a 6-pin connector on the controller
for connecting the panel kit. See Figure 2-3.
1-656
1
2
1. ON light
2. Start/stop switch
Figure 2-3. Remote Start Panel Features
Remote Start and
Two-Meter Panel Kit
Allows starting/stopping from a location remote of the
generator set. The illuminated gauges include an
engine oil pressure gauge and a water temperature
gauge. Standardgeneratorsetshavea6-pinconnector
on the controller for connecting the panel kit. See
Figure 2-4 for remote start and two-meter panel kit.
NOTE
Remote start panels require a sender kit.
Start/Stop Switch. A rocker-type switch with ON light
starts and stops the generator set.
Engine Oil Pressure Gauge. Measures engine oil
pressure. Normal engine operating range is 40-60 psi
(276-414 kPa) for 60 Hz models. 50 Hz models may
show a slightly lower pressure range.
NOTE
During the engine break-in period, the engine
sometimes produces higher oil pressure readings.
Water Temperature Gauge. Measures engine coolant
temperature. Normal engine operating range is
170-195°F (77-91°C).
1-762
1
2
3
4
1. Engine oil pressure gauge
2. Water temperature gauge
3. Start/stop switch
4. ON light
Figure 2-4. Remote Start and
Two-Meter Panel Features
