9.5
Section 9
Disassembly
9

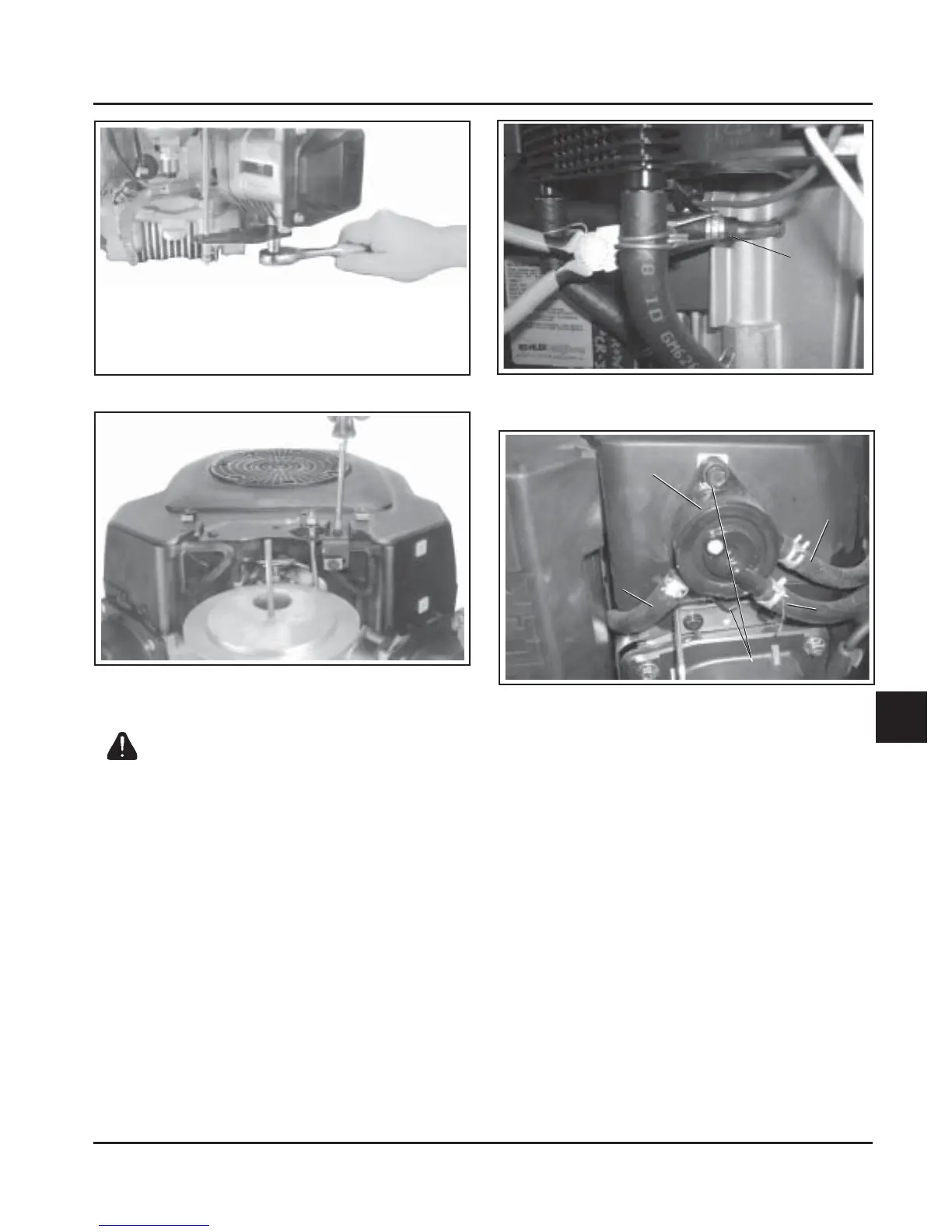

Figure 9-14. Removing Throttle Control Bracket.
Figure 9-15. Removing Control Panel.
Remove Fuel Pump
WARNING: Explosive Fuel!
Gasoline may be present in the carburetor and fuel system.
Gasoline is extremely flammable and its vapors can explode
if ignited. Keep sparks, open flames and other sources of
ignition away from the engine.
1. Disconnect the fuel lines at the carburetor and at
the in-line fuel filter.
Figure 9-17. Pulse Fuel Pump Details.
2. Disconnect the pulse (vacuum) hose from the
crankcase. See Figure 9-16.
3. Remove the two hex flange mounting screws
from the blower housing and remove the fuel
pump and lines as an assembly. See Figure 9-17.
Remove Throttle Controls
1. Remove the four hex flange screws securing the
throttle control bracket and lower air cleaner
bracket (some models), to the cylinder heads. See
Figures 9-18 and 9-19.
Fuel Pump
Outlet Hose
(To Carburetor)
Inlet Hose
Pulse
Hose
Mounting Screws
Figure 9-16. Disconnecting Pulse Line from
Crankcase.
Pulse
Hose
To Next Page
