9.17
Section 9
Disassembly
9
3.
Repeat the above procedure for the other
connecting rod and piston assembly
.
Remove Crankshaf
t
1.
Carefully pull the crankshaft from the crankcase.
See Figure 9-62.

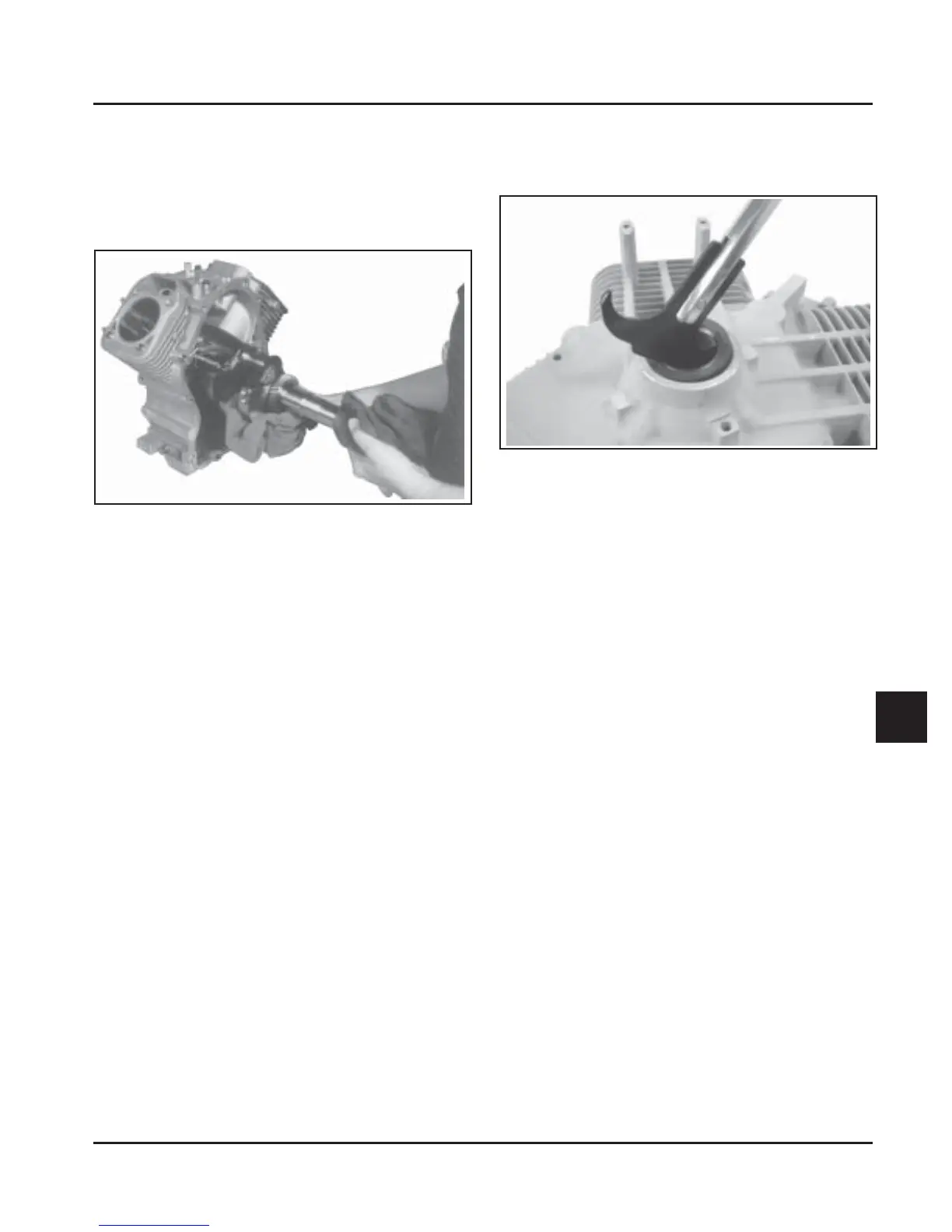

Figure 9-62. Removing Crankshaft.
Figure 9-63. Removing Oil Seal.
Remove Flywheel End Oil Seal
1.
Remove the oil seal from the crankcase. See
Figure 9-63.
172
