11.18
Section 11
Reassembly
Hex Screws

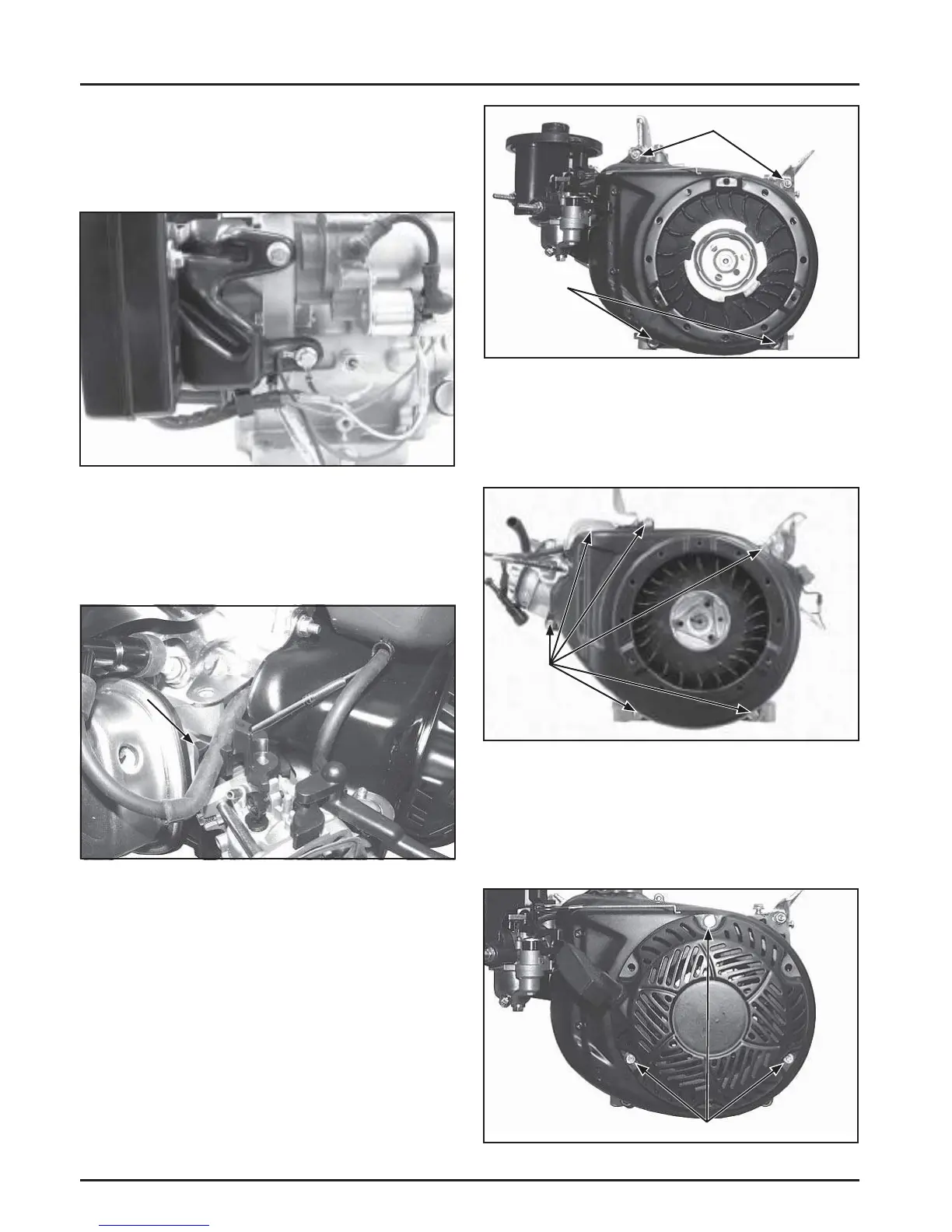

Figure 11-72. Install Blower Housing.
Install Retractable Starter
1. Install the retractable starter on the blower
housing using three hex fl ange screws. Finger
tighten the mounting screws only. See Figure
11-73.
Figure 11-70. Spark Plug Wire Routing.
CH270
2. Install the blower housing on the crankcase with
two hex fl ange nuts and two hex fl ange screws.
Torque nuts to 8 N·m (71 in. lb.) and screws to
10 N·m (89 in. lb.). See Figure 11-71.
Figure 11-71. Installing Blower Housing.
CH395, CH440
2. Install the blower housing on the crankcase with
the hex fl ange screws. Torque screws to 10 N·m
(89 in. lb.). See Figure 11-72.
Hex
Screws
3. Mount the control panel to the crankcase and
secure with two hex fl ange screws. Ensure
the ground wires are placed between the
screw and the bracket. Torque the screws to
24 N·m (212 in. lb.). See Figure 11-69.
Hex Screws
Hex Nuts
Carburetor
Insulator Clip
Figure 11-69. Mount and Torque Control Panel Hex
Flange Screws.
Install Blower Housing
1. Position the spark plug lead in the molded clip in
the carburetor insulator. See Figure 11-70.
Figure 11-73. Install Retractable Starter.
