9.15
Section 9
Disassembly
9

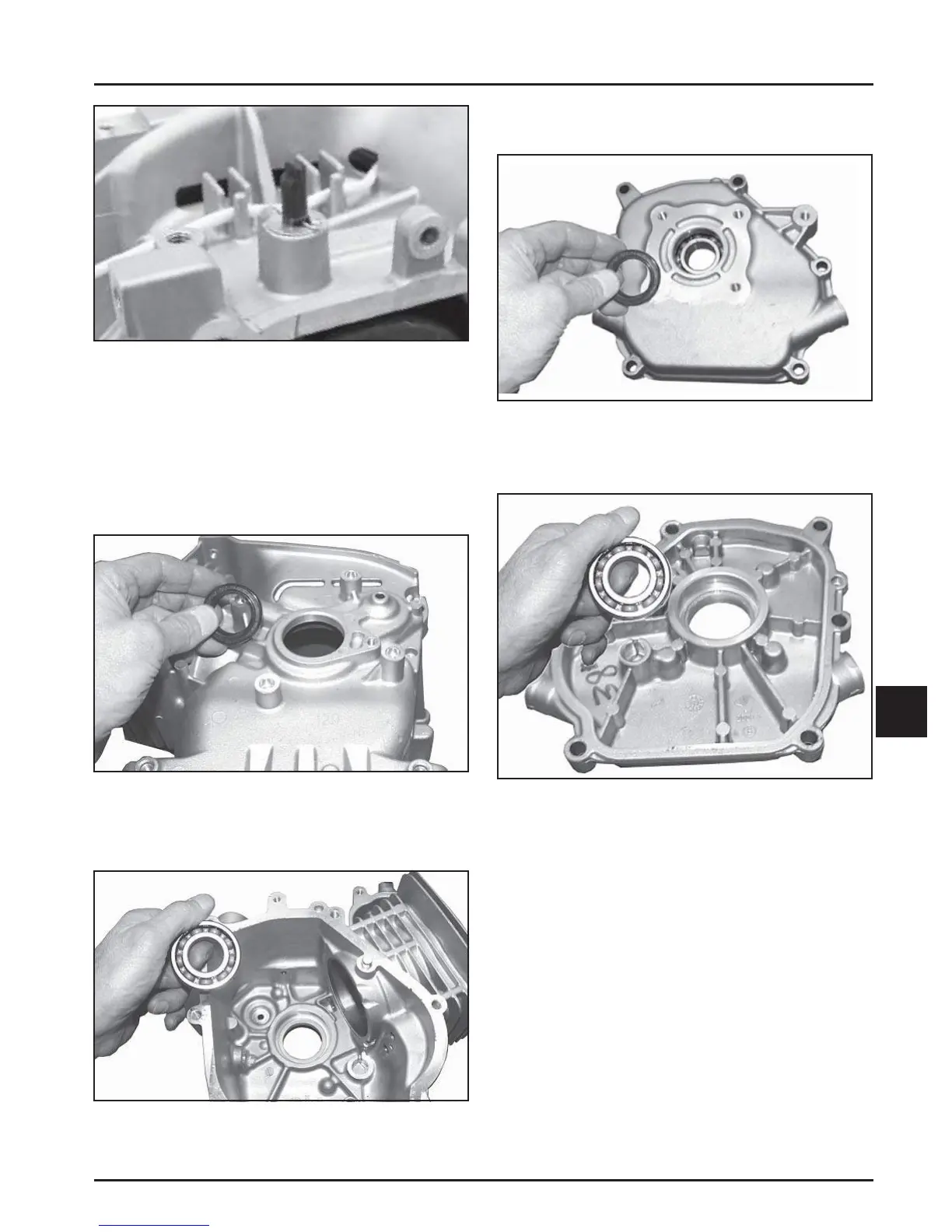

Figure 9-63. Removing Governor Cross Shaft
Hitch Pin.
4. Remove the cross sha from inside the crankcase.
Remove Crankcase and Closure Plate
Seals and Bearings
1. Remove the oil seal from the crankcase. See
Figure 9-64.
Figure 9-64. Removing Crankcase Seal.
2. Using a suitable press, push the cranksha
bearing from the crankcase. See Figure 9-65.
Figure 9-65. Removing Crankcase Crankshaft
Bearing.
3. Remove the oil seal from the closure plate. See
Figure 9-66.
Figure 9-66. Closure Plate Seal Removal.
4. Using a suitable press, push the cranksha
bearing from the closure plate. See Figure 9-67.
Figure 9-67. Closure Plate Bearing Removal.
NOTE: Inspect the bearings for signs of wear by
rotating the inner race and examine for
marring or cracks. Check to make sure the
race moves easily and is not sloppy. If the
bearing is tight and rotates smoothly, removal
is not necessary. If you feel any roughness or
cha ering or the bearing is sloppy, it should
be replaced.
